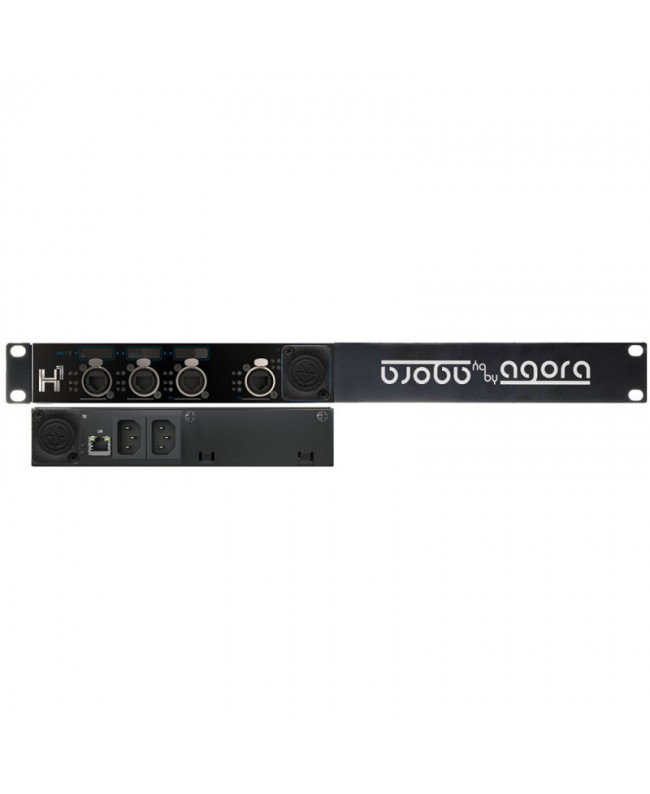

Agora H1.R

H1 and #43; redundant power supply option 10 / 16 A.

H1 is a 1U 19 and #34; half-rack hybrid platform designed for multiplexing, transporting and delivering the most common Ao. IP protocols and audio signals. It provides a multi-task platform to easily build and manage the most sophisticated networks without specific skills in IT environment. H1 can be simultaneously a standalone audio bridge and an Ao. IP LAN switch enabling the most sophisticated audio network topologies.

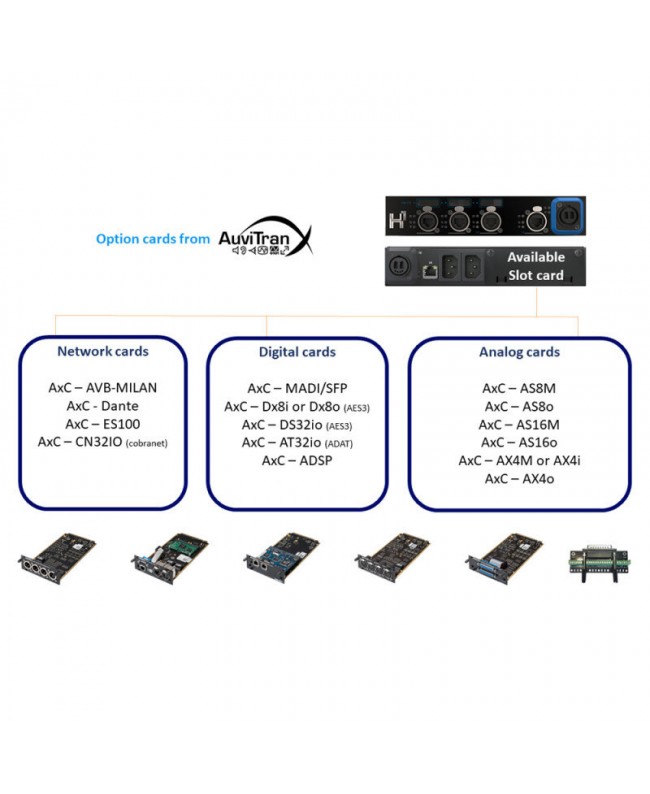

It merges in the same and #34;engine and #34; a fully manageable layer 2 / layer 3 switch and a powerful audio matrix Audinate Dante. A front panel interface and control card, a redundant 100 - 240 VAC 50/60 Hz power supply, and a rear slot that accepts all Auvitran Ax. C interface cards make this tool is a unified audio network solution. In a stand-alone application, H1 works as a two-way audio bridge between Audinate Dante and all formats supported by Auvitran Ax. C interface cards. IN an extensive application, the H1 provides the dual-service functionality of a managed network switch and an audio end-point.

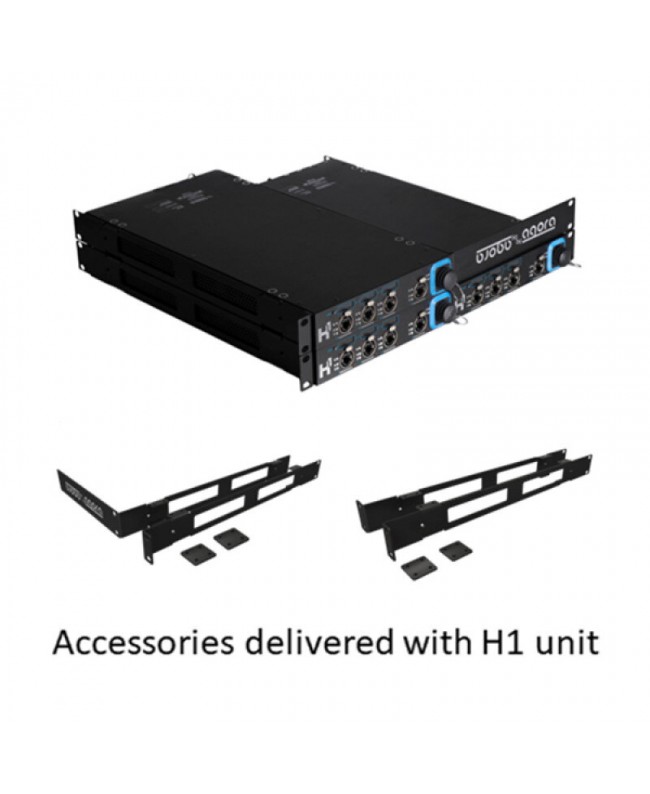

Featuring a wide range of interchangeable accessories, the H1 fits all use cases (half-rack, rack, truss clamp). AVS Monitor is the dedicated software that runs on Windows 7 to 10 in 32 and 64 bit versions.

The list below indicates the protocols currently tested and certified and may change in the future without any hardware modifications. Firmware updates will be released from the manufacturer and #039;s website.

Fixed installations: stadiums and sports facilities, museums, theme parks and entertainment venues, theatres, music and performance venues, boardrooms and corporate buildings

• Compatible protocols
• Ether. Sound
• TCP/IP remote networks
• Dante
• Artenet
• AVB-MILAN
• Main features
• 3 Completely independent and assignable 10/100/1000 Mbps ether. CON ports
• 1 Assignable 1000 Mbps ether. CON port per unit connection
• 2 Assignable 1000 Mbps optical. CON Duo ports per unit connection (option available in single-mode and multi-mode versions)
• 1 RJ45 port assignable in front panel
• 2 Internal ports connected to the Audinate Brooklyn II primary and secondary interfaces
• 99 Groups can be managed simultaneously
• ID LEDs on each user port
• Status and traffic of each port
• 1 X 128 x 128 audio channel matrix for connections between internal and external slots
• 1 LCD screen on each front panel user port
• Several network topologies available: bus, ring, star and hybrid
• Robust and modular mechanical assembly for a wide range of applications
• Areas of use
• Live and touring: live events and concerts, live broadcasts, PA, radio/television touring projects
• Broadcast and Studio: Radio and Television Studios, OB Vans, Data Centers
• Other: multimedia broadcasting
