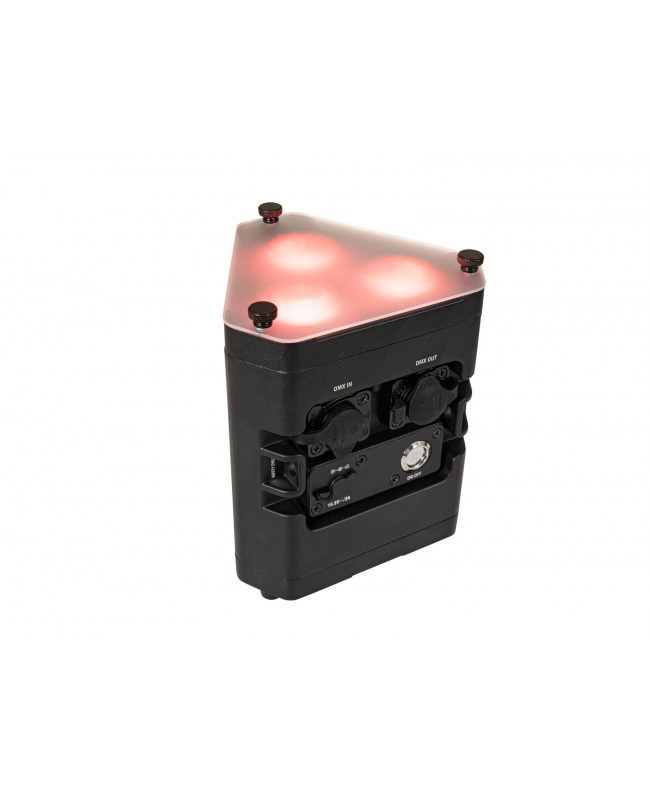

Additional frost filter provides a wide, soft and homogeneous light
Threaded inserts for suspended installation
Cordless, flexible and versatile
Battery operation up to 10h depending on program used
3 LEDs 10 W 4in1 QCL RGBW (homogenous color mix)
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; Dimmer speed (step response) with adjustable response; white balance; Energy-saving mode
Uplight effect
36 integrated show programs
Direct color selection for 15 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; master/slave function; IR remote control; DMX; CRMX by LumenRadio; W-DMX by wireless solution; RDM
Preprogrammed in Colorchief
Flicker-free
With a beam angle of 8°
OLED display
Display of the remaining battery life for the current setting
Charge status indicator
Rubber feet
Suitable for outdoor use IP65
With pressure compensation membrane
For application areas such as: Clubs/dancing school; stage; decoration; wedding/gala/events; mobile djs / entertainer; rental; advertisement/Shop window
Silent operation
Application possibility: Standing; suspended
3 buttons on the remote control for saving your own settings
Scope of delivery
1 x device
1 x user manual
1 x external mains adapter
1 x frost filter
3 x knurled screw

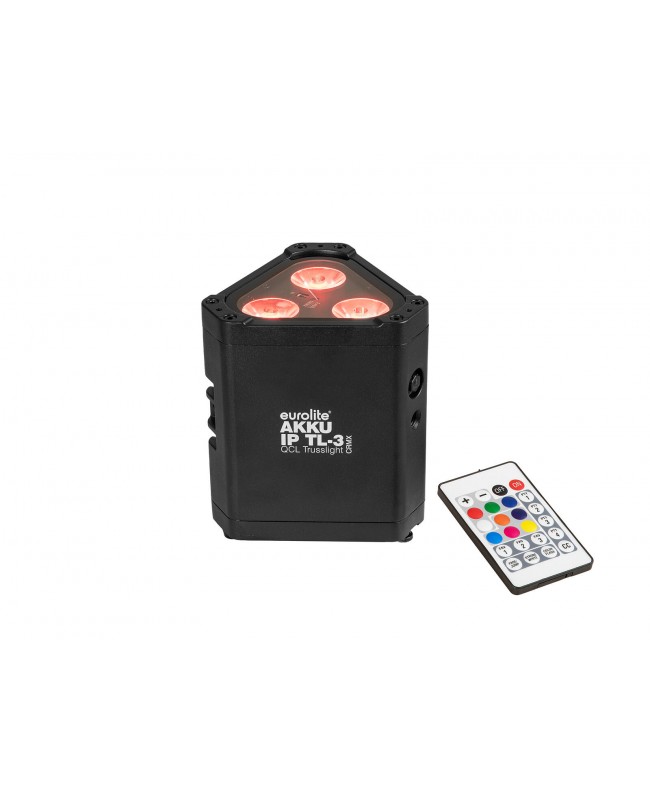

1 x remote control
1 x battery
Power supply: 100-240 V AC, 50/60 Hz, 16.8V 3150 mA
IP classification: IP65
Protection class: Protection class III
Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with Euro plug (provided), Battery/battery pack
Cable length: 1.5 m detachable
Battery pack type: 1 x lithium ion 14.8 V, 5200 mAh, 76.96 Wh
Battery pack: Battery operation up to 10h depending on program used, Recharging time 3.5h
Lamp type: LED lamp
LED type: 3 x 10 W 4in1 QCL RGBW (homogenous color mix)
Flash rate: 1 - 23 Hz
DMX channels: 3; 4; 6; 8; 11
DMX input: 3-pin XLR (M) mounting version IP
DMX output: 3-pin XLR (F) mounting version IP
Cooling: Passive convection cooling
Control: Stand-alone; master/slave function; IR remote control; DMX; CRMX by LumenRadio; W-DMX by wireless solution; RDM
Preprogrammed in: Colorchief
Projection: Flicker-free
Carrier frequency: 2.4 GHz
Beam angle: 8°
Beam angle (1/2 peak): 8°, Frost filter 20°
Beam angle (1/10 peak): 16°, Frost filter 40°
Housing color: Black
Attachment system: 2x M10 thread
Display type: OLED display
Display: Battery runtime calculation , charge status indicator
Transport aid: Rubber feet
Dimensions: Length: 13 cm, Depth: 11.5 cm, Height: 15.3 cm
Weight: 2.24 kg
Noise classification: Class 0 (no noise at all)
Battery: 1 x button cell 3.0 V CR2032 lithium manganese built-in
Special product: Not designed for household room illumination
