PROLIGHTS Smart BatPlusG2

LIGHT SOURCE

• Source: 4x20W RGB + Warm White LED
• Luminous flux: 3'102lm @full
• Lux: 1'723lx @5 m without filter
• CRI: 94 @3.200 K; 92 @5.600 K
• R9: 96 @3.200 K; 96 @5.600 K
• TLCI: 92 @5.600 K
• TM30 Rf: 93 @3.200 K; 91 @5.600 K
• TM30 Rg: 105 @3.200 K; 106 @5.600 K
• Source life expectancy: > 50.000 h

OPTICS

• Beam angle: 10°
• Additional optics: filters to achieve 20°, 40°, 60°, 10°x60°

COLOUR SYSTEM

• Colour mixing: RGBWW
• CCT: CCT control through dedicated DMX channel
• White presets: 2'800K - 10'000K
• Colour wheel: virtual colour wheel with macros
• Macros: built-in white presets

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer, colours
• Static mode: selection of static colour
• Manual mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment

BODY

• Body: sturdy die-cast aluminium body
• Body colour: RAL 9004
• Other: Quick release foot to achieve 20° adjustable tilt

CONTROL

• Protocols: CRMX+W-DMX, DMX512, RDM
• Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface

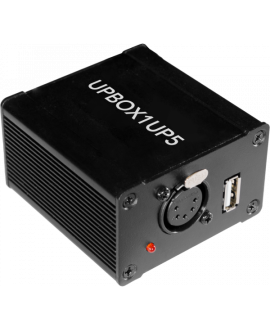

• Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
• IR: infrared sensor controlled by remote
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: 0° ~ +45°
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: (with mains) 80W
• Power factor: >0,98

BATTERY

• Battery: removible 16,8V lithium
• Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
• Re-charge connection: Battery Pack fast-charge in Case
• Re-charge time: 5h/max
• Battery status: shown on display
• Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase through the quick charger connector

PHYSICAL

• IP rating: 65 for temporary outdoor application, not for fixed installations
• Cooling: passive cooling and fan-free
• Suspension and fixing: bracket for hanging and positioning
• Signal connection: IP65 Amphenol XLR 5p IN/OUT connectors
• Power connection: IP65 Neutrik powerCON TRUE1 IN/OUT connectors
• Dimensions (WxHxD): 192x188x192mm / 7.56''x7.4''x7.56''
• Weight: 5,7kg / 12.57lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

• 1 x SMARTBATPLUSG2
• 1 x filter frame
• 1 x half top hat
• 1 x connector cover plate
• 1 x SBPG2BAT
• 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
• User Manual
