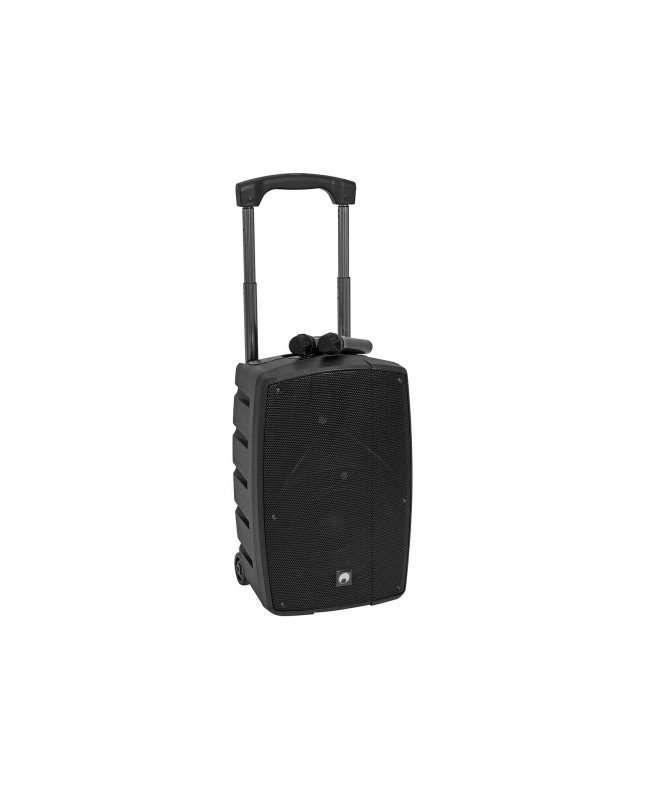

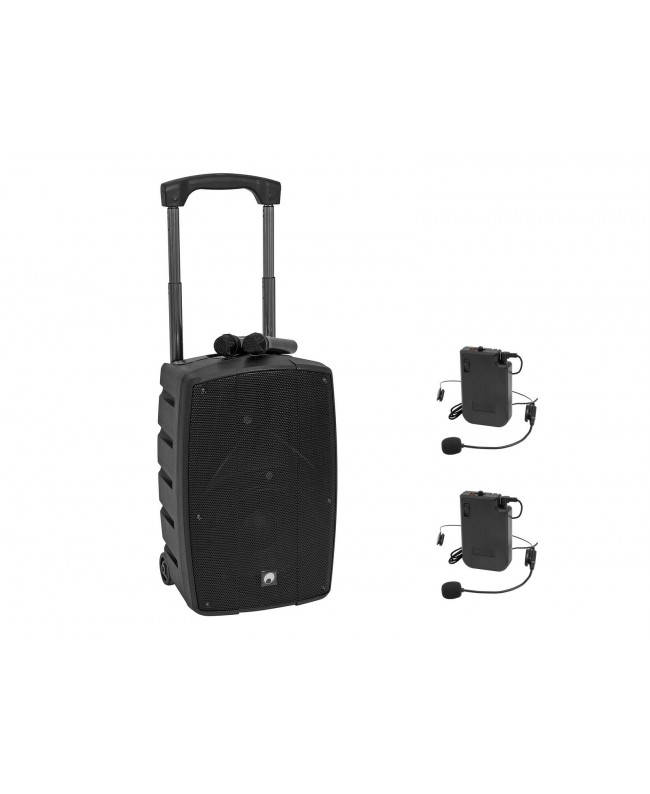

Omnitronic Set WAMS-12BT2 + 2x Bodypack Transmitter + 2x Headset

Scope of delivery

1 x OMNITRONIC WAMS-12BT2 Wireless PA System

• 2 x microphone
• 2 x user manual
• 1 x power cord
• 1 x battery
• 1 x compact cabinet speaker
• 1 x declaration of conformity
• 1 x battery pack
• 1 x remote control
• 2 x antenna

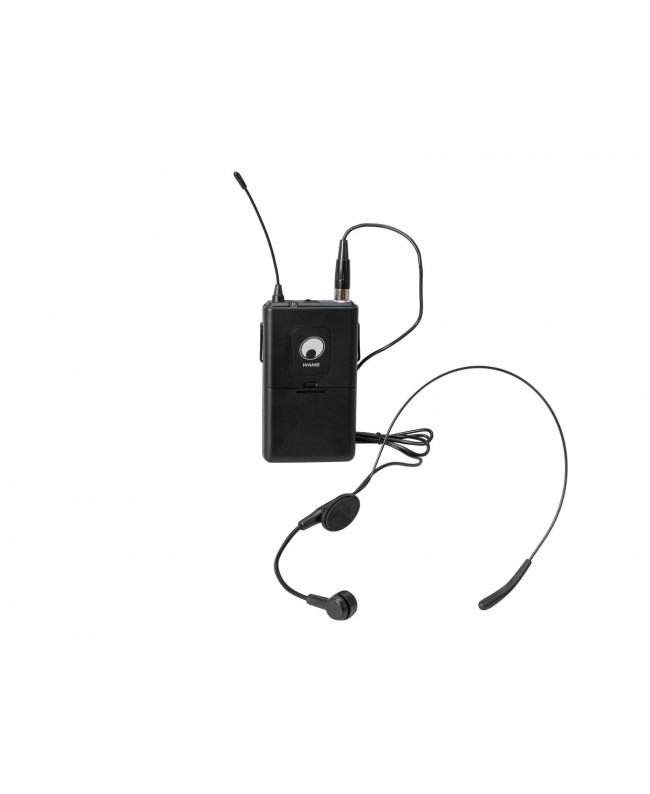

1 x OMNITRONIC WAMS-12 Bodypack incl. Headset 863MHz

• 1 x transmitter
• 1 x microphone
• 1 x user manual

1 x OMNITRONIC WAMS-12 Bodypack incl. Headset 865MHz

• 1 x transmitter
• 1 x microphone
• 1 x user manual

• Weight: 14.80 kg
• Power supply: 100-240 V AC, 50/60 Hz, Or, 12V DC
• Protection class: Protection class I
• Output power: 80 W RMS
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided), Battery/battery pack
• Cable length: 1.5 m
• Device fuse: 5 x 20 mm, T 1.6 A fuse replaceable
• Battery pack type: 1 x lithium ion 12.8 V, 8000 mAh, 102.4 Wh
• Battery pack: Battery operation up to 4h depending on program used, Recharging time 4h
• Frequency range: 50 - 20000 Hz
• THD: 0.1 % at 1 kHz
• Sensitivity: 98 dB (1W/1m)
• Max. SPL: 121 dB
• Bluetooth device name: OMNITRONIC
• Attachment system: Flange: Ø 35mm
• Control elements: Level control per channel, echo effect control, talkover
• Status LED: Power, limit, charge status indicator
• Connections: Input: line via 1 x 3.5 mm jack (stereo) mounting version, Input: line via 1 x stereo RCA, Input: mic/line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: 3-pin XLR
• Equalizer: 2-band tone control
• Speaker: 1 x woofer 12 with ferrit magnet, Basket material: steel, Conematerial: cardboard/paper, 1 x tweeter 1
• Type of speaker: Wireless PA system
• Switch: On/off switch
• Material: Plastic
• Color: Black
• Dimensions: Length: 31 cm, Width: 36 cm, Height: 56 cm
• Weight: 13.30 kg
• Power supply: 3V DC
• Capsule type: Dynamic
• Polar pattern: Cardioid
• Battery: 2 x Mignon (AA) (not included)
• Range: Range up to 30m
• Frequency band: UHF 863 - 865 MHz
• Dimensions: Length: 24 cm, Diameter: Ø 5.1 cm
• Control: Bluetooth; IR remote control
• Bluetooth: Version: 5 with stereo link (TWS)
• Audio player: USB + SD + Bluetooth
• Range: Bluetooth: range up to 20m
• Frequency band: 2.4 GHz
• Music format: MP3, WMA
• Available storage media: USB devices/SD cards max. 32GB (FAT 32)
• Battery: 1 x button cell 3.0 V CR2025 lithium manganese built-in
• Type: Bodypack with microphone
• Polar pattern: Cardioid
• Battery: 2 x Mignon (AA) (not included)
• Range: Range up to 30m with line-of-sight
• Carrier frequency: 863 MHz
• Frequency stability: +- 0.001 %
• RF power output: 10 mW
• Frequency selection: Fixed frequencies
• Connections: 1 x Mini XLR (F) 3-pin
• Material: Plastic
• Color: Black
• Dimensions: Width: 6.6 cm, Depth: 2.4 cm, Height: 11.2 cm
• Weight: 0.10 kg
• Type: Bodypack with microphone
• Polar pattern: Cardioid
• Battery: 2 x Mignon (AA) (not included)
• Range: Range up to 30m with line-of-sight
• Carrier frequency: 865 MHz
• Frequency stability: +- 0.001 %
• RF power output: 10 mW
• Frequency selection: Fixed frequencies
• Connections: 1 x Mini XLR (F) 3-pin
• Material: Plastic
• Color: Black
• Dimensions: Width: 6.6 cm, Depth: 2.4 cm, Height: 11.2 cm
• Weight: 0.10 kg
