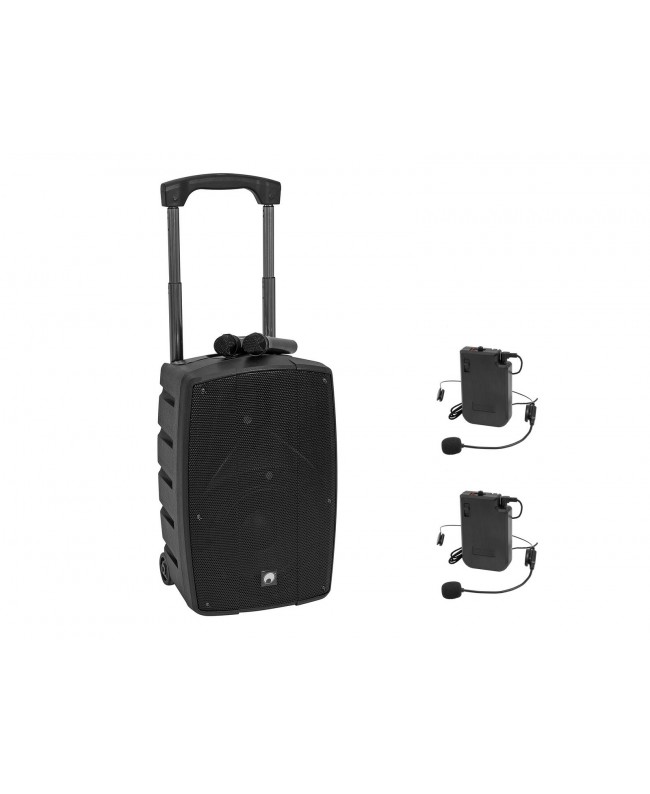

Omnitronic Set WAMS-10BT2 MK2 + 2x Bodypack Transmitter + 2x Headset

Scope of delivery

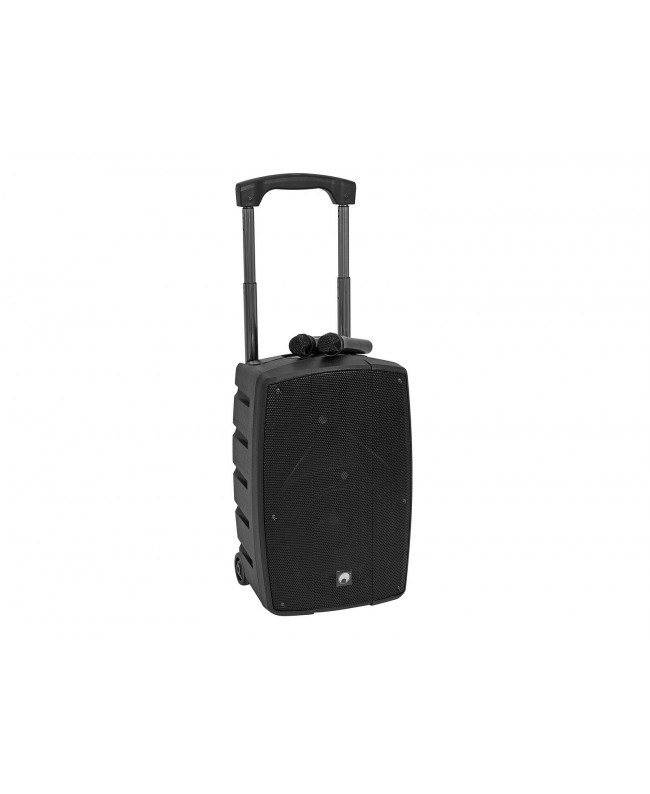

1 x OMNITRONIC WAMS-10BT2 MK2 Wireless PA System

• 2 x microphone
• 2 x user manual
• 1 x power cord
• 1 x battery
• 1 x compact cabinet speaker
• 1 x declaration of conformity
• 1 x battery pack
• 1 x remote control
• 2 x antenna

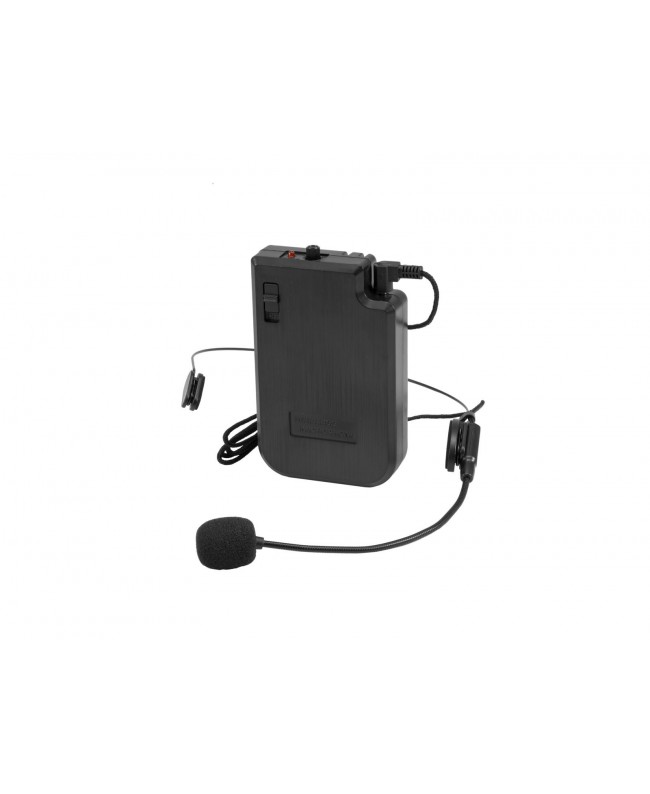

1 x OMNITRONIC WAMS-10BT2 MK2 Bodypack incl. Headset 863MHz

• 1 x transmitter
• 1 x microphone
• 1 x user manual

1 x OMNITRONIC WAMS-10BT2 MK2 Bodypack incl. Headset 865MHz

• 1 x user manual
• 1 x microphone
• 1 x transmitter

• Weight: 13.08 kg
• Power supply: 100-240 V AC, 50/60 Hz, Or, 12V DC
• Protection class: Protection class I
• Output power: 80 W RMS
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided), Battery/battery pack
• Device fuse: 5 x 20 mm, T 1.6 A fuse replaceable
• Battery pack type: 1 x lithium ion 12.8 V, 8000 mAh, 102.4 Wh
• Battery pack: Battery operation up to 4h depending on program used, Recharging time 4h
• Frequency range: 50 - 20000 Hz
• THD: 0.1 % at 1 kHz
• Sensitivity: 96 dB (1W/1m)
• Max. SPL: 115 dB
• Control: Bluetooth; IR remote control
• Bluetooth: Version: 5 with stereo link (TWS)
• Bluetooth device name: OMNITRONIC
• Range: Bluetooth: range up to 20m
• Frequency band: UHF 863 - 865 MHz
• Attachment system: Flange: Ø 35mm
• Control elements: Level control per channel, echo effect control, talkover
• Status LED: Power, limit, charge status indicator
• Connections: Input: line via 1 x 3.5 mm jack (stereo) mounting version, Input: line via 1 x stereo RCA, Input: mic/line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: 3-pin XLR
• Channels: Input chanel: 1 x mono with mic-line switch via XLR or jack, channel control via rotary dial, 2-band tone control EQ
• Input channels: 1 x mono with Mic-Line-Hi.Z. switch via XLR or jack, channel control via rotary dial, 1 x stereo with line-player switch via RCA or jack plug or player, channel control via rotary dial
• Speaker: 1 x woofer 10, 1 x tweeter 1
• Type of speaker: Wireless PA system
• Carrying handle: 1 pc/pcs
• Transport aid: Trolley
• Switch: On/off switch
• Material: ABS Acrylonitrile butadiene styrene
• Color: Black
• Dimensions: Length: 31 cm, Width: 36 cm, Height: 56 cm
• Weight: 12.90 kg
• Power supply: 3V DC
• Capsule type: Dynamic
• Polar pattern: Cardioid
• Battery: 2 x Mignon (AA) (not included)
• Range: Range up to 30m
• Dimensions: Length: 26 cm, Diameter: Ø 4 cm
• Audio player: USB + SD + Bluetooth
• Frequency band: 2.4 GHz
• Music format: MP3, WMA
• Available storage media: USB devices/SD cards max. 32GB (FAT 32)
• Battery: 1 x button cell 3.0 V CR2025 lithium manganese built-in
• Type: Bodypack with microphone
• Battery: 2 x Mignon (AA) (not included)
• THD: 0.1 % at 1 kHz
• Range: Range up to 60m with line-of-sight
• Carrier frequency: 863 MHz
• RF power output: 10 mW
• Frequency selection: Fixed frequencies
• Connections: 1 x 3.5 mm jack (mono) mounting version
• Material: Plastic
• Color: Black
• Dimensions: Width: 6.6 cm, Depth: 2.5 cm, Height: 10.5 cm
• Weight: 0.09 kg
• Capsule type: Condenser
• Type: Bodypack with microphone
• Battery: 2 x Mignon (AA) (not included)
• THD: 0.1 % at 1 kHz
• Range: Range up to 60m with line-of-sight
• Carrier frequency: 865 MHz
• RF power output: 10 mW
• Frequency selection: Fixed frequencies
• Connections: 1 x 3.5 mm jack (mono) mounting version
• Material: Plastic
• Color: Black
• Dimensions: Width: 6.6 cm, Depth: 2.5 cm, Height: 10.5 cm
• Weight: 0.09 kg
• Capsule type: Condenser
