Portable all-in-one PA system with 80 watts output power
3-channel power mixer
Power-efficient and battery-saving biamp amplifier with DSP control
Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
2 mono input channels mic/line and hi-Z instrument (CH 2) with echo effect and feedback suppression
1 stereo input channel for internal audio player and external line signal sources with talkover switch
UHF receiver units and 2 matching wireless microphones
1 additional battery can be retrofitted for up to 8 hours operating time
Signal limiter and crossover, DSP-controlled
Common 2-band EQ for highs and lows
Cordless, flexible and versatile
Battery operation up to 4h depending on program used
Black metal grille

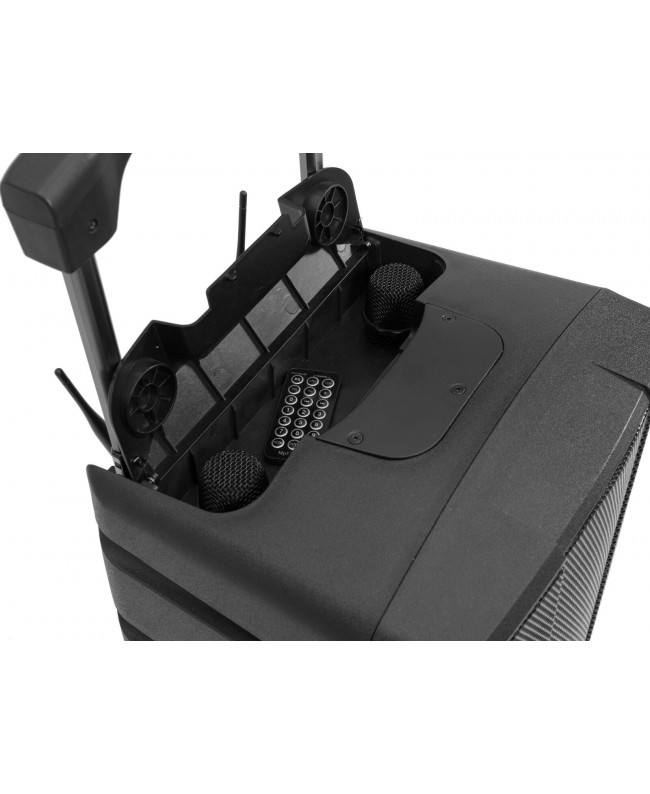

With accessory compartment
For application areas such as: Theater; mobile use; wedding/gala/events; product presentations and lectures
audio player
Control via Bluetooth; IR remote control
Bluetooth: operating range up to 20m
2.4 GHz license-free worldwide
microphone
Polar pattern: Cardioid
Operating range up to 30m
UHF 863 - 865 MHz License-free and approved in Europe
Scope of delivery
2 x microphone
2 x user manual
1 x power cord
1 x battery
1 x compact cabinet speaker
1 x declaration of conformity
1 x battery pack
1 x remote control
2 x antenna
Power supply: 100-240 V AC, 50/60 Hz, Or, 12V DC
Protection class: Protection class I
Output power: 80 W RMS
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided), Battery/battery pack
Cable length: 1.5 m
Device fuse: 5 x 20 mm, T 1.6 A fuse replaceable
Battery pack type: 1 x lithium ion 12.8 V, 8000 mAh, 102.4 Wh
Battery pack: Battery operation up to 4h depending on program used, Recharging time 4h
Frequency range: 50 - 20000 Hz
THD: 0.1 % at 1 kHz
Sensitivity: 98 dB (1W/1m)
Max. SPL: 121 dB
Bluetooth device name: OMNITRONIC
Attachment system: Flange: Ø 35mm

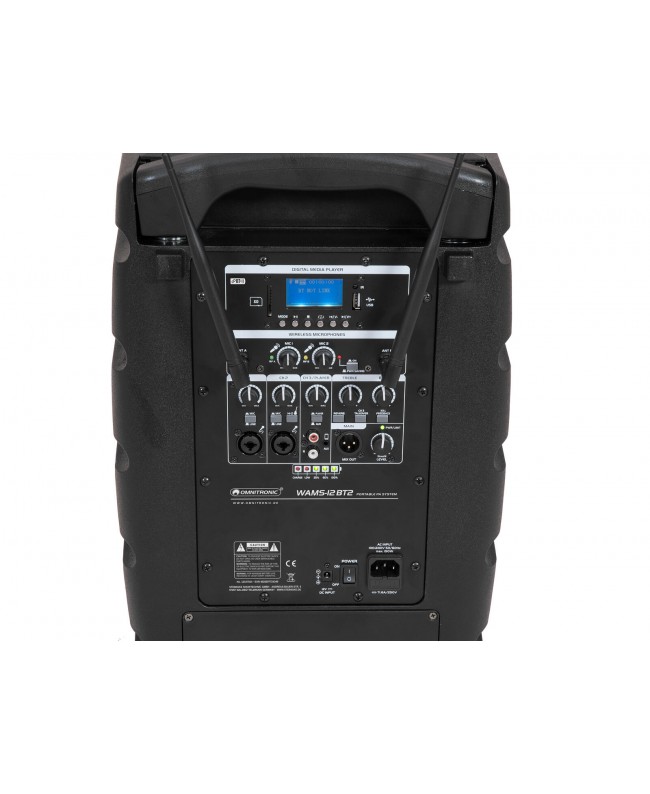

Control elements: Level control per channel, echo effect control, talkover
Status LED: Power, limit, charge status indicator
Connections: Input: line via 1 x 3.5 mm jack (stereo) mounting version, Input: line via 1 x stereo RCA, Input: mic/line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: 3-pin XLR
Equalizer: 2-band tone control
Speaker: 1 x woofer 12 with ferrit magnet, Basket material: steel, Conematerial: cardboard/paper, 1 x tweeter 1
Type of speaker: Wireless PA system
Switch: On/off switch
Material: Plastic
Color: Black
Dimensions: Length: 31 cm, Width: 36 cm, Height: 56 cm
Weight: 13.30 kg
Power supply: 3V DC
Capsule type: Dynamic
Polar pattern: Cardioid
Battery: 2 x Mignon (AA) (not included)
Range: Range up to 30m
Frequency band: UHF 863 - 865 MHz
Dimensions: Length: 24 cm, Diameter: Ø 5.1 cm
Control: Bluetooth; IR remote control
Bluetooth: Version: 5 with stereo link (TWS)
Audio player: USB + SD + Bluetooth
Range: Bluetooth: range up to 20m
Frequency band: 2.4 GHz
Music format: MP3, WMA
Available storage media: USB devices/SD cards max. 32GB (FAT 32)
Battery: 1 x button cell 3.0 V CR2025 lithium manganese built-in
