Omnitronic Set PORTY-8A

Scope of delivery

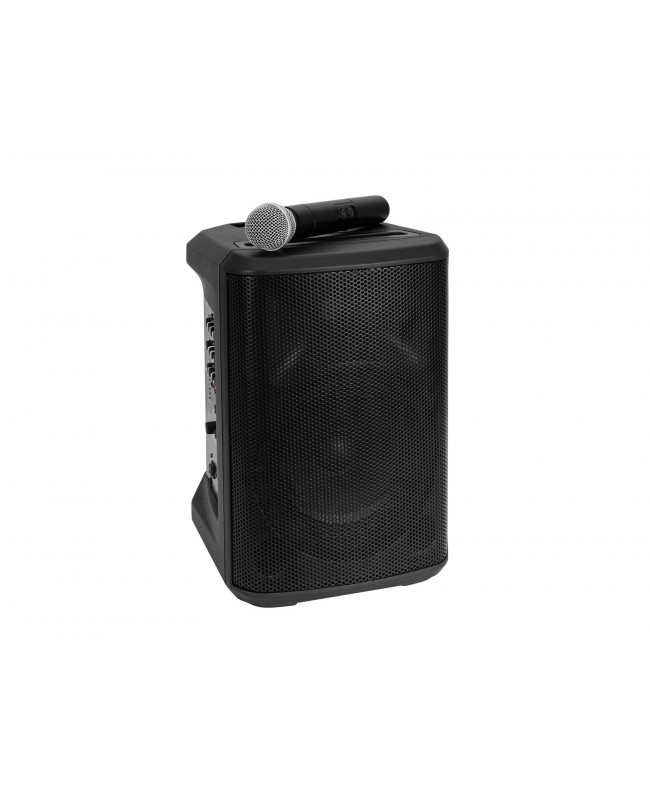

1 x OMNITRONIC PORTY-8A Wireless PA System

• 1 x compact cabinet speaker
• 1 x microphone
• 1 x power cord
• 1 x user manual
• 1 x declaration of conformity
• 2 x battery
• 1 x battery pack

1 x OMNITRONIC PORTY-8A Bodypack + Lavalier Microphone 863.1 MHz

• 1 x transmitter
• 1 x microphone
• 2 x battery
• 1 x user manual
• 1 x declaration of conformity

1 x OMNITRONIC PORTY-8A Transport Bag

• 1 x bag
• 1 x strap

• Weight: 10.30 kg
• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: Max. 220 W
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version (provided), Battery/battery pack
• Cable length: 1.5 m detachable
• Device fuse: 5 x 20 mm, T 3.15 A fuse replaceable
• Battery pack type: 1 x lithium ion 22.2 V, 4400 mAh, 97.68 Wh
• Battery pack: Battery operation up to 6.5h at 50% volume, Battery operation up to 3.5h at 100% volume, Recharging time 4h
• Power: 120W RMS
• Number of channels: 4
• Frequency range: 45 - 18000 Hz
• Max. SPL: 114 dB
• DSP: Digital signal processor 96kHz, 24 bit
• DSP presets: FLAT; DJ; LIVE
• Control: Bluetooth
• Bluetooth: Version: 5 with stereo link (TWS)
• Bluetooth device name: OMNITRONIC PORTY-8A
• Range: Bluetooth: range up to 20m
• Frequency band: UHF 863 - 865 MHz
• Housing color: Black
• Attachment system: Dual flange: Ø 35mm
• Circuitry: Class D
• Control elements: Power switch, Input sensitivity switch, Master control, level control per channel, echo effect control; connect
• Connections: Input: mic/line via 3 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line via RCA (F) mounting version, Input: line via 3.5 mm jack (stereo) mounting version, Output: line via 3-pin XLR (M) mounting version
• Channels: Input chanel: 3 x mono with Mic-Line-Hi.Z. switch via Combination socket (XLR/jack), channel control via rotary dial, 2-band tone control EQ
• Input channels: 1 x stereo via RCA or jack plug or Bluetooth, channel control via rotary dial
• Speaker: Woofer 8 with ferrit magnet, 8 x compression tweeter highs 1.35 with ferrit magnet
• Type of speaker: Wireless PA system
• Carrying handle: 1 pc/pcs
• Material: Plastic
• Dimensions: Width: 29 cm, Depth: 26.3 cm, Height: 39.3 cm
• Weight: 8.65 kg
• Cable length: 0.9 m detachable
• Range: Range up to 60m
• Frequency band: UHF 863 - 865 MHz
• Carrier frequency: 863.1 MHz
• RF power output: 10 mW
• Color: Black
• Weight: 0.13 kg
• Color: Black
• Weight: 0.65 kg
