Briteq BT-NONABEAM - BQ2

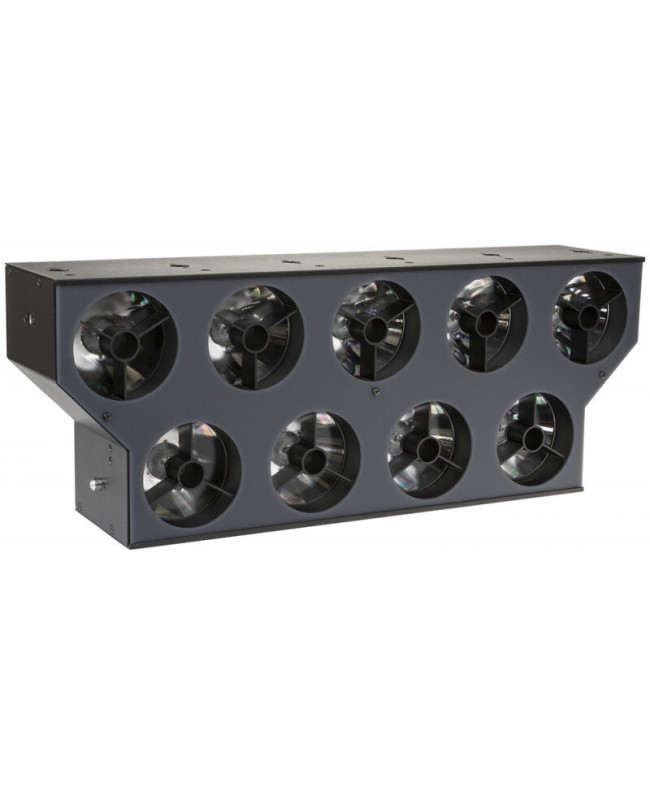

The Multi Beam LED is a projector designed to create spectacular curtains of light with its 9 narrow white beams.

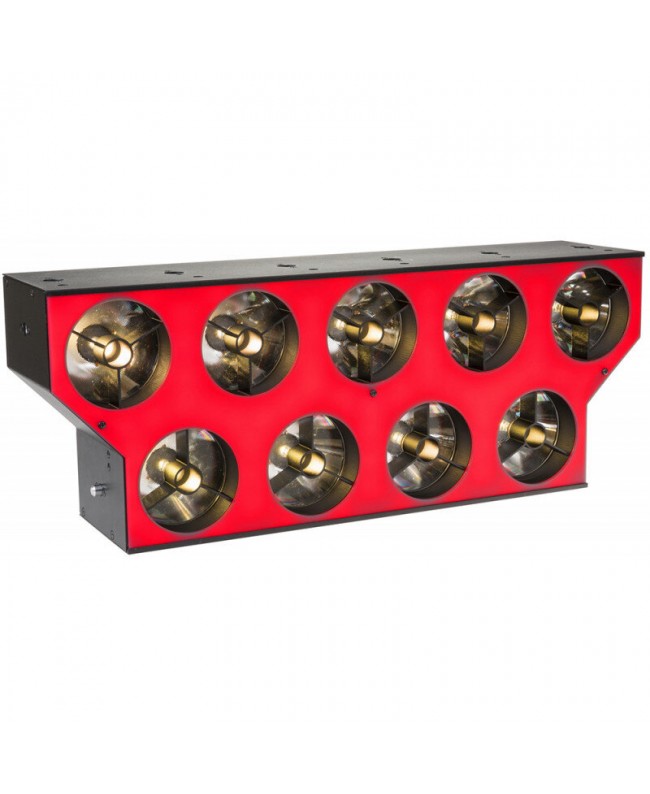

Developed in collaboration with Marijn Broeckaert, it is designed for high-end productions. Its nine lenses house 60 W white LEDs with variable color temperatures, capable of generating extremely powerful 4° beams, up to 175,000 lux at 3 meters. Multiple units can be combined to achieve dynamic and scenic effects, while individual LED control allows for switching from a warm white of 3000 K to a cool white of 6000 K. The front panel can also illuminate in any color thanks to the integrated RGB LEDs.

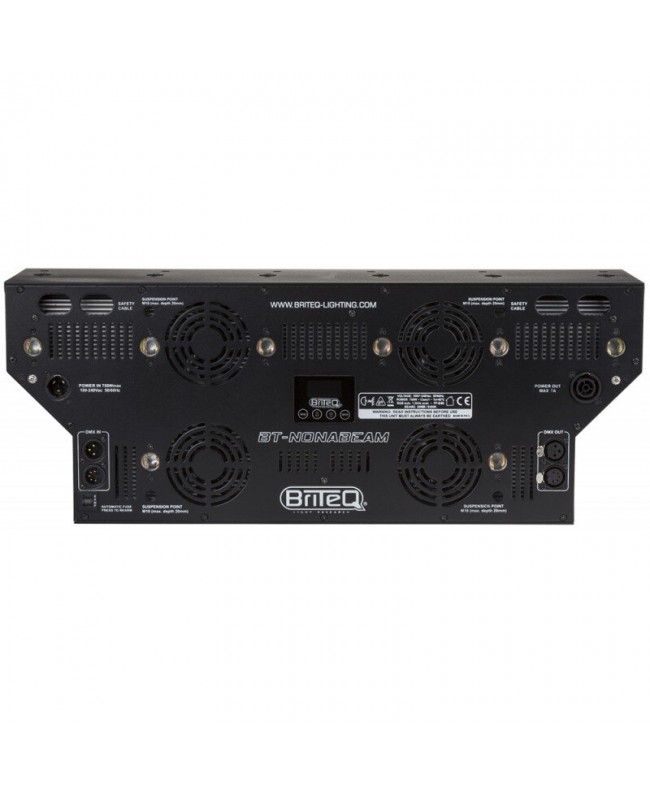

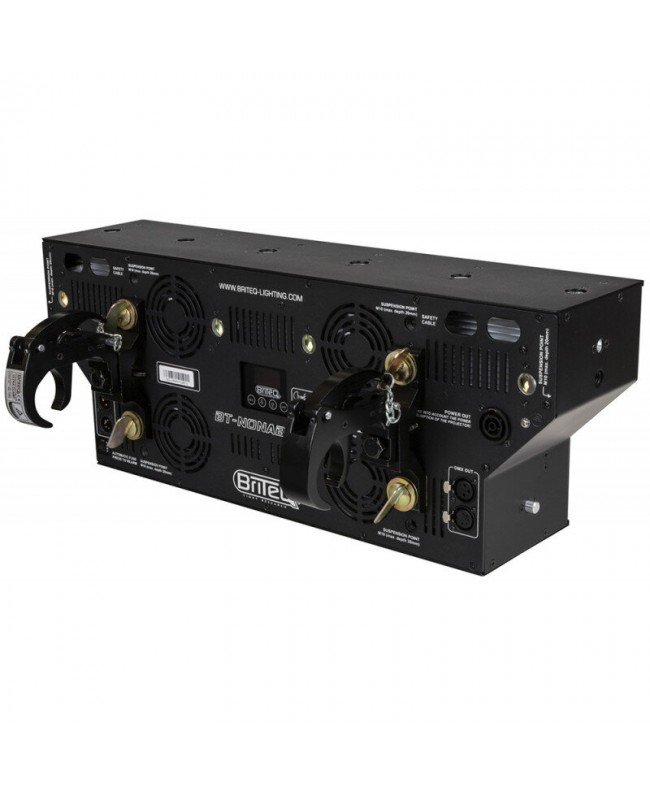

The projector offers flexible DMX control with 13, 29 and 45 channel modes, 16-bit dimming, and RDM support for quick and remote setup. The structure includes multiple M10 mounting points for customized installations, while the semi-transmissible mirrored front panel allows for creative effects with lasers and light beams. Connections include 3 and 5-pin DMX and power. CON TRUE1 IN/OUT for safe and professional cascading. An OLED display with backlit touch buttons and compact dimensions make it easy to integrate into any setup.

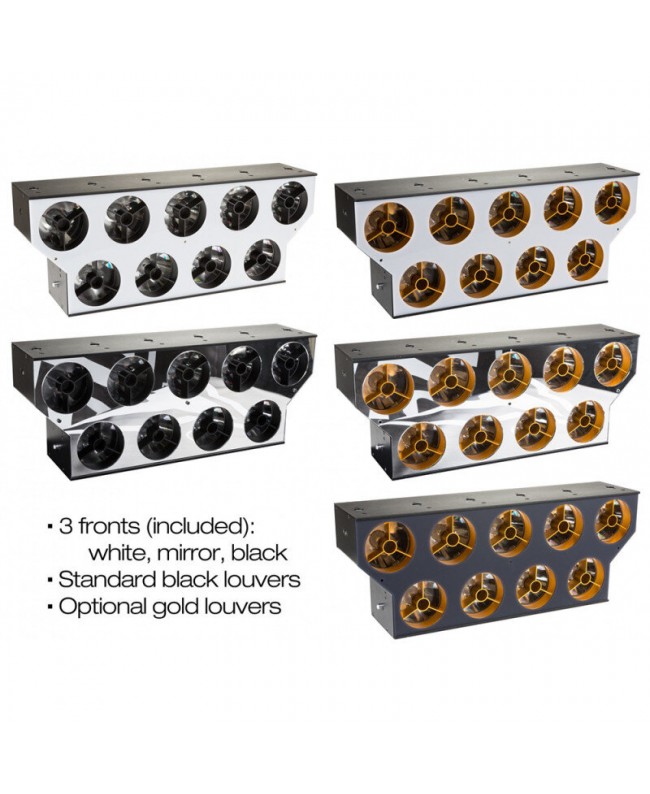

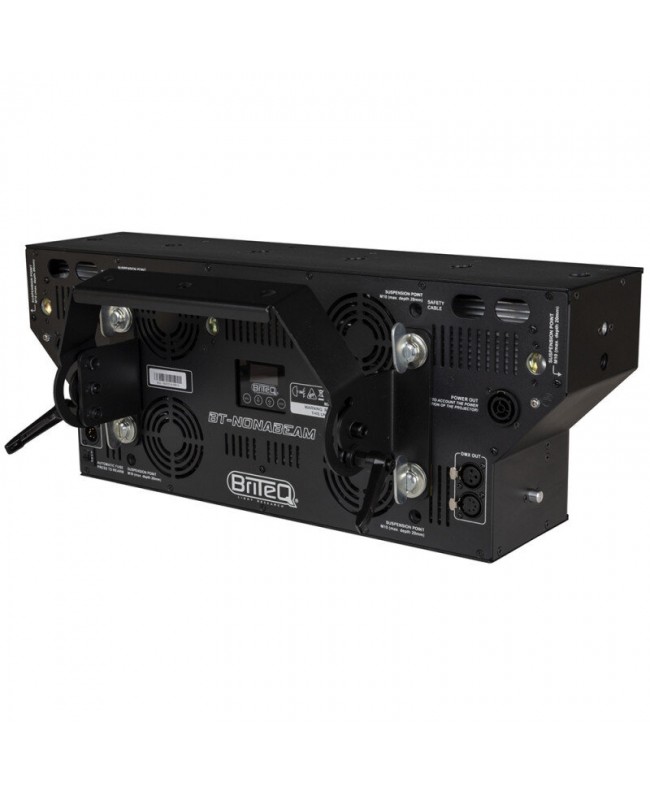

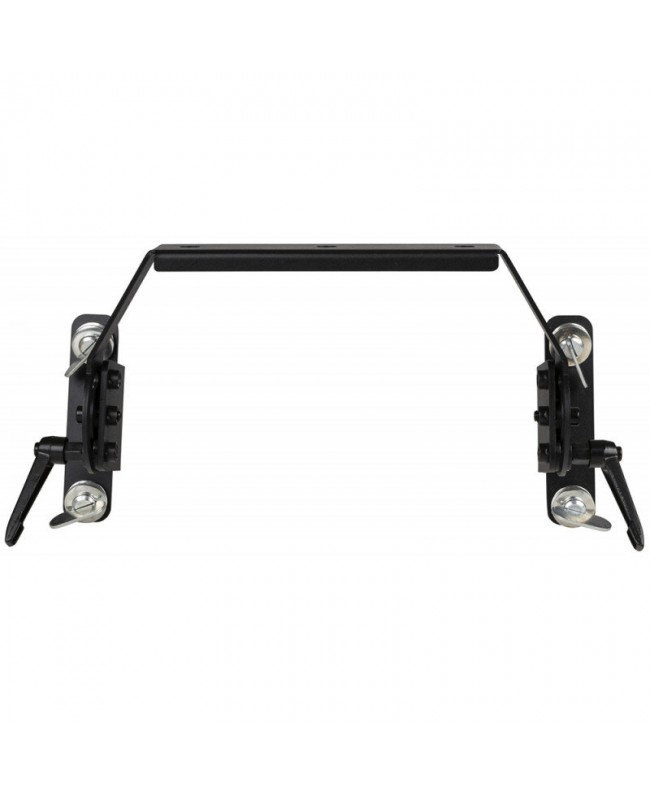

The lenses feature black anti-glare blades, with the option of replacing them with gold ones. The unit includes two interchangeable front panels and a suspension bracket with Fast Lock fasteners, as well as two omega brackets.

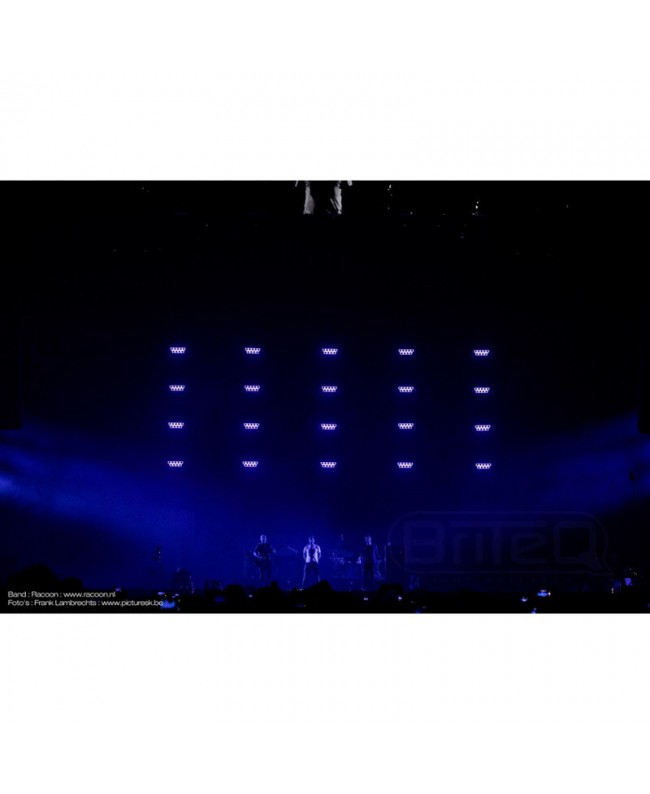

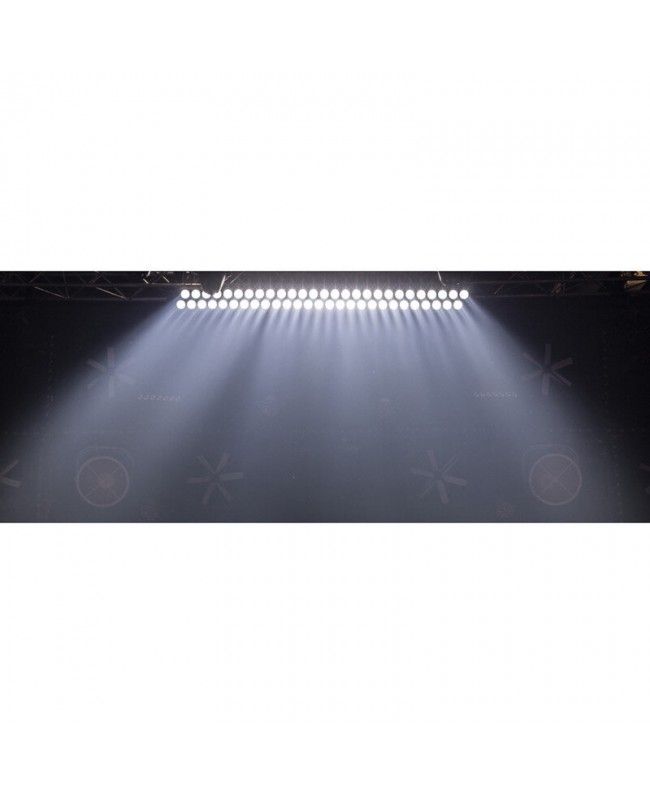

For transport, an optional 60 x 120 cm flight case is available that can accommodate up to four fixtures.

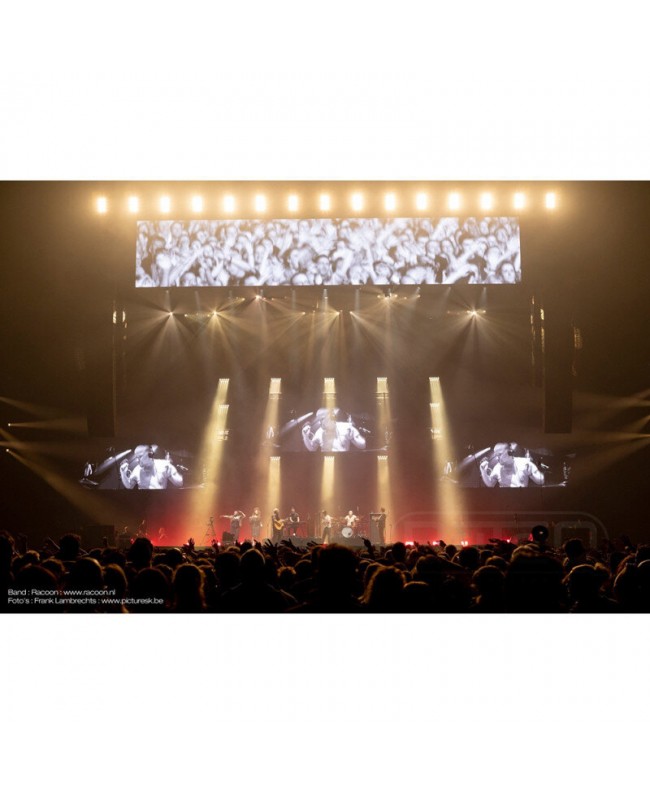

• Areas of use
• Concerts
• Festivals
• Theaters
• TV studios
• Large live events
