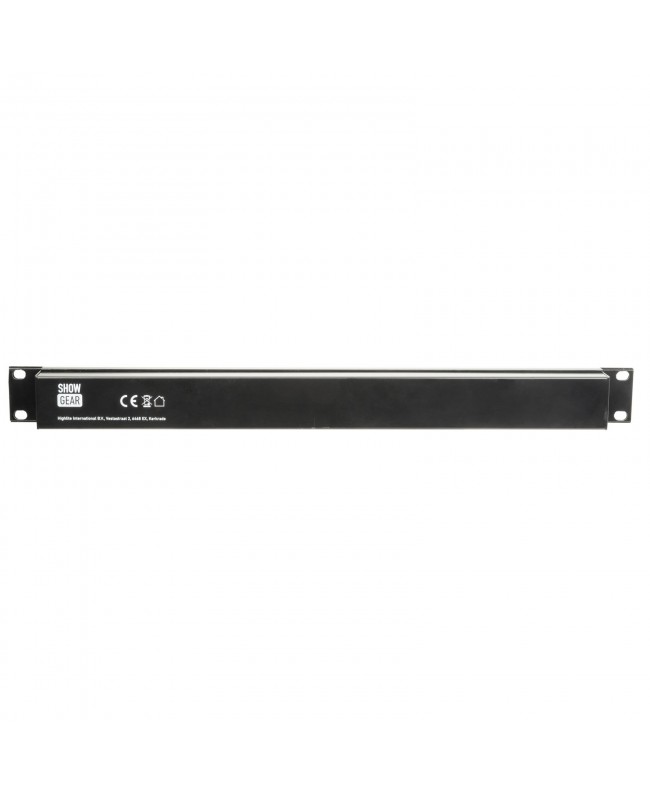

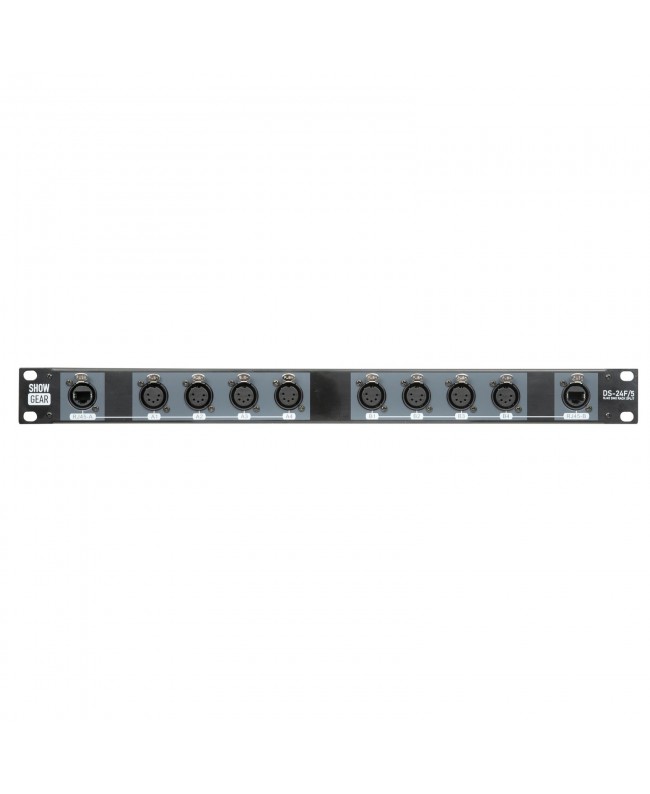

SHOWGEAR DS-24F/5 DMX Rack Split 8x 5-pin female XLR to 2x female RJ45 converter (4 universes per CAT cable)

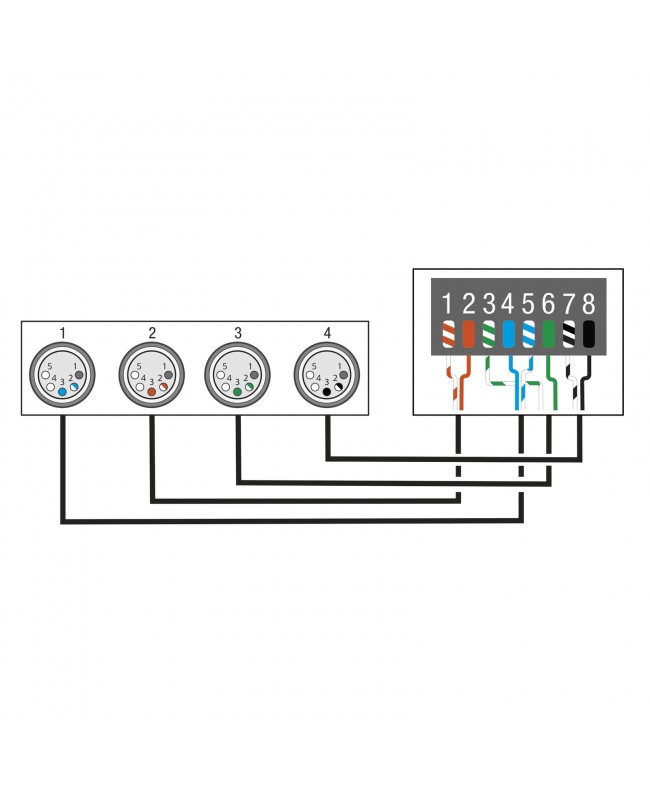

The Showgear DS-24F/5 is a 19 rack version for converting 8 universes to 2 CAT cables. Each CAT connector is linked to four female 5-pin XLR connectors. This will help you to have fewer cables and to reach longer distances while minimizing signal latency.

The DS-24F/5 is suitable for any 19 rack or case and is built to last and outperform due to a strong metal housing and high quality components. We recommend to use a shielded CAT cable for optimum results.

  • Split Box
  • Suitable for converting 8 universes to two CAT cables
  • Female 5-pin XLR and female RJ45 connectors
  • 19/1U rack size
  • Strong reliable metal housing
  • Impedance: 110 Ω
  • DMX Connector In: XLR 5P
  • Data Connector Out: RJ45
  • Pins: 5
  • Length (mm): 483 mm
  • Height (mm): 45 mm
  • Width (mm): 36 mm
  • Weight: 0.9 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: Metal
  • Colour: Black
  • Locking Device: Latch
  • Contact Type: Nickel plated
  • Conductors: 3
  • Maximum Ambient Temperature: 40 °C
  • Minimum Ambient Temperature: -20 °C

96031

Data sheet

Color
Black
Giorni di elaborazione
20
Connector A
XLR 3-pin female
Connector B
etherCON/RJ45
