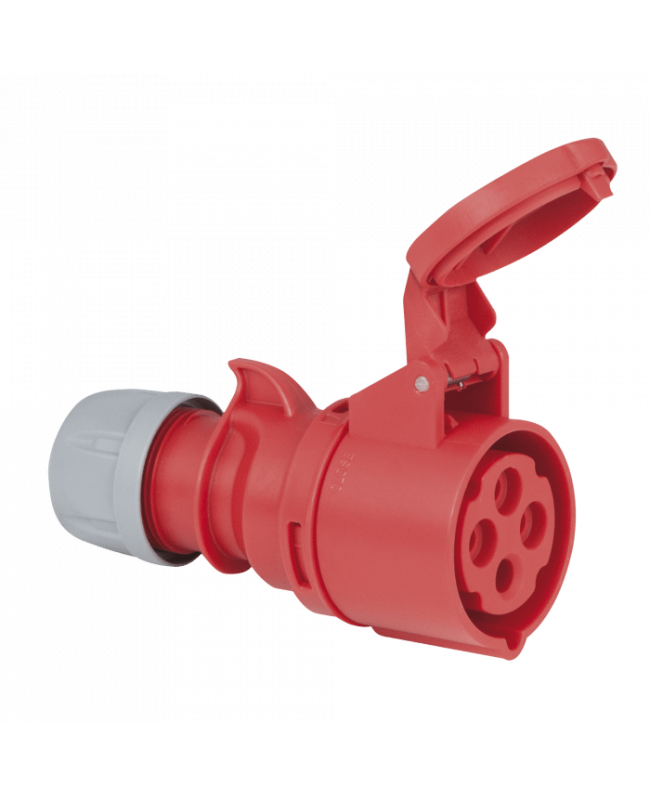

PCE CEE 16 A/400 V 4-pin Plug female

Technical specifications

Connections and electrical characteristics

• Rated current (A) 16 A
• Working Voltage Overflash 400 V
• Cable entry 6-15 mm
• Contacts 4
• Minimum cable size 1 mm² (0.0016 inch²)
• Maximum cable size 2.5 mm² (0.0039 inch²)

Mechanical characteristics

• Length (mm) 138 mm (5.433″)
• Height (mm) 82 mm (3.228″)
• Width (mm) 82 mm (3.228″)
• Weight 0.161 kg
• IP rating IP44
• Housing Plastic
• Color Red

Product features

• Connection Screw terminal pin
• Manufacturer ID 214-6
• Contact type Brass
• Ground contact position 6H
