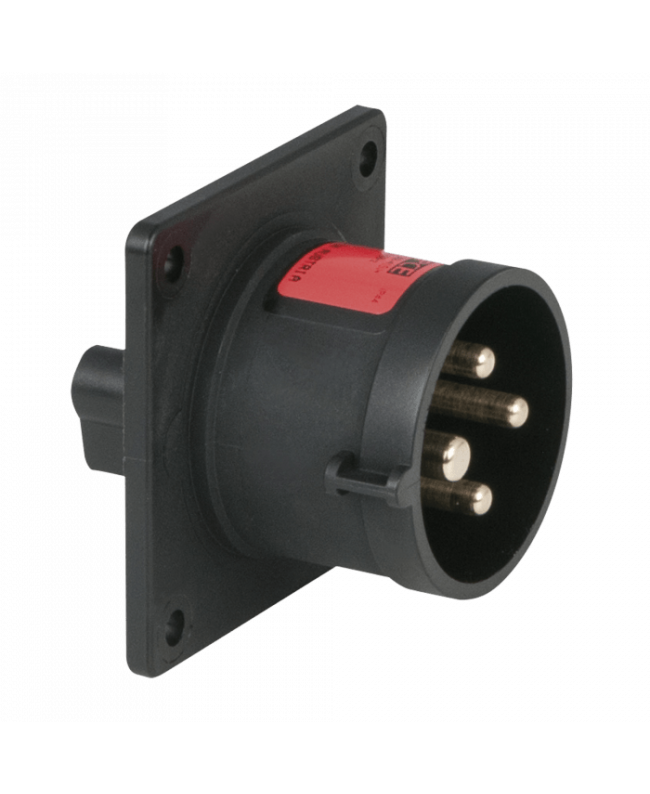

PCE CEE 16 A/400 V 4-pin Socket male

Technical specifications

Electrical connections and characteristics

• Nominal current (A) 16 A
• Working voltage Overflash 400 V
• Contacts 4
• Minimum cable size 1 mm² (0.0016 inch²)
• Maximum cable size 2.5 mm² (0.0039 inch²)

Mechanical characteristics

• Length (mm) 63 mm (2.48″)
• Height (mm) 70 mm (2.756″)
• Width (mm) 70 mm (2.756″)
• Mounting dimensions 56 x 56 mm
• Weight 0.101 kg
• IP rating IP44
• Housing Plastic
• Color Black

Product features

• Connection Screw terminal pin
• Manufacturer ID 614-6
• Contact type Brass
• Ground contact position 6H
