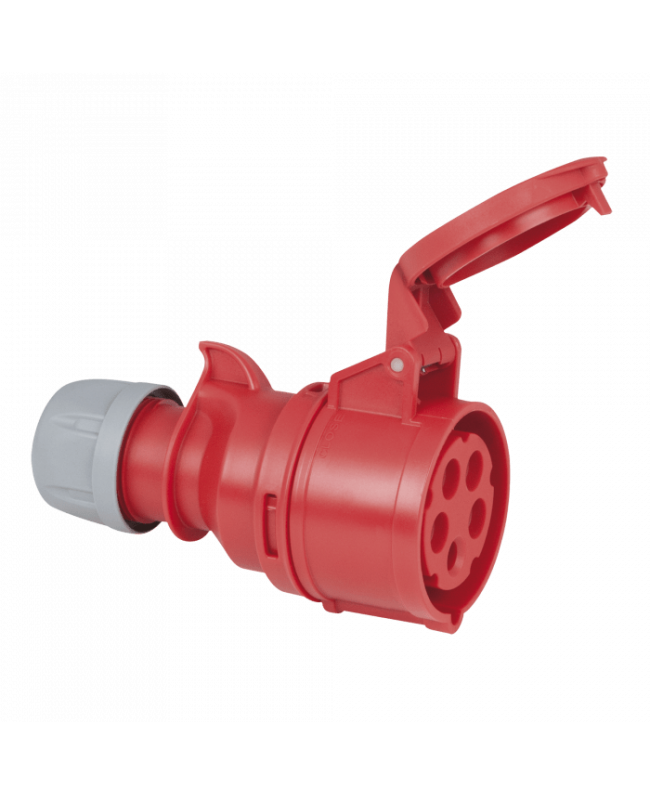

PCE CEE 16 A/400 V 5-pin Plug female

Technical specifications

Connections and electrical characteristics

• Rated current (A) 16 A
• Working Voltage Overflash 400 V
• Cable entry 8-16 mm, Pg29
• Contacts 5
• Minimum cable size 1 mm² (0.0016 inch²)
• Maximum cable size 2.5 mm² (0.0039 inch²)

Mechanical characteristics

• Length (mm) 134 mm (5.276″)
• Height (mm) 98 mm (3.858″)
• Width (mm) 61 mm (2.402″)
• Weight 0.154 kg
• IP rating IP44
• Housing Plastic
• Color Black

Product features

• Connection Screwless Terminal (Turbo Terminal)
• Manufacturer's identification CE 015-6TTV
• Contact type Brass
• Ground contact position 6H
