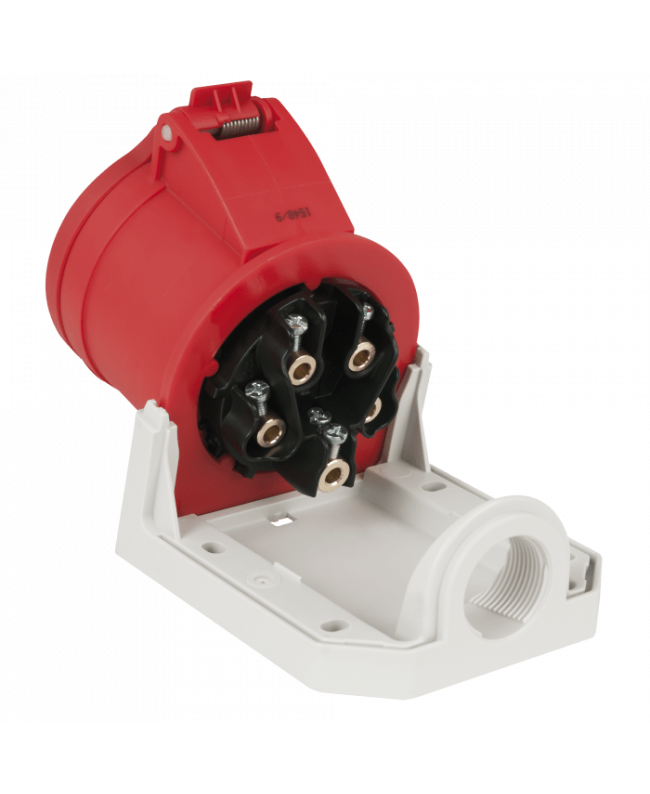

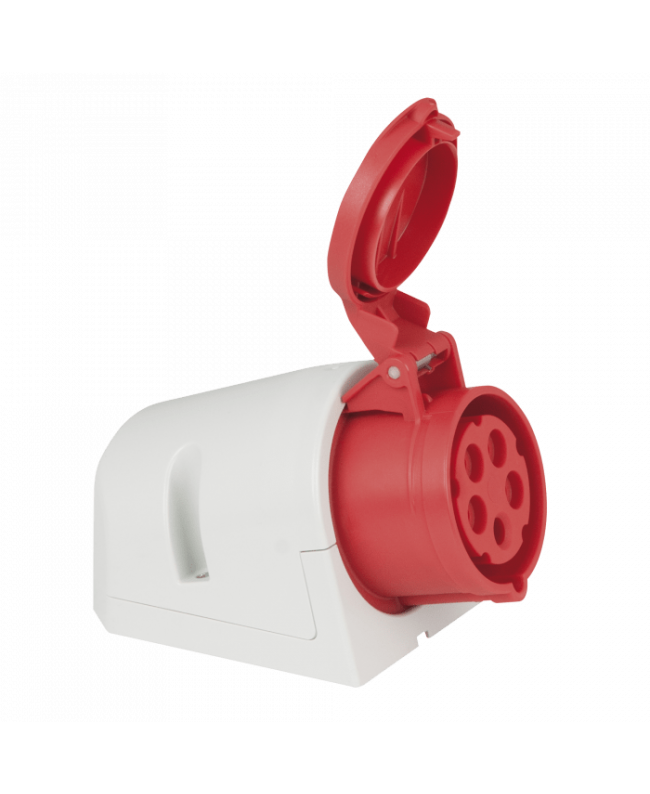

PCE CEE 16 A/400 V 5P Wallmount - female

Technical specifications

Connections and electrical characteristics

• Nominal current (A) 16 A
• Working voltage Overflash 400 V
• Cable input M25
• Contacts 5
• Minimum cable size 1 mm² (0.0016 inch²)
• Maximum cable size 2.5 mm² (0.0039 inch²)

Mechanical characteristics

• Length (mm) 144 mm (5.669″)
• Height (mm) 104 mm (4.095″)
• Width (mm) 85 mm (3.347″)
• Weight 0.259 kg
• IP rating IP44 Housing
• Plastic
• Color Gray, Red

Product features

• Connection Screw terminal
• Manufacturer ID 115-6
• Contact type Brass
• Ground contact position 6H
