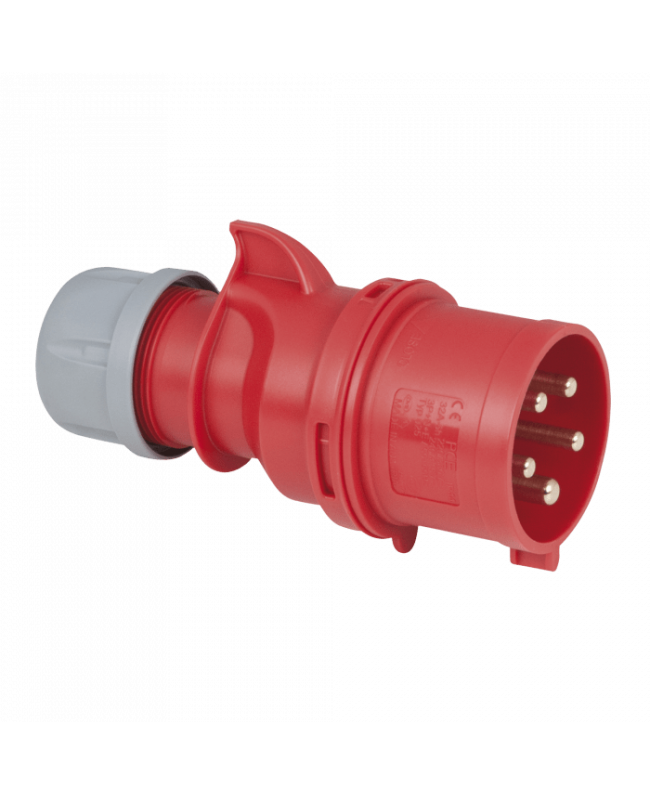

PCE CEE 32 A/400 V 5-pin Plug male

Technical specifications

Electrical connections and characteristics

• Nominal current (A) 32 A
• Working Voltage Overflash V
• Cable entry 11.5-22 mm
• Contacts 5
• Minimum cable size 2.5 mm² (0.0039 inch²)
• Maximum cable size 6 mm² (0.0093 inch²)

Mechanical characteristics

• Length (mm) 155 mm (6.102″)
• Height (mm) 70 mm (2.756″)
• Width (mm) 109 mm (4.291″)
• Weight 0.244 kg (0.538 lb) IP rating IP44
• Housing Plastic Color Red

Product features

• Connection Screw terminal pin
• Manufacturer identification CE 025-6
• Contact type Brass
• Ground contact position 6H
