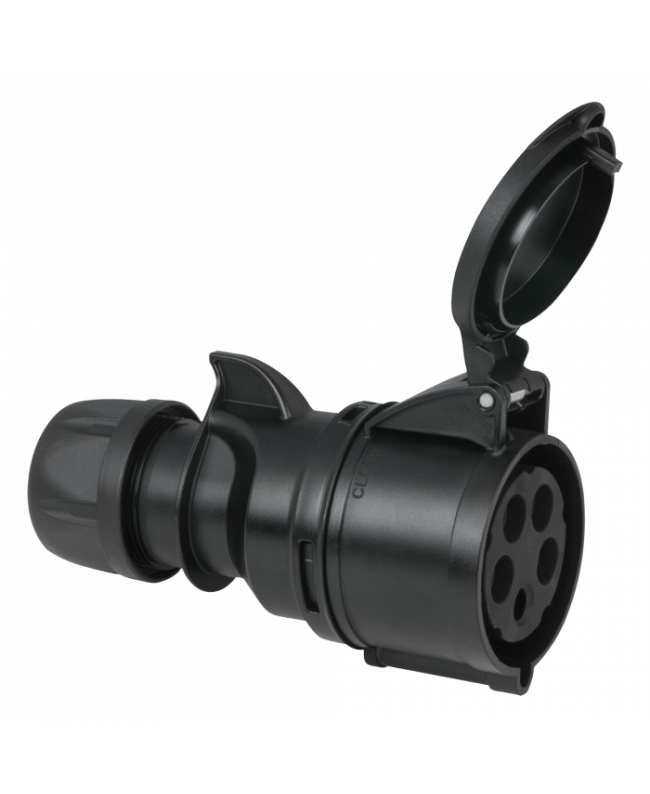

PCE CEE 32 A/400 V 5-pin Plug female

Technical specifications

Connections and electrical characteristics

• Nominal current (A) 32 A
• Working Voltage Overflash 400 V
• Cable entry 11.5-22 mm
• Contacts 5
• Minimum cable size 2.5 mm² (0.0039 inch²)
• Maximum cable size 6 mm² (0.0093 inch²)

Mechanical characteristics

• Length (mm) 168 mm (6.614″)
• Height (mm) 99 mm (3.898″)
• Width (mm) 50 mm (1.969″)
• Weight 0.27 kg
• IP rating IP44
• Housing Plastic
• Color Black

Product features

• Connection Screw terminal pin
• Manufacturer ID 225-6
• Contact type Brass
• Ground contact position 6H
