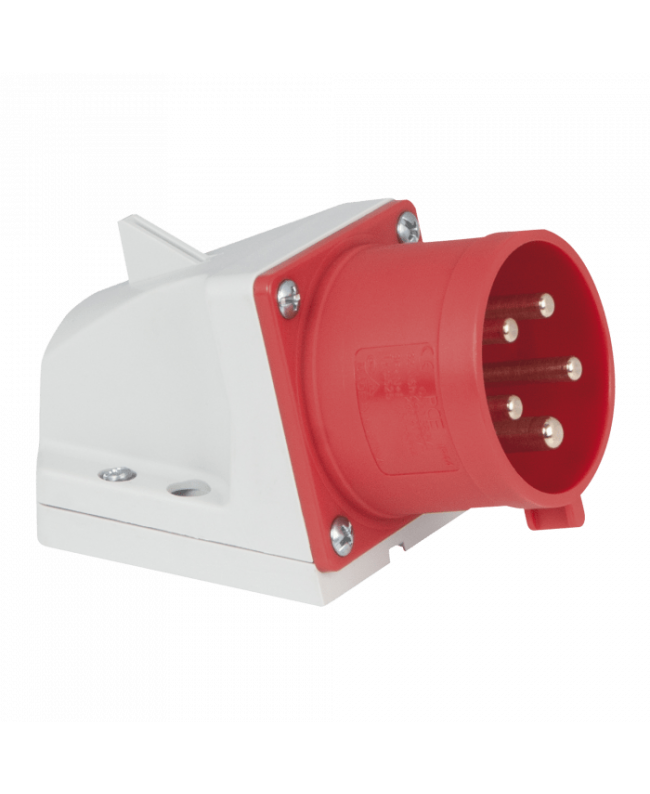

PCE CEE 32 A/400 V 5P Wallmount - male

Technical specifications

Connections and electrical characteristics

• Rated current (A) 32 A
• Working Voltage Overflash 400 V
• Cable entry M25
• Contacts 5
• Minimum cable size 2.5 mm² (0.0039 inch²)
• Maximum cable size
• 6 mm² (0.0093 inch²)

Mechanical characteristics

• Length (mm) 132 mm (5.197″)
• Height (mm) 85 mm (3.347″)
• Width (mm) 70.5 mm (2.776″)
• Weight 0.253 kg
• IP rating IP44
• Housing Plastic
• Color Gray, Red

Product features

• Connection Screw terminal pin
• Manufacturer ID 525-6
• Contact type Brass
• Ground contact position 6H
