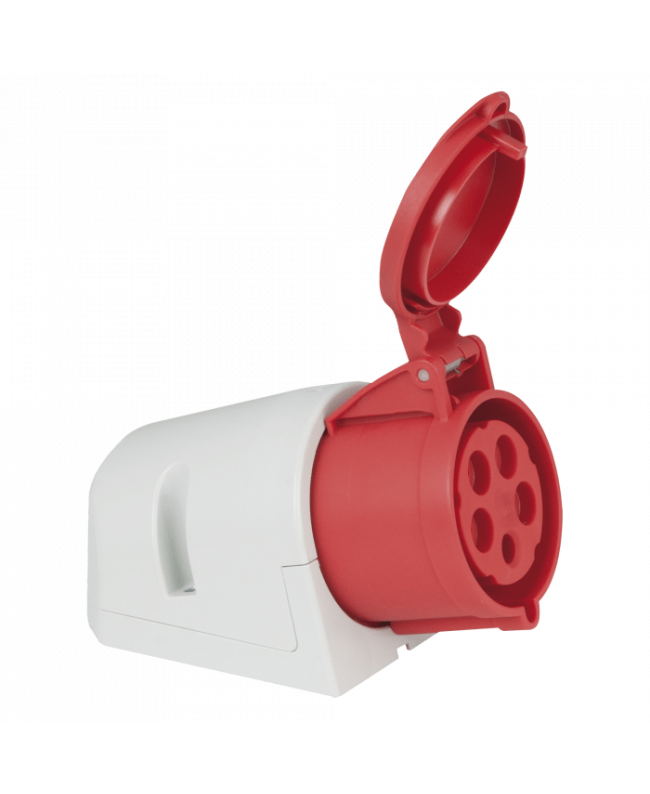

PCE CEE 32 A/400 V 5P Wallmount - female

Technical specifications

Electrical connections and characteristics

• Nominal current (A) 32 A
• Working voltage Overflash 400 V
• Cable entry M25
• Contacts 5
• Minimum cable size 2.5 mm² (0.0039 inch²)
• Maximum cable size 6 mm² (0.0093 inch²)

Mechanical characteristics

• Length (mm) 157 mm (6.181″)
• Height (mm) 111 mm (4.37″)
• Width (mm) 85 mm (3.347″)
• Weight 0.318 kg
• IP rating IP44
• Housing Plastic
• Color Gray, Red

Product features

• Connection Screw terminal pin
• Manufacturer ID 125-6
• Contact type Brass
• Ground contact position 6H
