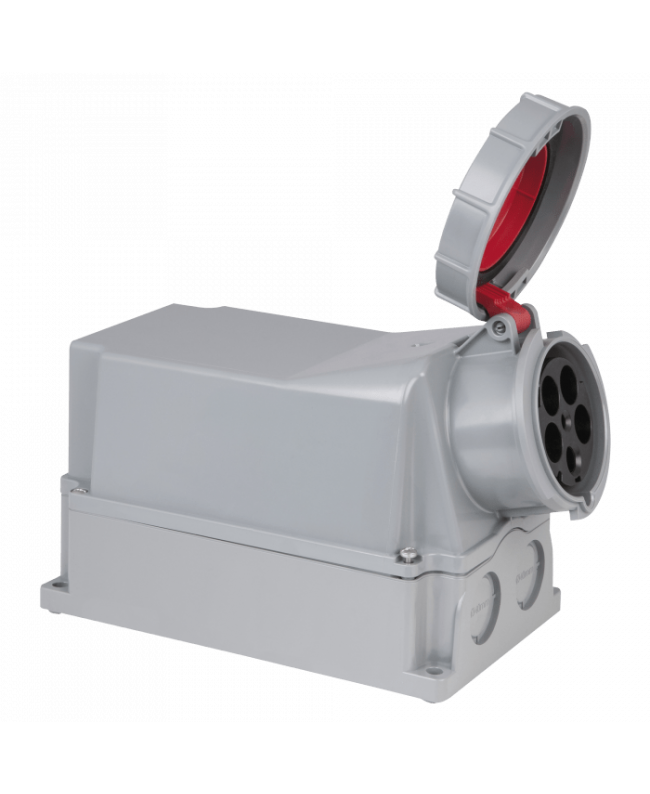

PCE CEE 125 A/400 V 5P Wallmount - female

Technical specifications

Electrical connections and characteristics

• Nominal current (A) 125 A
• Working voltage Overflash 400 V
• Cable input M63
• Contacts 5
• Minimum cable size mm² (0.0248 inch²)
• Maximum cable size 50 mm² (0.0775 inch²)

Mechanical characteristics

• Length (mm) 322 mm (12.677″)
• Height (mm) 205 mm (8.071″)
• Width (mm) 162 mm (6.378″)
• Weight 1.852 kg
• IP rating IP67
• Housing Plastic
• Color Gray, Red

Product features

• Connection Screw terminal pin
• Manufacturer ID -6
• Contact type Brass
• Ground contact position
