Ecler EIC 52 Ceiling Speakers

Ecler EIC 52

€43.10
Tax included

2-way ceiling speaker 5.25” 20 WRMS

Qty

Out of Stock

GFP

We will plant 1 tree and protect part of a tropical rainforest for every order placed on our website.

See our impact in real-time
Compare

wishlist

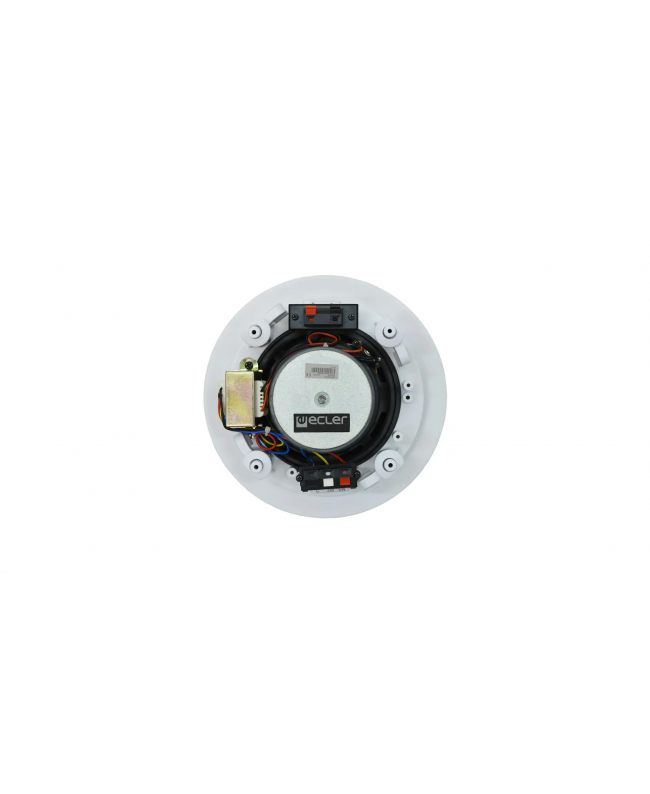

Ecler EIC 52



The eIC52 is an affordable two-way ceiling speaker with excellent sound quality. It is equipped with a 5.25-inch woofer and a 0.75-inch tweeter, has a nominal power of 20 WRMS at 8 Ω and a 100 V line transformer with power options of 3 and 6 W.

Features

  • Two-way speaker made of ABS, 20 WRMS
  • 5.25-inch woofer + 0.75-inch tweeter
  • Integrated audio transformer for 70/100V operation
  • Input clip terminals and low/high impedance power switches
  • EASE files available

Applications

  • Retail
  • Corporate
  • Leisure
  • Sports and wellness

SYSTEM

  • Effective frequency range 65 Hz-20 kHz (-10dB)
  • Coverage/dispersion angle 151°x151° (HxV)
  • Power managed 20 W RMS / 80 W peak
  • Sensitivity 89 dB (1W/1m)
  • Maximum SPL 102 dB continuous / 108 dB peak
  • Power options (Hi Z Multi-tap) 100 V: 6 W / 3 W / 8 Ω
  • 70 V: 6 W / 3 W / 8 Ω
  • Recommended amplifier power 40 W RMS

TRANSDUCERS

  • Modes 2-way
  • Low-frequency driver 5.25“ woofer
  • High-frequency driver 0.75” tweeter
  • Nominal impedance 8 Ω

PHYSICAL CHARACTERISTICS

  • Connection type Clip-on input terminals
  • Power supply selector switch
  • Power outlet selector switch
  • Installation options Ceiling, wall
  • Housing material ABS
  • Operating temperature
  • Min: -10 °C; 14 °F
  • Max: 40 °C; 104 °F
  • Operating humidity <85% RH
  • Storage temperature
  • Min: -10 °C; 14 °F
  • Max: 40°C; 104°F
  • Storage humidity <90% RH
  • External diameter 202 mm / 7.95“
  • Internal diameter 164 mm / 6.46”
  • Recommended cutting diameter 165 mm / 6.50“
  • Required depth 65 mm / 2.56”
  • Ceiling thickness 5 mm / 0.19“ min
  • 30 mm / 1.18” max Finished color
  • White (RAL 9003)
  • Weight 1.0 kg / 2.2 lb
  • Pieces per box 1 unit
  • Shipping dimensions 210 x 210 x 80 mm (LxWxD)
  • Shipping weight 1.2 kg

CEIC52
