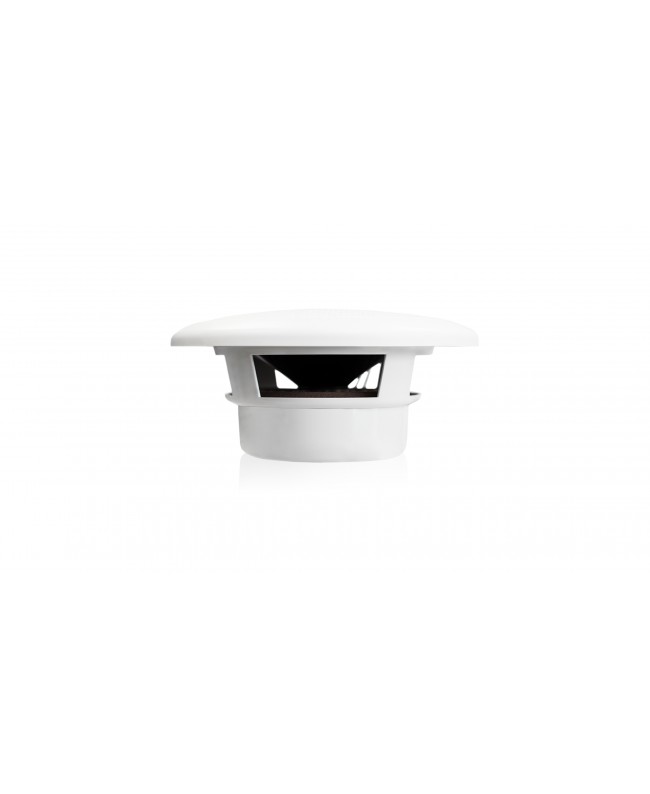

Ecler EIC 52MS Ceiling Speakers

Ecler EIC 52MS

€59.50
Tax included

2-way 5.25” 20 WRMS ceiling diffuser suitable for climatically critical installations and in marine environments.

Out of Stock

Compare

wishlist

Ecler EIC 52MS



The eIC52MS is a 2-way ceiling speaker suitable for installations that are exposed to extreme humidity and/or temperature. It is equipped with a 5“ woofer and a 1” tweeter with a total power consumption of 20 WRMS @ 8 Ω.

Features

  • Two-way speaker, 5“ woofer / 1” tweeter
  • 20 WRMS
  • Faston input connectors: 4.8mm (+) and 2.8mm (-)
  • Suitable for installations exposed to extreme humidity and/or temperature
  • EASE files available

Applications

  • Retail
  • Corporate
  • Leisure
  • Sport and wellness

SYSTEM

  • Effective frequency range 83 Hz-20 kHz (-10dB)
  • Coverage/dispersion angle 155°x155° (HxV)
  • Power handling 20 W RMS / 80 W peak
  • Sensitivity 91 dB (1W/1m)
  • Maximum SPL continuous dB / 110 dB peak
  • Recommended amplifier power
  • 40 W RMS

TRANSDUCERS

  • Modes 2 modes
  • Low frequency driver 5“ woofer
  • High frequency driver 1” tweeter
  • Nominal impedance 8 Ω

PHYSICAL CHARACTERISTICS

  • Connection type
  • Faston male input terminals: 4.8 mm (+) and 2.8 mm (-)
  • Installation options
  • Ceiling, wall
  • Environmental
  • IP54 rating
  • Grille fixing system 4 x Screw fixing system
  • Operating temperature Min:
  • -25°C ; -13°F
  • Max: 70°C ; 158°F
  • Operating humidity <90-95% RH
  • Storage temperature
  • Min: -25°C ; -13°F
  • Max: 70°C ; 158°F
  • Storage humidity <90-95% RH
  • External diameter 165 mm
  • Internal diameter 120 mm
  • Recommended cutting diameter 125 mm
  • Required depth 79 mm
  • Finished color White (RAL 9016)
  • Weight 0.70 kg
  • Pieces per box
  • Shipping dimensions 210 x 80 x 210 mm (LxWxD)
  • Shipping weight 1.2 kg

CEIC52MS

Data sheet

Woofer inch
5,5"
