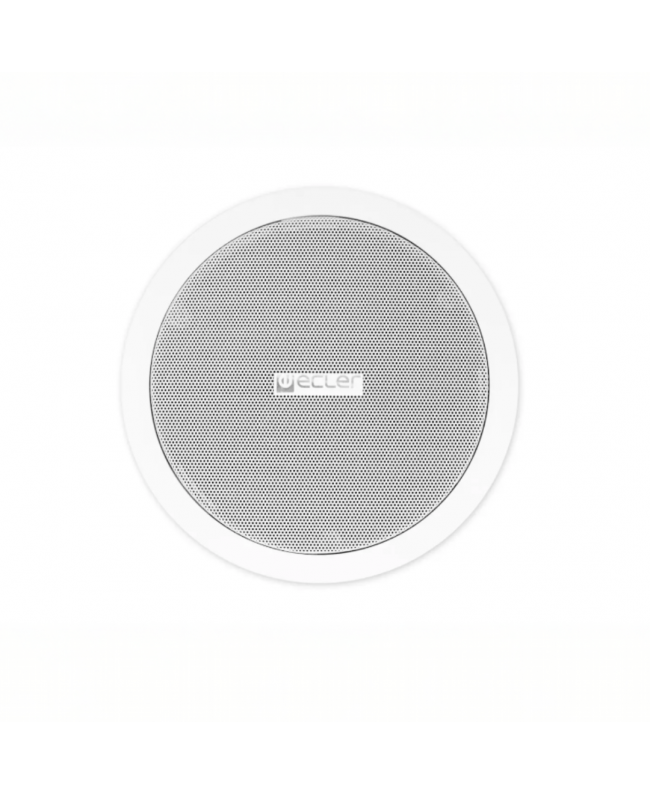

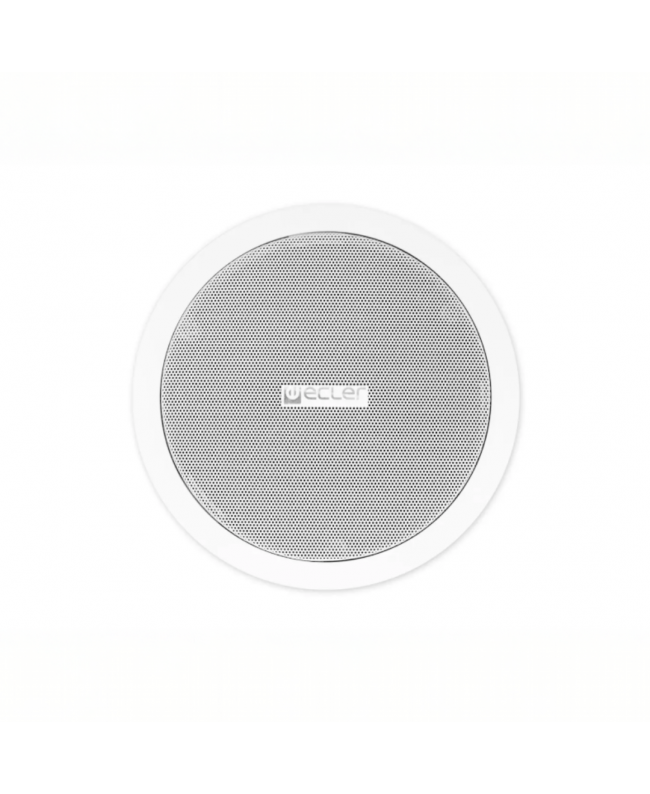

Ecler IC6 Ceiling Speakers
  • -1%

Ecler IC6

€73.50
€72.90 -1%
Tax included
Lowest price within the last 30 days: €72.90

Passive 2-way ceiling speaker. 1x 6“ woofer and 1x 1” tweeter, 40W

Qty

In Stock

Delivery

Do You want Your order by Tuesday, 28/07/2026? Order within 12 hours and 1 minutes

Compare

wishlist

Ecler IC6



IC6 2-way loudspeaker is the perfect option for 70/100 V and low impedance sound solutions. It mounts a 6.5” woofer and a 1" tweeter in a discreet design. IC series provides excellent sound quality thanks to their infinite baffle philosophy and a top-performance high frequency transducer

Features

  • 2 way speaker for false ceilings
  • 6” polypropylene woofer
  • 25mm tweeter
  • Power: 40W RMS @ 8 ohm
  • Sensitivity (1W/1m): 93 dB SPL
  • Built-in transformer
  • External diameter: 204mm
  • Cut out diameter: 180mm
  • Available in black (RAL9005) or white (RAL9010) finish

Installation system:

  • Three revolving fasteners

SPECIFICATIONS

SYSTEM

  • Effective frequency range 75 Hz- 20 kHz (-10dB)
  • Coverage angle / Dispersion 145°x145° (HxV)
  • Power handling 40 W RMS / 160 W peak
  • Sensitivity 93 dB (1W/1m)
  • Maximum SPL 109 dB continuous / 115 dB peak
  • Power options (Hi Z Multi-tap)
  • 100V: 15W / 7.5W / 5W / 2.5W / 8Ω
  • 70V: 7.5W / 3.75W / 2.5W / 1.25W / 8Ω
  • Recommended amplifier power 80 W RMS

TRANSDUCERS

  • Modes 2-way full range
  • Low frequency driver 6.5“ woofer
  • High frequency driver 1” tweeter
  • Nominal impedance 8 Ω

PHYSICAL CHARACTERISTICS

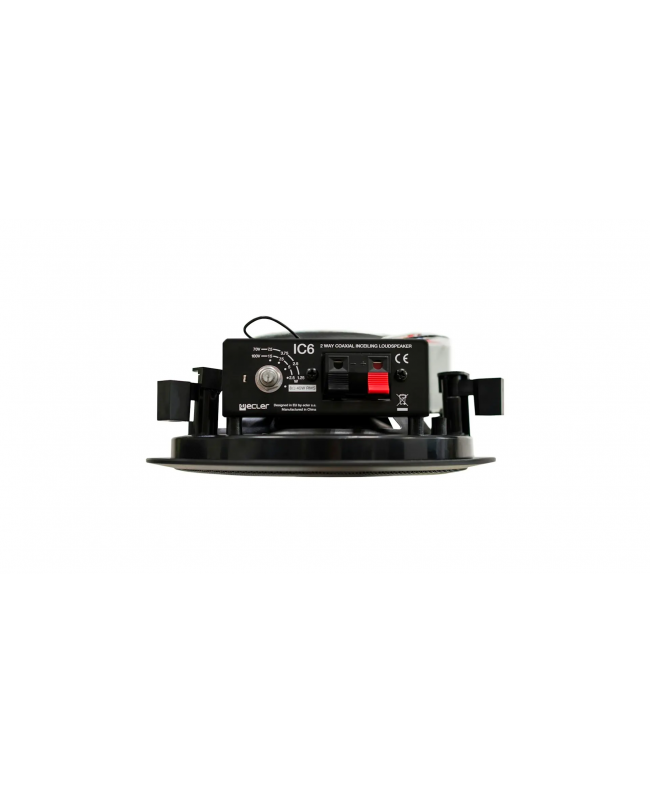

  • Connection type
  • Clip-on input terminals
  • Power selector switch
  • Rotary power selector
  • Installation options Ceiling, wall
  • Enclosure material ABS Grill material
  • Rustproof aluminum
  • Mounting system 3 rotating tabs
  • Operating temperature
  • Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Operating humidity <85% RH
  • Storage temperature
  • Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Storage humidity <90% RH
  • External diameter 204 mm / 8.03“
  • Internal diameter 178 mm / 7.00”
  • Recommended cutting diameter 180 mm / 7.40“
  • Required depth > 73 mm / 2.87”
  • Ceiling thickness
  • 5 mm / 0.19“ min
  • 20 mm / 0.78” max
  • Accessories included Cutting and painting templates included
  • Finished color White (RAL 9010) or black (RAL 9005)
  • Weight 1.5 kg
  • Pieces per box 2 units
  • Shipping dimensions 240 x 250 x 220 mm (LxWxD)
  • Shipping weight 1.90 kg

CIC6
