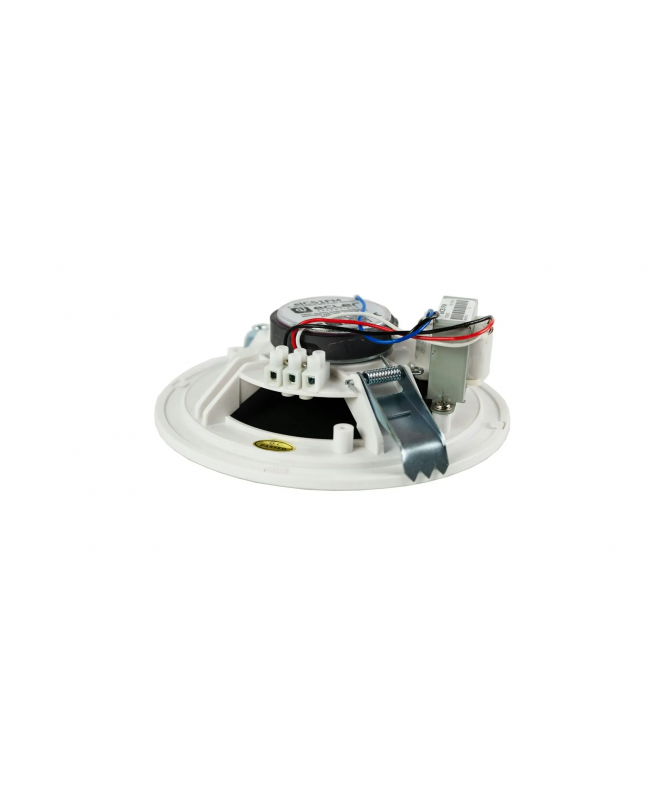

Ecler elC51FM Ceiling Speakers

Ecler elC51FM

€22.90
Tax included

Ceiling speaker for quick and cheap installation, but with excellent performance. It has a 5.25” woofer and is ideal for 70/100V (3/6 W) applications.

Qty

In Stock

Delivery

Do You want Your order by Tuesday, 29/04/2025? Order within 2 hours and 24 minutes

GFP

We will plant 1 tree and protect part of a tropical rainforest for every order placed on our website.

See our impact in real-time
Compare

wishlist

Ecler elC51FM



eIC51FM is an economical in-ceiling speaker with excellent audio performance and a quick-mounting system. It has a 4.5” woofer and a 70/100 V line transformer with 3 and 6 W power options.

Features

  • Quick and easy assembly Unidirectional, full range
  • 4.5” woofer 6WRMS
  • 100 V power options: 3/6 W
  • 70 V power options: 1.5/3 W
  • Screw terminals
  • ABS plastic basket, powder coated iron grille
  • Available in white (RAL 9016)
  • EASE address file available

Applications

  • Retail
  • Corporate
  • Leisure
  • Sport and wellness

Specs

SYSTEM

  • Effective Freq. Range 115 Hz-17 kHz (-10dB)
  • Coverage angle / Dispersion 157°x157° (HxV)
  • Power handling 6 W RMS / 24 W Peak
  • Sensitivity 91 dB (1W/1m)
  • Maximum SPL 99 dB continuous / 105 dB peak
  • Power options (Hi Z Multi-tap)
  • 100V: 6W / 3W
  • 70V: 3W / 1,5W
  • Recommended amplifier power 12 W RMS

TRANSDUCERS

  • Ways 1-way full range
  • Driver 4.5" woofer, ferrite magnet and paper cone
  • Nominal impedance 8Ω

PHYSICAL

  • Connection type Screw terminals
  • Power type selector Color code connection (rear panel)
  • Installation options In-ceiling, in-wall
  • Environmental IP50 rated
  • Enclosure material ABS plastic
  • Grille material Powder coated iron
  • Mounting system Spring clamps
  • Operating temperature
  • Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Operating humidity <85% HR
  • Storage temperature
  • Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Storage humidity <90% HR
  • External diameter 160 mm / 6.3"
  • Recommended cut out diameter 145 mm / 5.7”
  • Required depth >54 mm / 2.1”
  • Ceiling thickness
  • No limit min 55mm / 2.17" max
  • Finished colour White (RAL 9016)
  • Weight 0,5 kg / 1.1 lb
  • Pieces per box 1 unit
  • Shipping dimensions 178 x 178 x 63 mm / 7.0 x 7.0 x 2.5 in. (WxHxD)
  • Shipping weight 0.75 kg / 1.7 lb

CEIC51FM

Data sheet

Woofer inch
5,5"
