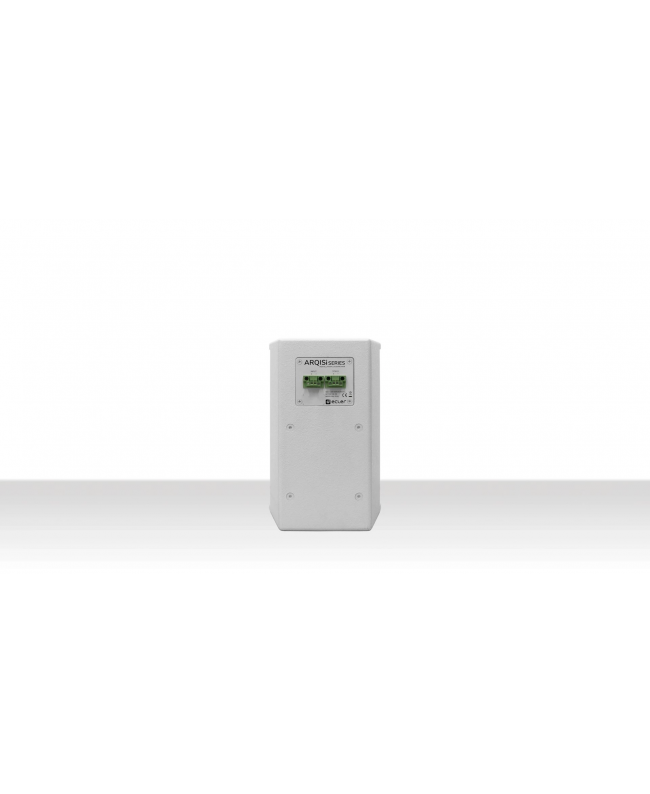

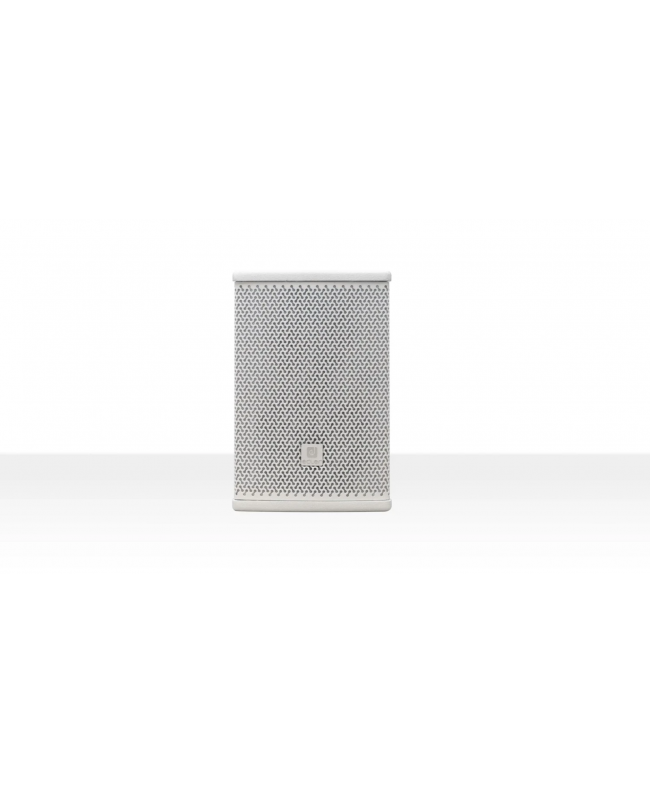

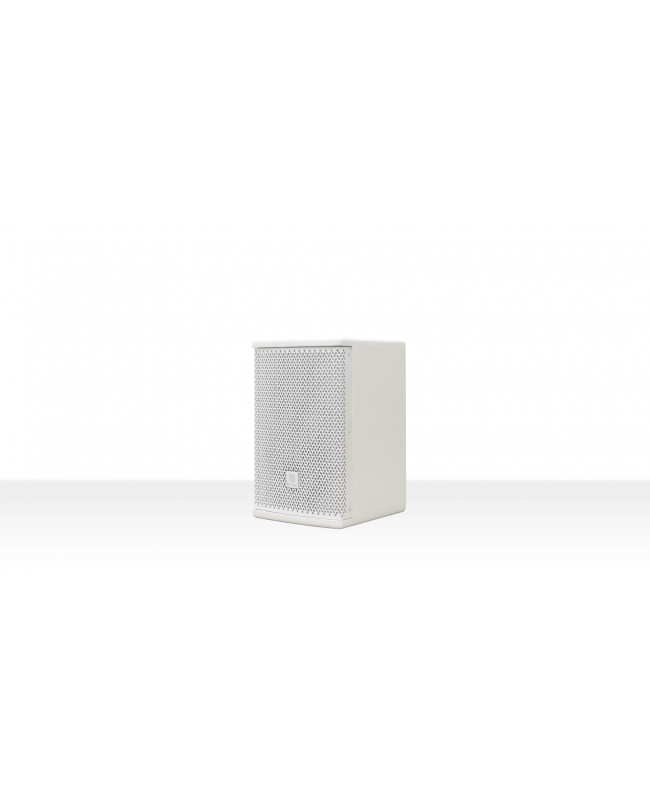

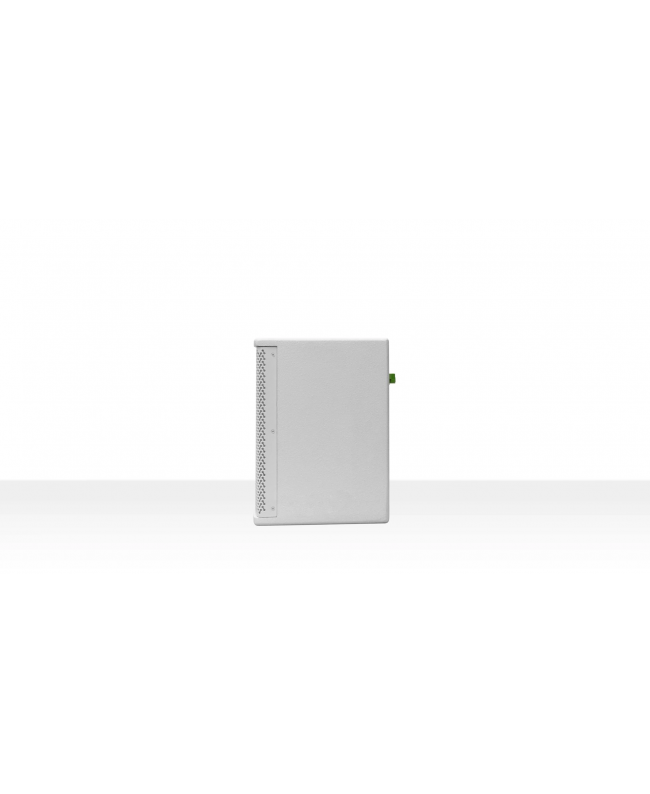

Ecler ARQIS 105IWH



ARQIS105i is a 2-way wooden loudspeaker cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 70 WRMS @ 8Ω, 5.25" woofer and 1" HF tweeter. Its VEASY wall bracket included (VESA compatible), allows for pan & tilt adjustment, employing a single screw for fastening. ARQISi Series has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.

Features

  • Full range, 2-way architectural loudspeaker
  • 70 WRMS @ 8Ω
  • 5,25" low frequency woofer
  • 1" high frequency tweeter
  • Double INPUT/STACK connector, Euroblock type, with security attachment screws to avoid accidental disconnection
  • VEASY Wall bracket included, allowing for pan & tilt adjustment, employing a single screw for fastening. Robust, quick and easy to install, including jumps and markings for repeating speaker orientation.
  • Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface
  • Available in black (RAL 9005) or white (RAL 9003) colour
  • EASE files available

Applications

  • Retail
  • Education
  • Corporate
  • Leisure
  • Sports & Wellness
  • Hospitality

SPECIFICATIONS

SYSTEM

  • Effective frequency range 80 Hz-20 kHz (-10dB)
  • Coverage angle / Dispersion 150°x130° (HxV)
  • Power handling 70 W RMS / 280 W peak
  • Sensitivity 89 dB (1W/1m)
  • Maximum SPL 107 dB continuous / 113 dB peak
  • Recommended amplifier power 140 W RMS

TRANSDUCERS

  • Modes 2-way full range
  • Low frequency driver 5.25“ woofer
  • High frequency driver 1” tweeter
  • Nominal impedance 8Ω

FILTERS

  • Crossover filter 3.2 kHz
  • Recommended high-pass protection filter 80 Hz with minimum filter of 12 dB/octave

PHYSICAL CHARACTERISTICS

  • Connection type 2 x Euroblock
  • Installation options
  • Surface, wall, desk
  • Environmental conditions IP31
  • Casing material MDF
  • Grille material Steel
  • Grid fixing system Screw fixing
  • Fixing points 4 x M6
  • Operating temperature
  • Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Operating humidity <85% RH
  • Storage temperature
  • Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Storage humidity <90% RH
  • Included accessories
  • VEASY wall mount / 3 mm Allen key / 4 mm Allen key / 6 mm Allen key
  • Finished color White (RAL 9003) or black (RAL 9005)
  • Dimensions 186 x 280 x 210 mm / 7.32 x 11.02 x 8.27 inches (WxHxD)
  • Weight 3.6 kg / 7.93 lbs


CARQIS105IW

Data sheet

Woofer inch
5,5"
