Ecler ARQIS 106IBK


€326.00
Tax included

2-way acoustic speaker, 6” woofer, 480W


Out of Stock

Free shipping


wishlist

Ecler ARQIS 106IBK



ARQIS106i is a 2-way wooden loudspeaker cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 120 WRMS @ 8Ω, 6" woofer and 1" rotatable HF Compression Driver. Its VEASY wall bracket included (VESA compatible), allows for pan & tilt adjustment, employing a single screw for fastening. ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.

Features

  • Full range, 2-way architectural loudspeaker 120 WRMS @ 8 Ω
  • 6" low frequency woofer 1" high frequency compression driver (rotatable)
  • Double INPUT/STACK connector, Euroblock type, with security attachment screws to avoid accidental disconnection

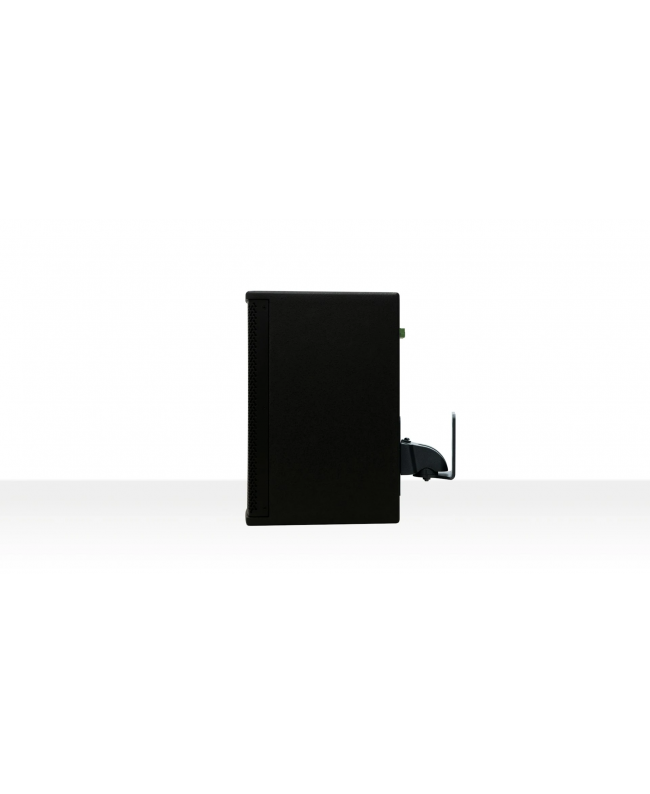

  • VEASY Wall bracket included, allowing for pan & tilt adjustment, employing a single screw for fastening. Robust, quick and easy to install, including jumps and markings for repeating speaker orientation.
  • Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface
  • Available in black (RAL 9005) or white (RAL 9003) colour
  • EASE files available

Applications

  • Retail
  • Education
  • Corporate
  • Leisure
  • Sports & Wellness
  • Hospitality

SPECIFICATIONS

SYSTEM

  • Effective Freq. Range 75 Hz - 20 kHz (-10dB)
  • Coverage angle / Dispersion 140°x160° (HxV)
  • Power handling 120 W RMS / 480 W Peak
  • Sensitivity 88 dB (1W/1m)
  • Maximum SPL 109 dB continuous / 115 dB peak
  • Recommended amplifier power 240 W RMS

TRANSDUCERS

  • Ways 2-ways full range
  • Low frequency driver 6" woofer
  • High frequency driver 1" rotatable compression driver
  • Nominal impedance 8Ω

FILTERS

  • Crossover filter 3,2 kHz
  • Recommended High-Pass protection filter 70 Hz with minimum 12 dB / octave filter

PHYSICAL

  • Connection type 2 x Euroblock
  • Installation options Surface, wall, desktop
  • Environmental Enclosure material
  • MDF Grille material
  • Steel Grille fixing system
  • Screw fixation Pan and tilt wall-mount
  • TBC
  • Flying points 8 x M6
  • Operating temperature
  • Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Operating humidity <85% HR
  • Storage temperature
  • Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Storage humidity <90% HR
  • Included accessories
  • VEASY Wall Bracket / 3 mm Allen key / 4 mm Allen key / 6 mm Allen key
  • Finished colour
  • White (RAL 9003) or Black (RAL 9005)
  • Dimensions 215 x 350 x 240 mm / 8.46 x 13.78 x 9.45 in. (WxHxD)
  • Weight 7.4 kg / 16.31 lb

CARQIS106IB

Data sheet

Woofer inch
6"
