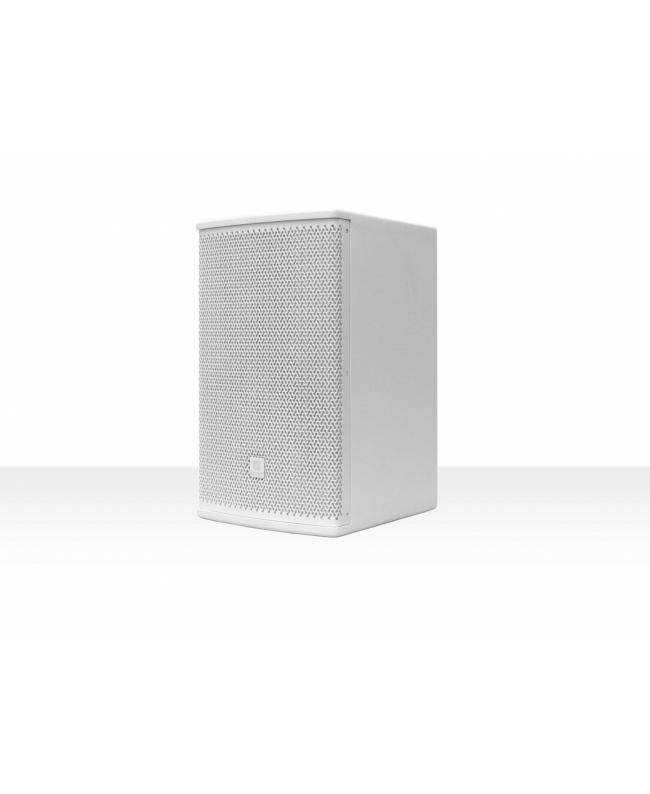

Ecler ARQIS 110IWH Ceiling Speakers

Ecler ARQIS 110IWH

€511.00
Tax included

2-way acoustic speaker, 10” woofer, 1200W

Qty

In Stock

Delivery

Do You want Your order by Wednesday, 27/08/2025? Order within 6 hours and 16 minutes

Free shipping

Compare

wishlist

Ecler ARQIS 110IWH



ARQIS110i is a 2-way wooden loudspeaker cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 300 WRMS @ 8Ω, 10" woofer and 1,7" HF Compression Driver. 35 mm mount socket and 8 x M8 rigging points, allowing for horizontal or vertical mounting options. ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.

Features

  • Full range, 2-way architectural loudspeaker
  • 300 WRMS @ 8Ω
  • 10" low frequency woofer
  • 1,7" high frequency compression driver (rotatable)
  • Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection
  • 35 mm mount socket, compatible with SR12 wall bracket (not included) & TRIPO1 floor stand (not included)
  • U-bracket wall-mount accessory compatible (not included)
  • 12 x M8 cabinet flying points
  • Available in black (RAL 9005) and white (RAL 9003) colour
  • EASE files available

Applications

  • Retail
  • Education
  • Corporate
  • Leisure
  • Sports & Wellness
  • Hospitality

SPECS

SYSTEM

  • Effective Freq. Range 70 Hz-19 kHz (-10dB)
  • Coverage angle / Dispersion 110°x110° (HxV)
  • Power handling 300 W RMS / 1200 W Peak
  • Sensitivity 94 dB (1W/1m)
  • Maximum SPL 119 dB continuous / 125 dB peak
  • Recommended amplifier power  W RMS

TRANSDUCERS

  • Ways 2-ways full range
  • Low frequency driver 10" woofer
  • High frequency driver 1,7" rotatable compression driver
  • Nominal impedance 8Ω

FILTERS

  • Crossover filter 2,1 kHz
  • Recommended High-Pass protection filter
  • 60 Hz with minimum 12 dB / octave filter

PHYSICAL

  • Connection type 1 x Euroblock & 1 x SPEAKON®
  • Installation options Surface, wall, desktop, 35mm mount socket
  • Environmental IP31
  • Enclosure material MDF
  • Grille material Steel
  • Grille fixing system Screw fixation
  • Pan and tilt wall-mount TBC
  • Flying points 12 x M8
  • Operating temperature Min:
  • -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Operating humidity <85% HR
  • Storage temperature
  • Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Storage humidity <90% HR
  • Included accessories 4 x Rubber feet, 4 x screws
  • Optional accessories U-bracket wall-mount accessory compatible (ARQ110UB), 35 mm mount socket compatible with SR12 wall bracket & TRIPO1 floor stand
  • Finished colour White (RAL 9003) or Black (RAL 9005)
  • Dimensions 342.5 x 495 x 345 mm / 13.48 x 19.49 x 13.58 in. (WxHxD)
  • Weight 18.5 kg / 40.78 lb

CARQIS110IW

Data sheet

Woofer inch
10"
