Ecler ARQIS 112IWH Ceiling Speakers

Ecler ARQIS 112IWH

€863.00
Tax included

2-way acoustic speaker with 12” woofer, 2000W

Out of Stock

Free shipping

Compare

wishlist

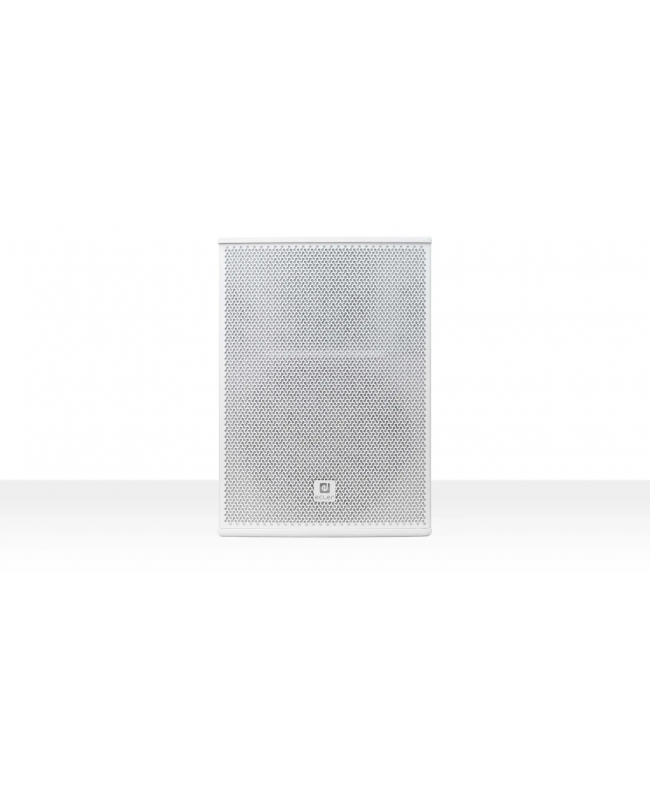

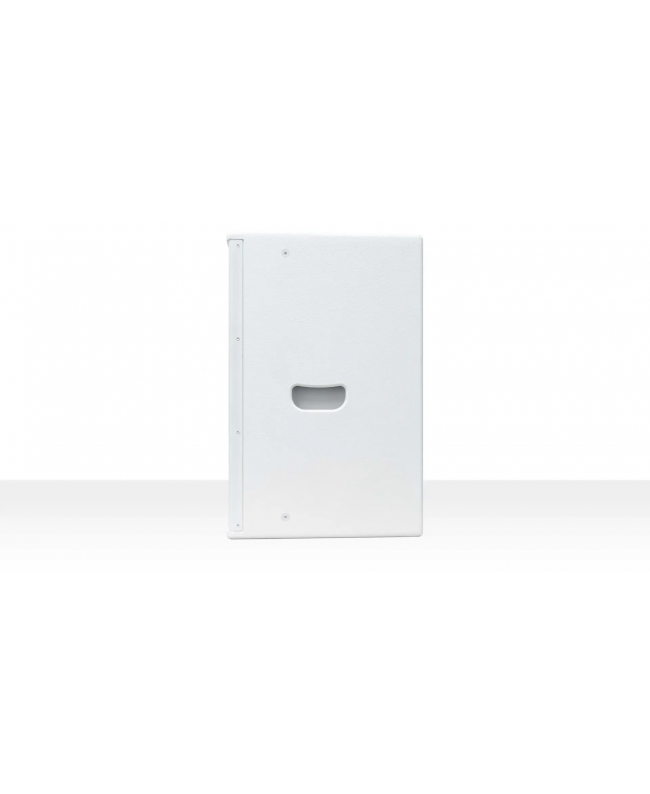

Ecler ARQIS 112IWH



ARQIS112i is a 2-way wooden loudspeaker cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 500 WRMS @ 8Ω, 12" woofer and 1,7" HF Compression Driver. 35 mm mount socket and 8 x M8 rigging points, allowing for horizontal or vertical mounting options. ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must

  • Full range, 2-way architectural loudspeaker
  • 500 WRMS @ 8Ω
  • 12" low frequency woofer
  • 1,7" high frequency compression driver (rotatable)

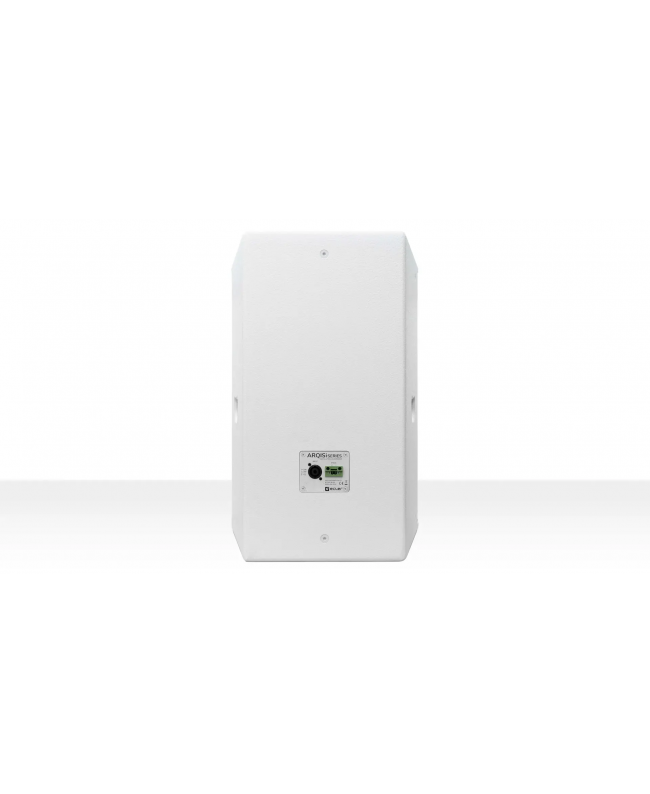

  • Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection
  • 35 mm mount socket, compatible with SR12 wall bracket (not included) & TRIPO1 floor stand (not included)
  • U-bracket wall-mount accessory compatible (not included)
  • 12 x M8 cabinet flying points
  • Available in black (RAL 9005) and white (RAL 9003) colour
  • EASE files available

Applications

  • Retail
  • Education
  • Corporate
  • Leisure
  • Sports & Wellness
  • Hospitality

Specs

SYSTEM

Effective Freq. Range

70 Hz-19 kHz (-10dB)

Coverage angle / Dispersion

120°x110° (HxV)

Power handling

500 W RMS / 2000 W Peak

Sensitivity

96 dB (1W/1m)

Maximum SPL

123 dB continuous / 129 dB peak

Recommended amplifier power

1000 W RMS

TRANSDUCERS

Ways

2-ways full range

Low frequency driver

12" woofer

High frequency driver

1,7" rotatable compression driver

Nominal impedance

8Ω

FILTERS

Crossover filter

2,2 kHz

Recommended High-Pass protection filter

58 Hz with minimum 12 dB / octave filter

PHYSICAL

Connection type

1 x Euroblock & 1x SPEAKON®

Installation options

Surface, wall, desktop, 35mm mount socket

Environmental

IP31

Enclosure material

MDF

Grille material

Steel

Grille fixing system

Screw fixation

Pan and tilt wall-mount

TBC

Flying points

12 x M8

Operating temperature

Min: -10°C ; 14°F

Max: 40°C ; 104°F

Operating humidity

<85% HR

Storage temperature

Min: -10°C ; 14°F

Max: 40°C ; 104°F

Storage humidity

<90% HR

Included accessories

4 x rubber feet, 4 x screws

Optional accessories

U-bracket wall-mount accessory compatible (ARQ112UB), 35 mm mount socket compatible with SR12 wall bracket & TRIPO1 floor stand

Finished colour

White (RAL 9003) or Black (RAL 9005)

Dimensions

403 x 565 x 380 mm / 15.87 x 22.24 x 14.96 in. (WxHxD)

Weight

23.8 kg / 52.47 lb

Pieces per box

1 piece

Shipping dimensions

650 x 470 x 470 mm / 25.59 x 18.50 x 18.50 in. (WxHxD


CARQIS112IW

Data sheet

Woofer inch
10"
Giorni di elaborazione
2
