DAP EDCS-626 Black Ceiling Speakers
  • New

DAP EDCS-626 Black


€19.00
Tax included

Passive 6 ceiling speaker - black


Qty

In Stock

Delivery

Do You want Your order by Friday, 01/05/2026? Order within 3 hours and 19 minutes



wishlist

DAP EDCS-626 Black

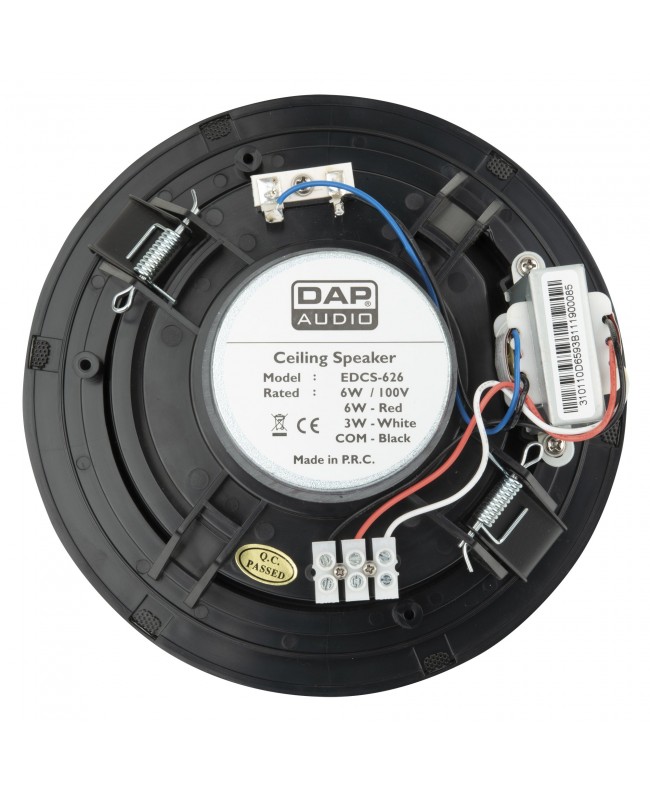

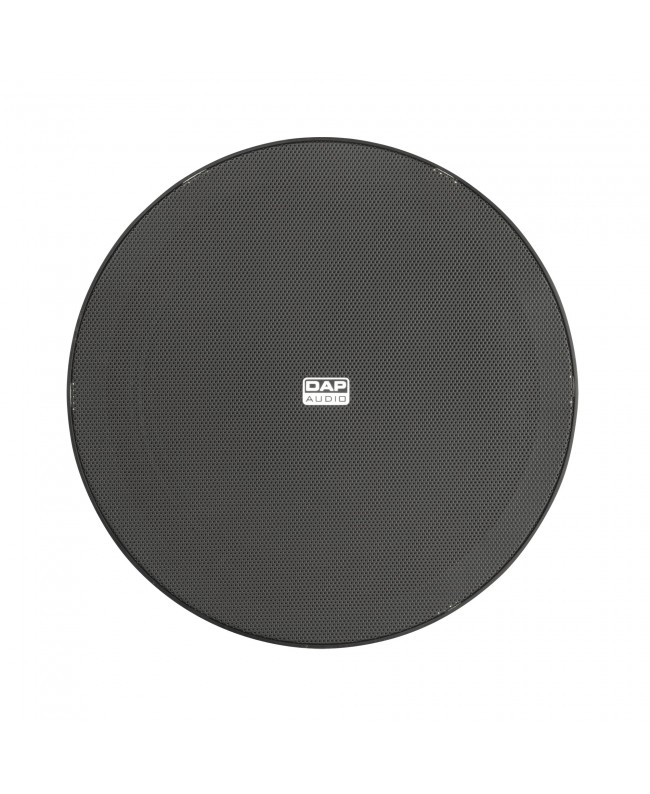

The DAP EDCS-626 is a 6-inch recessed ceiling speaker suitable for 100 V installations. The volume can be adapted to match the volume of other components in the system using the multiple power taps on the transformer. The DAP EDCS series combine a good sound quality and stylish design in an affordable solution for commercial audio installations.

The EDCS-626 is available in both white and black enclosures and are the right tool for any installation audio job. It has a small Ø 145 mm mounting size and mounting is easy due to the integrated clamp.

  • 6 W peak power - 100 V
  • Two power taps (3 and 6 W)
  • Modern and stylish ABS design with integrated mounting clamp
  • Available in either black or white
  • Peak Input Power: 6 W
  • Transformer: 100 V
  • Line Transformer Taps: 3 / 6 W
  • Passive Input Connection: Terminal
  • Speaker System: Coaxial
  • Speaker Sensitivity (1 W/1 m): 93 dB
  • Speaker Impedance: 8 Ω
  • Maximum SPL at 1 m: 97 dB
  • Frequency Response Minimum: 100 Hz
  • Frequency Response Maximum: 15000 Hz
  • Woofer Diameter: 6
  • Height (mm): 74 mm
  • Width (mm): 186 mm
  • Length (mm): 186 mm
  • Weight: 0.76 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: ABS
  • Mounting Size: Ø 170 mm
  • Colour: Black
  • Mounting Options: Ceiling

D6593B

Data sheet

Woofer inch
6"
Color
Black
