DAP DCS-8240-16
  • New

DAP DCS-8240-16


€108.50
Tax included

Passive 8 ceiling speaker - white


Qty

In Stock

Delivery

Do You want Your order by Monday, 03/08/2026? Order within 1 hours and 3 minutes

Free shipping


wishlist

DAP DCS-8240-16

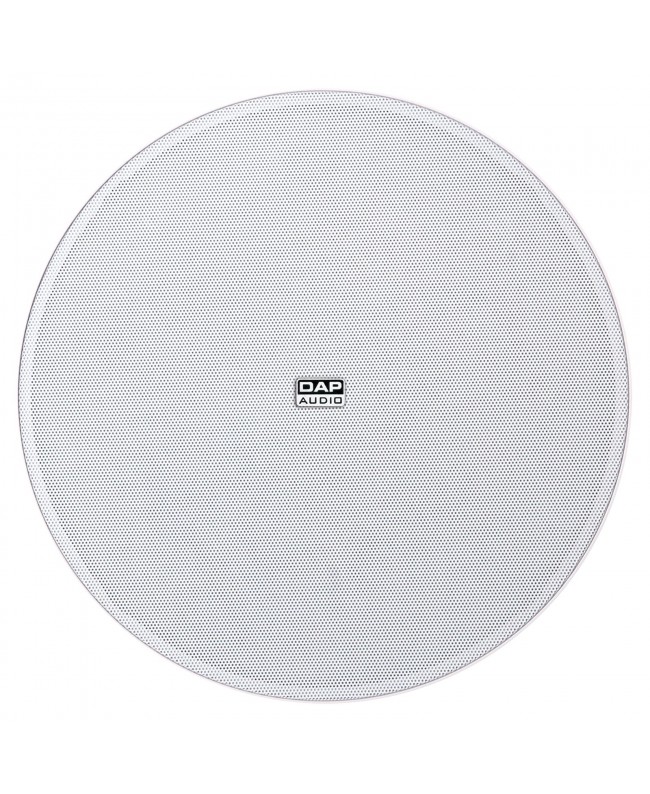

The DAP DCS-8240-16 is a passive 8-inch design ceiling speaker with 16 Ohm impedance. This white recessed ceiling speaker is designed with almost no rim around the grille and the depth of the grille is also very limited. This makes that this unit is almost invisible after mounting.

The DCS-8240-16 is a 2-way system with a high peak power of 80-watt (40-watt RMS). Besides an 8-inch low driver, it also is equipped with a 1 Neodymium high driver for a clear full-range sound.

  • 100 W RMS/200 W peak power - 16 Ω - 2-way
  • Ultra slim rim around the grille
  • Magnet detachable and small depth grille
  • Protection against solid objects 1 mm (IP40)
  • RMS Input Power: 100 W
  • Peak Input Power: 200 W
  • Passive Input Connection: Terminal
  • Speaker System: 2-way
  • Speaker Sensitivity (1 W/1 m): 90 dB
  • Speaker Impedance: 16 Ω
  • Maximum SPL at 1 m: 110 dB
  • Frequency Response Minimum: 50 Hz
  • Frequency Response Maximum: 20000 Hz
  • Woofer Diameter: 8
  • Woofer Voice Coil Diameter: 1.5
  • Woofer Magnet Type: Ferrite
  • Compression Driver Diameter: 1
  • Compression Driver Voice Coil: 1
  • Compression Driver Magnet Type: Neodymium
  • Height (mm): 130 mm
  • Width (mm): 297 mm
  • Length (mm): 297 mm
  • Depth (mm): 128 mm
  • Installation Depth (Excl. Connector): 105 mm
  • Diameter: 245 mm
  • Material: Plastic
  • Colour: White
  • Weight: 2.61 kg
  • IP Rating: IP40
  • Speaker Grille Material: Aluminium
  • Mounting Options: Ceiling

D6584

Data sheet

Woofer inch
8"
Color
White
Giorni di elaborazione
3

Specific References
