DAP DCS-6230-16

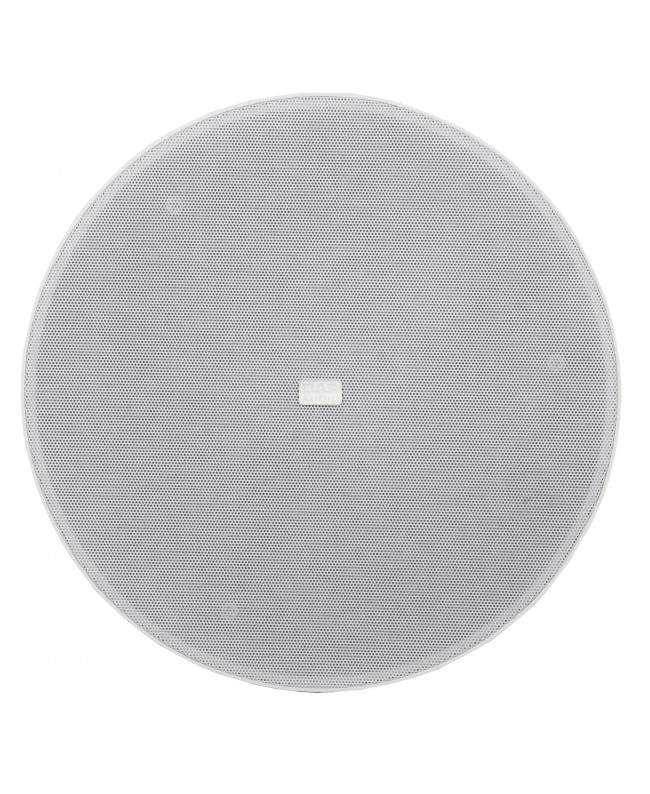

The DAP DCS-6230-16 is a passive 6-inch design ceiling speaker with 16 Ohm impedance. This white recessed ceiling speaker is designed with almost no rim around the grille and the depth of the grille is also very limited. This makes that this unit is almost invisible after mounting.

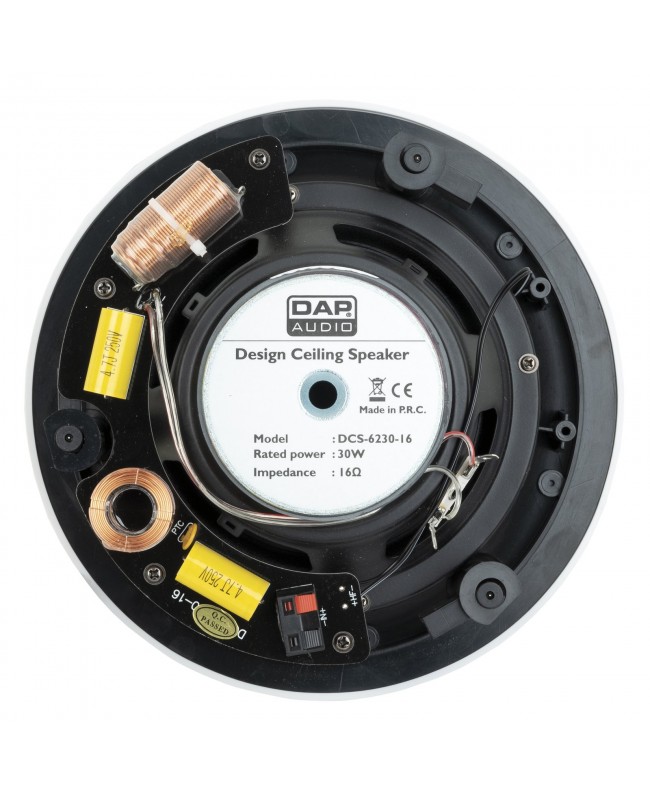

The DCS-6230-16 is a 2-way system with a high peak power of 60-watt (30-watt RMS). Besides an 6-inch low driver, it also is equipped with a 0.75-inch Neodymium high driver for a clear full-range sound.

  • 30 W RMS/60 W peak power - 16 Ω - 2-way
  • Ultra slim rim around the grille
  • Magnet detachable and small depth grille
  • Protection against solid objects 1 mm (IP40)
  • RMS Input Power: 30 W
  • Peak Input Power: 60 W
  • Passive Input Connection: Terminal
  • Speaker System: 2-way
  • Speaker Sensitivity (1 W/1 m): 86 dB
  • Speaker Impedance: 16 Ω
  • Maximum SPL at 1 m: 101 dB
  • Frequency Response Minimum: 46 Hz
  • Frequency Response Maximum: 19000 Hz
  • Woofer Diameter: 6
  • Woofer Voice Coil Diameter: 1
  • Woofer Magnet Type: Ferrite
  • Compression Driver Diameter: 0.75
  • Compression Driver Voice Coil: 0.5
  • Compression Driver Magnet Type: Ferrite
  • Dispersion Angle (Horizontal): 80°
  • Dispersion Angle (Vertical): 80°
  • Height (mm): 102 mm
  • Width (mm): 237 mm
  • Length (mm): 237 mm
  • Depth (mm): 102 mm
  • Installation Depth (Excl. Connector): 98 mm
  • Material: Plastic
  • Colour: White
  • Weight: 1.5 kg
  • IP Rating: IP40
  • Speaker Grille Material: Aluminium
  • Mounting Options: Ceiling

D6585

Data sheet

Woofer inch
6"
Color
White
