Ecler MIA-81


€531.00
Tax included

Mini array Column Loudspeaker


Qty

In Stock

Delivery

Do You want Your order by Wednesday, 27/08/2025? Order within 10 hours and 44 minutes

Free shipping


wishlist

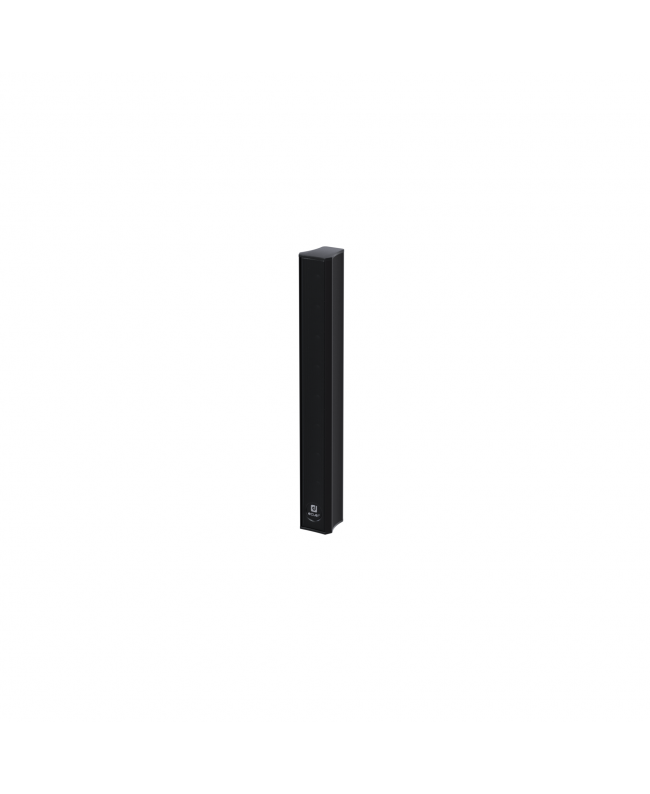

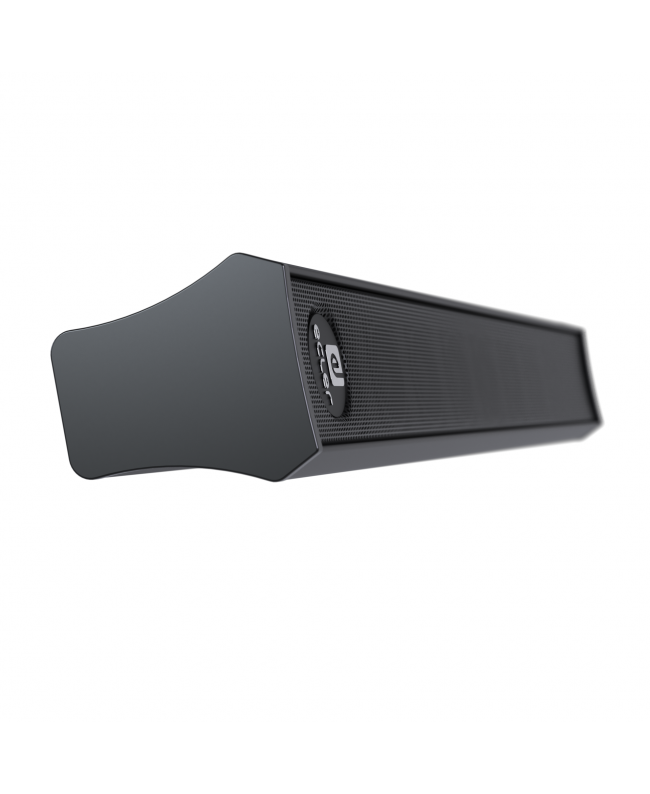

Ecler MIA-81







MIA-81 is a an elegant, unique a compact design column loudspeaker, built in a single aluminium piece to avoid vibrations and mechanical stress. MIA-81 includes 8x1.5” drivers with an RMS rating of 40W and behave as a mini line array with the disposition of 8 drivers per column and the possibility of working in 16Ω or 64Ω by selecting them behind the logo without the need to remove the grille. MIA-81 is available in black and white colour, is IP44 graded ready for outdoor applications. As a highlight, the included FLATY bracket allows the column to be mounted against the wall. FLATY is made of stainless steel and allows to be adjusted at any point along the length of the column.

Features

  • Column passive loudspeaker for surface mounting.

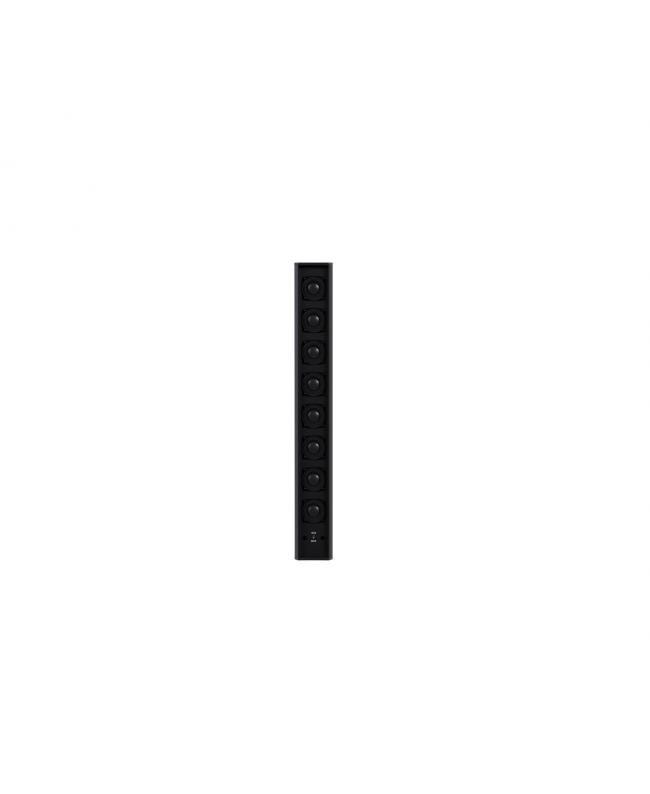

  • 8x1.5" woofers Mini In-line Array.
  • Possibility of working in 16 Ω or 64 Ω by selecting them behind the logo without the need to remove the grille.
  • Aluminium one-piece non resonant compact enclosure.
  • Stack Output.
  • FLATY bracket included for wall mounting. Made out of stainless-steel that permits adjusting the height at any point of the length of the column.
  • Weather-protected with an IP-44 rating.
  • Available in black (RAL9005) and white (RAL9003)
  • EASE files available.

Applications

  • Retail
  • Education
  • Corporate
  • Leisure
  • Sports & Wellness
  • Houses of Worship
  • Hospitality

Specs

SYSTEM

  • Effective Freq. Range 175Hz-20kHz (-10dB)
  • Coverage angle / Dispersion 235° x 58° (HxV)
  • Power handling 40 W RMS / 160 W Peak
  • Sensitivity 98 dB
  • Maximum SPL 114 dB continous / 120 dB peak
  • Recommended amplifier power 80W RMS

TRANSDUCERS

  • Ways 1-way full range
  • Driver 8 x 1.5" Loudspeaker
  • Nominal impedance 16Ω / 64Ω

PHYSICAL

  • Connection type

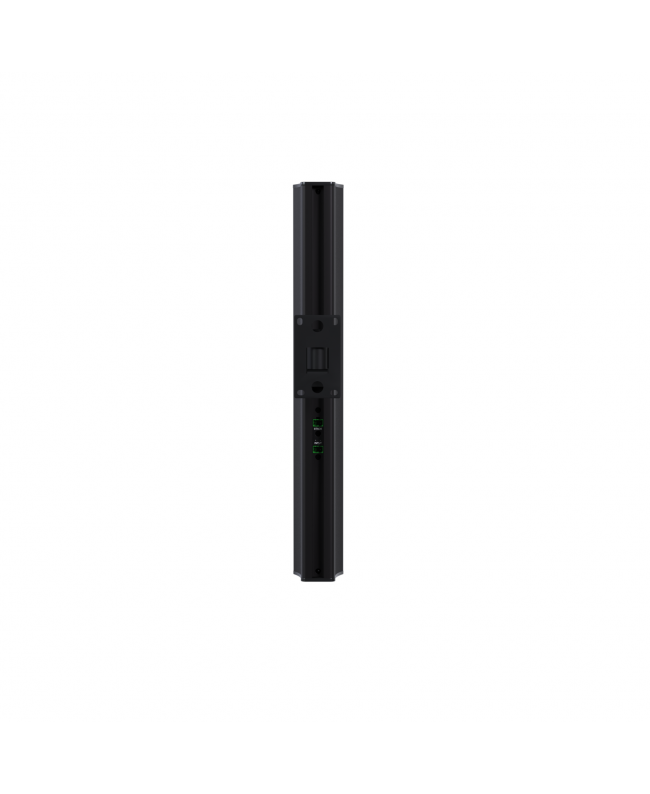

  • Double INPUT/LINK connector, Euroblock type
  • Power type selector
  • Front selection by toggle switch
  • Installation options
  • Surface / Wall mounting
  • Environmental IP44
  • Enclosure material
  • Aluminium
  • Grille material Aluminium
  • Grille fixing system Side Insertion mount system
  • Mounting system Stainless Steel FLAT Wall Bracket
  • Operating temperature Min: 0°C ; 32°F
  • Max: 35°C ; 95°F
  • Operating humidity <85% HR
  • Storage temperature
  • Min: -10°C ; 14°F
  • Max: 50°C ; 122°F
  • Storage humidity <90% HR
  • Included accessories FLATY Wall-mount bracket, 2x Euroblock connector
  • Finished colour White (RAL9003) or Black (RAL9005)
  • Dimensions
  • 58 x 448 x 67 mm / 2.28 x 17.64 x 2.64 in. (WxHxD)
  • Weigh: 1.2 kg / 1.64 lb
  • Pieces per box 1
  • Shipping dimensions
  • 135 x 655 x 160 mm / 5.31 x 25.79 x 6.30 in. (WxHxD)
  • Shipping weight
  • 1.9 kg / 4.18 lb

CMIA81BK
