Omnitronic Set ROD-1283

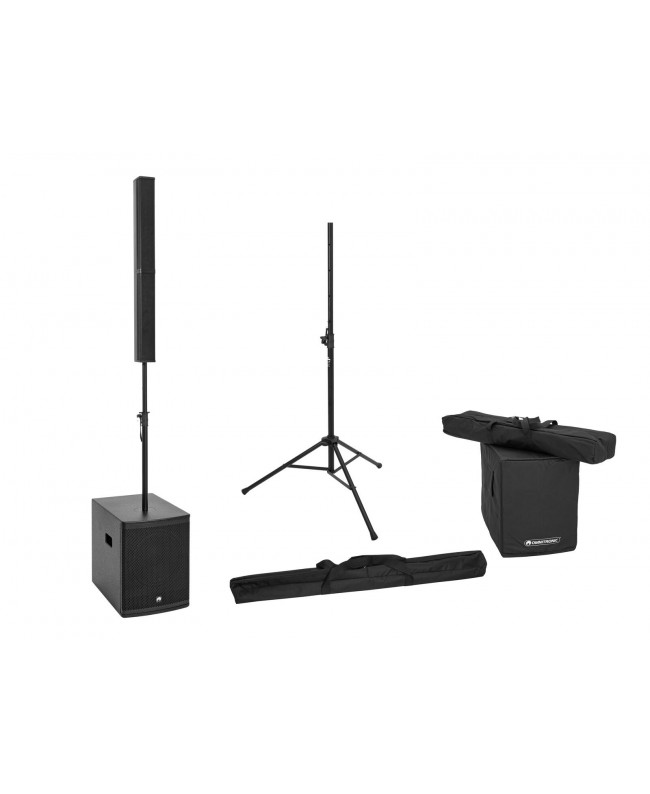

Scope of delivery

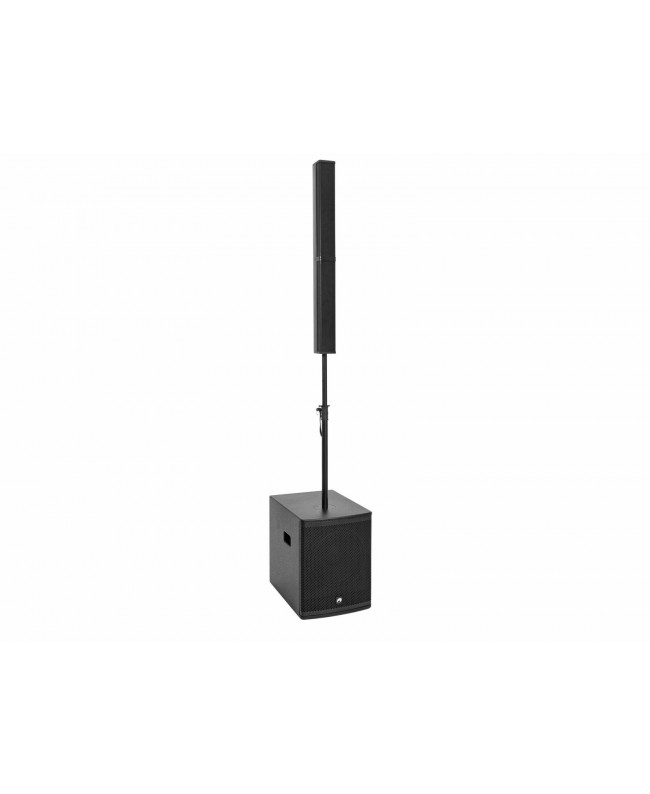

1 x OMNITRONIC ROD-1283 Active Column Speaker System

• 1 x bass
• 2 x top
• 1 x distance tube
• 1 x power cord
• 2 x speaker cable
• 2 x tie strap
• 1 x user manual
• 1 x declaration of conformity

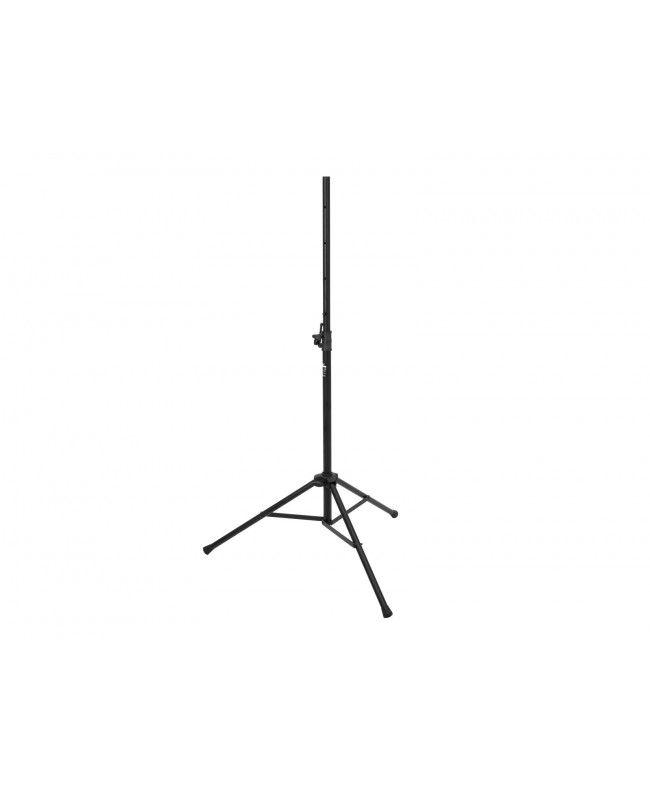

1 x OMNITRONIC ROD-1283 Speaker Stand

• 1 x stand
• 1 x user manual

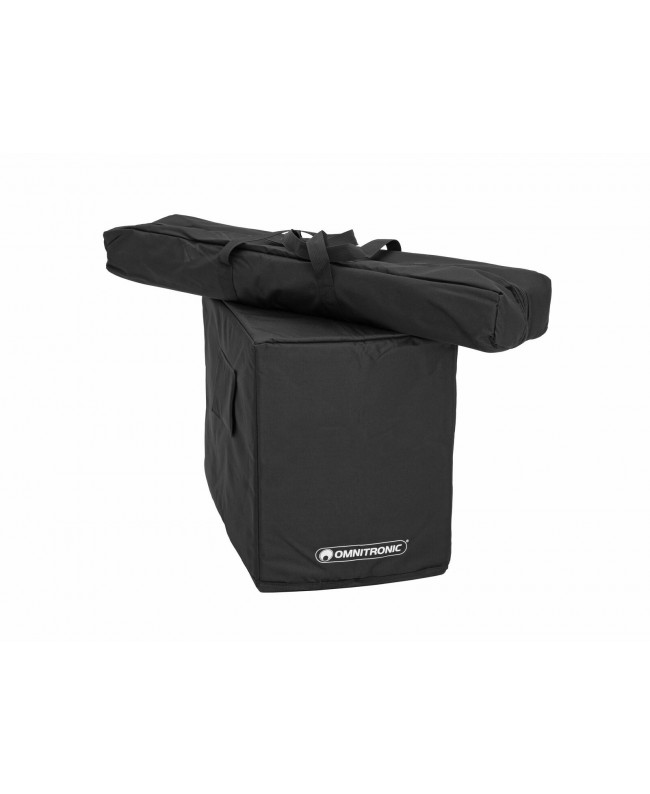

1 x OMNITRONIC ROD-1283 Cover set

• 2 x bag

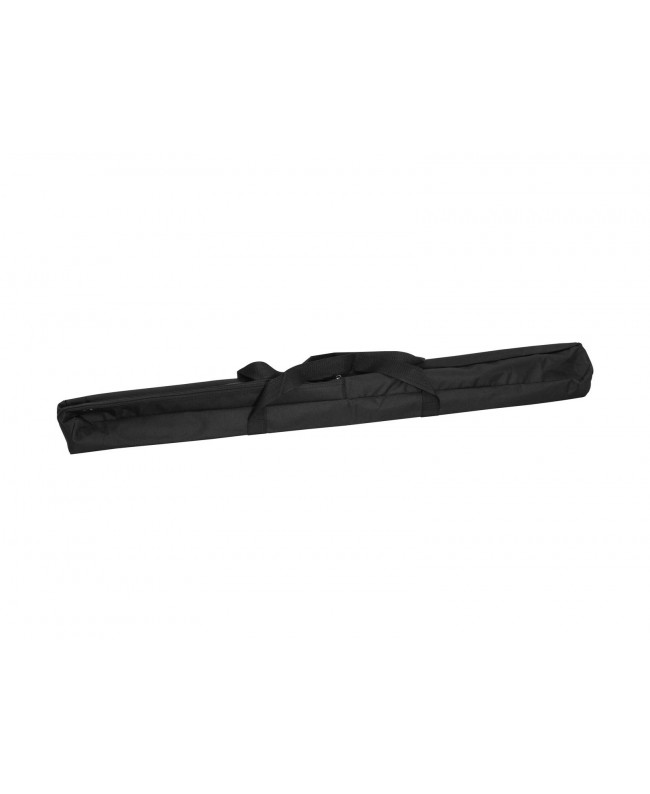

1 x OMNITRONIC BOB Transport Bag for Tripod/Distance Tube

• 1 x bag

• Weight: 33.26 kg
• Output power: 800 W RMS system
• Frequency range: 40 - 20000 Hz system
• Max. SPL: 128 dB system
• DSP: Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ
• Weight: 25.90 kg
• Frequency range: 40 - 150 Hz
• Attachment system: M20 thread
• Speaker: 1 x woofer 12 with ferrit magnet, Basket material: steel, Voice coil lows 2.5, Conematerial: cardboard/paper
• Type of speaker: Subwoofer
• Type of construction: Vented
• Recessed carrying handle: 2 pc/pcs
• Transport aid: 4 x plastic feet
• Material: MDF (medium density fiberboard), painted
• Color: Black, textured coating
• Material thickness: 16 mm
• Dimensions: Width: 37 cm, Depth: 52 cm, Height: 48 cm
• Weight: 22.5 kg
• Power supply: 230 V AC, 50 Hz
• Power consumption: Max. 400 W
• Output power: 1 x 500 W RMS LF, 2 x 150 W RMS (8 ohms) HF, 1 x 300 W RMS (4 ohms) HF
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug included
• Device fuse: 5 x 20 mm, T 3.15 A fuse replaceable
• DSP: Digital signal processor
• DSP presets: MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT
• Cooling: 1 x low-noise cooling fan
• Filter: Low cut: 80 Hz
• Control: Bluetooth
• Bluetooth: Version: 5.3 with stereo link (TWS)
• Bluetooth device name: ROD-1283
• Range: Bluetooth: range up to 10m in buildings
• Carrier frequency: 2.4 GHz
• Circuitry: Class D
• Display type: Multicolor LCD display
• Control elements: Power switch, encoder, menu, BACK button
• Controls: Overheat; short-circuit; DC voltage; limiter
• Status LED: Limit
• Connections: Input: mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line via 1 x stereo RCA, Output: line via 1 x 3-pin XLR (M) mounting version, Output: top via 2 x speaker built-in socket (F)
• Crossover frequency: 150 Hz
• Power: Program: 160W, Rated: 80W AES
• Frequency range: 150 - 20000 Hz
• Sensitivity: 90 dB (1W/1m)
• Dispersion angle: 100° x 20°
• Impedance: 8 ohms top
• Attachment system: Flange: Ø 25mm
• Connections: Input: top via 1 x speaker built-in socket (F), Link: special connector
• Speaker: 4 x full range loudspeaker 3 with neodymium magnet, Basket material: steel, Voice coil full range loudspeaker 0.75, Conematerial: cardboard/paper
• Type of speaker: Column speaker
• Type of construction: Closed Box
• Material: Plastic hard
• Color: Black
• Dimensions: Width: 8.5 cm, Depth: 10.5 cm, Height: 45 cm
• Weight: 1.50 kg
• Height: Maximum: 95 cm, Minimum: 59 cm, Adjustable in 4 steps with locking pin
• Type (general stands): Speaker stand/manual
• Material: Steel, painted
• Cable construction: 3 x 0.75 mm² H05VV-F
• Cable length: 1.8 m
• Cable construction: 2 x 0.75 mm² speaker cable
• Cable length: 2 m, 5 m
• Maximum carrying capacity: 14 kg
• Height: Maximum: 150 cm, Minimum: 90 cm, with locking pin
• Attachment system: Ø 25mm
• Type (general stands): Speaker stand/manual
• Material: Steel
• Color: Black
• Transport dimensions: 82 cm x 12 cm x 9 cm
• Weight: 1.95 kg
• Material: Nylon
• Color: Black
• Weight: 1.00 kg
• Material: Textile
• Color: Black
• Dimensions: Length: 106 cm, Width: 9 cm, Depth: 7 cm
• Weight: 0.19 kg
