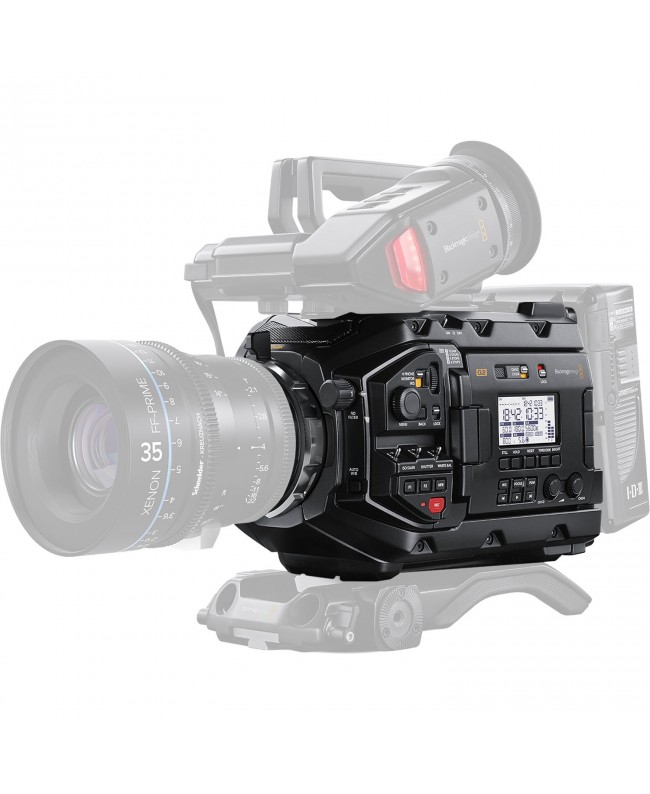

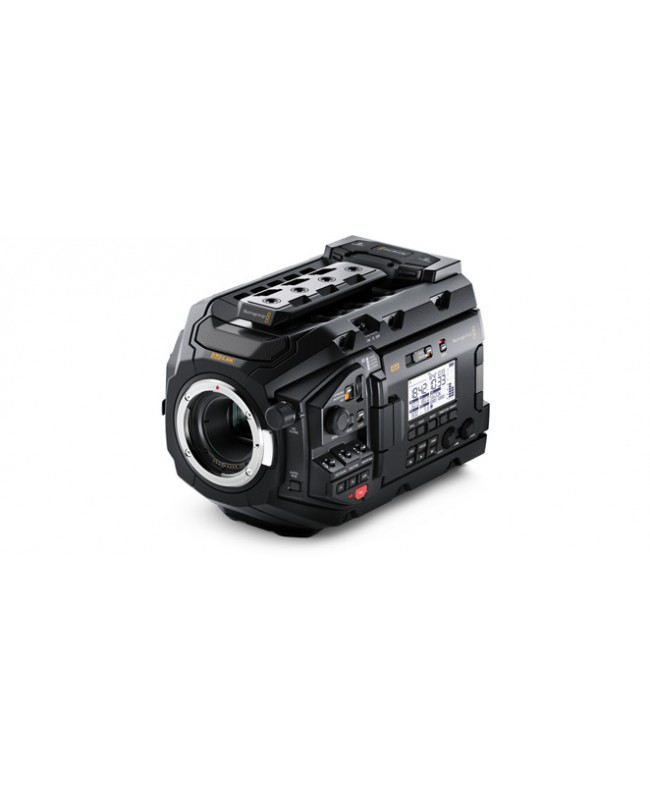

URSA Mini Pro 4.6K G2 is a next generation digital film camera with updated electronics and a high performance 4.6K HDR image sensor for shooting at up to 300 frames per second. You get a Super 35mm 4.6K sensor with 15 stops of dynamic range, built in optical ND filters, interchangeable EF lens mount that can be swapped for optional PL, B4 or F mounts, Blackmagic RAW and ProRes recording to dual CFast or dual SD cards, and an innovative USB-C expansion port for recording directly to external disks. In addition, URSA Mini Pro 4.6K G2 features a massive set of external broadcast style controls, backlit status display, foldout touchscreen monitor and more!
Camera Features
Effective Sensor Size
25.34mm x 14.25mm (Super35)
Lens Mount
EF mount included. Interchangeable with optional PL, B4 and F lens mounts.
Lens Control
Electronic control via EF mount pins or 12pin broadcast connector for compatible lenses
Dynamic Range
15 Stops.
Shooting Resolutions
4608 x 2592, 4608 x 1920 (4.6K 2.40:1), 4096 x 2304 (4K 16:9),
4096 x 2160 (4K DCI),
3840 x 2160 (Ultra HD),
3072 x 2560 (3K Anamorphic),
2048 x 1152 (2K 16:9),
2048 x 1080 (2K DCI),
1920 x 1080
Frame Rates
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
High Speed Frame Rates
Blackmagic RAW 8:1
4.6K Full - Up to 120 fps
UHD Windowed - Up to 150 fps
HD Windowed - Up to 300 fps
ProRes 422 HQ
4.6K Full - Up to 80 fps
UHD Windowed - Up to 120 fps
HD Windowed - Up to 240 fps
Built in ND Filters
Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop ND filters.
Focus
Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus.
Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screen Dimensions
4 inch
Screen Type
LCD capacitive touchscreen.
Metadata Support
Automatically populated lens data from electronic EF, B4 and i/Technology compatible PL lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

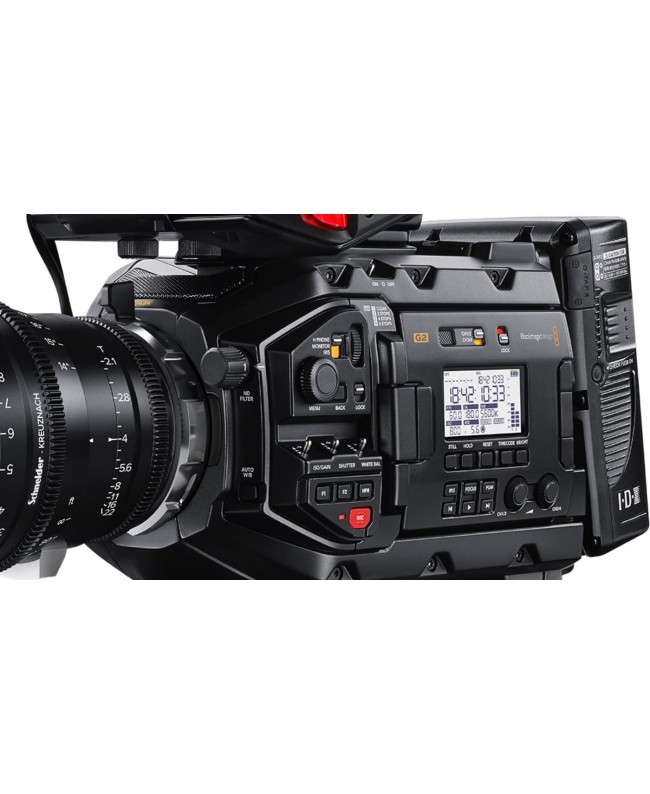

Controls
Touchscreen menus on 4 inch screen. Push buttons for other controls. 2 assignable shortcut keys.
Timecode Clock
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

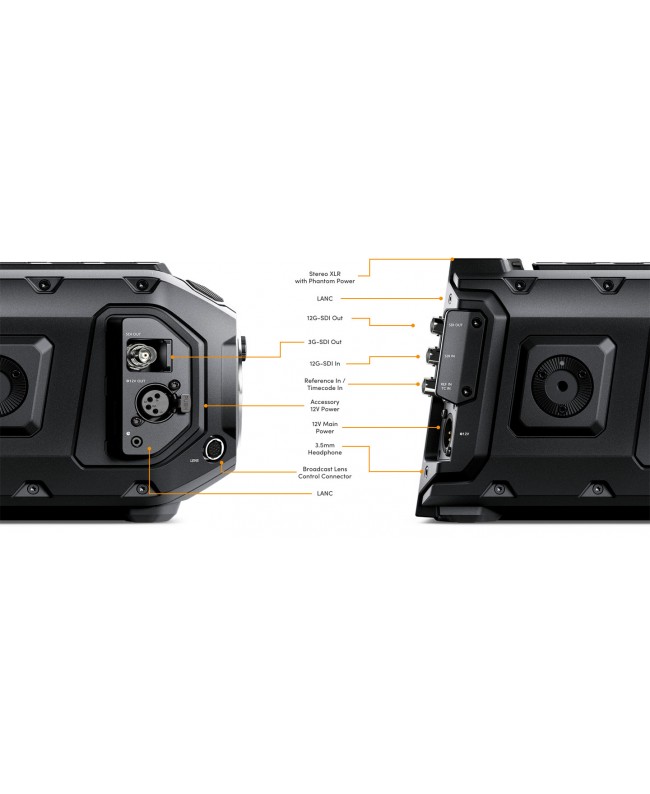

Connections
Total Video Inputs
1 x SDI
Total Video Outputs
1 x SDI, 1 x SDI Monitoring.
SDI Rates
1.5G, 3G, 6G, 12G.
Analog Audio Inputs
2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
Analog Audio Outputs
1 x 3.5mm headphone jack, supports iPhone microphone for talkback.
Reference Inputs
Tri-Sync/Black Burst/Timecode.
Remote Control
2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
Computer Interface
USB Type-C 3.1 Gen 1 for external drive recording and software updates.
SMPTE 292M, SMPTE 424 level A and B, SMPTE 2081-1, SMPTE 2082-1
SDI Audio Sampling
48 kHz and 24 bit
Media
Media
2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes recording.
Media Format
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Codecs
Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q5,
Apple ProRes XQ QuickTime, Apple ProRes 444 QuickTime,
Apple ProRes 422 HQ QuickTime, Apple ProRes 422 QuickTime,
Apple ProRes 422 HQ QuickTime, Apple ProRes 422 LT QuickTime and Apple ProRes 422 Proxy QuickTime.
Control
External Control
Blackmagic SDI Control Protocol, iPad control, Bluetooth control, 2 x 2.5mm LANC for lens and record control.
Color Corrector
Color Corrector
DaVinci YRGB.
Talkback and Tally
Talkback
SDI Channels 15/16 and iPhone headset.
Live Tally Indicator
Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.
Storage Features
Storage Type
2 x CFast 2.0
2 x SD UHS-II cards
1 x high speed USB-C expansion port for external media.
Storage Rates
Storage rates based on 30 frames per second.
4608 x 2592
Blackmagic RAW 3:1 - 183 MB/s
Blackmagic RAW 5:1 - 110 MB/s
Blackmagic RAW 8:1 - 68 MB/s
Blackmagic RAW 12:1 - 46 MB/s
Blackmagic RAW Q0 - 110 to 274 MB/s *
Blackmagic RAW Q5 - 27 to 78 MB/s **
Apple ProRes XQ - 360 MB/s
Apple ProRes 444 - 238 MB/s
Apple ProRes HQ - 158 MB/s
Apple ProRes 422 - 106 MB/s
Apple ProRes LT - 73.5 MB/s
Apple ProRes Proxy - 32.3 MB/s
3840 x 2160
Blackmagic RAW 3:1 - 127 MB/s
Blackmagic RAW 5:1 - 76 MB/s
Blackmagic RAW 8:1 - 48 MB/s
Blackmagic RAW 12:1 - 32 MB/s
Blackmagic RAW Q0 - 76 to 191 MB/s *
Blackmagic RAW Q5 - 19 to 55 MB/s **
Apple ProRes XQ - 250 MB/s
Apple ProRes 444 - 165 MB/s
Apple ProRes HQ - 110 MB/s
Apple ProRes 422 - 73.6 MB/s
Apple ProRes LT - 51 MB/s
Apple ProRes Proxy - 22.4 MB/s
1920 x 1080
Blackmagic RAW 3:1 - 33 MB/s
Blackmagic RAW 5:1 - 20 MB/s
Blackmagic RAW 8:1 - 12 MB/s
Blackmagic RAW 12:1 - 8 MB/s
Blackmagic RAW Q0 - 20 to 49 MB/s *
Blackmagic RAW Q5 - 5 to 14 MB/s **
Apple ProRes XQ - 62.5 MB/s
Apple ProRes 444 - 41.25 MB/s
Apple ProRes HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes LT - 12.75 MB/s
Apple ProRes Proxy - 5.6 MB/s
Recording Formats
Blackmagic RAW Q0, Q5, 3:1, 5:1, 8:1 and 12:1 at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3840 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with film, extended video or video dynamic range.
ProRes at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3840 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with film, extended video or video dynamic range.
Constant Quality setting Q0 storage rates quoted are indicative only, based on a 2:1 - 5:1 compression range.
Constant Quality setting Q5 storage rates quoted are indicative only, based on a 7:1 - 20:1 compression range.
Actual storage rates are entirely dependent on image subject matter.
Software
Software Included
Blackmagic OS
DaVinci Resolve Studio for Mac and Windows including activation key
Blackmagic Camera Setup
Blackmagic RAW Player
Blackmagic RAW QuickLook Plugin
Blackmagic RAW SDK
Operating Systems
Mac icon
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows Icon
Windows 8.1 and 10.
Power Requirements
Power Supply
1 x External 12V power supply. 12 pin Molex connector for rear battery plate.
External Power Input
1 x 4 pin XLR port for external power or battery use.
1 x 12 pin Molex connector on rear battery plate.
Custom V-mount battery plate with D-tap +12V regulated output from camera.
Power
Rear camera mount compatible with industry standard V-mount or gold mount battery plates.
Accessories
Optional Accessories
URSA Mini Pro PL, EF, B4 and F Mounts
URSA Mini Pro Shim Kit
URSA Mini Shoulder Kit including top handle and extender arm
