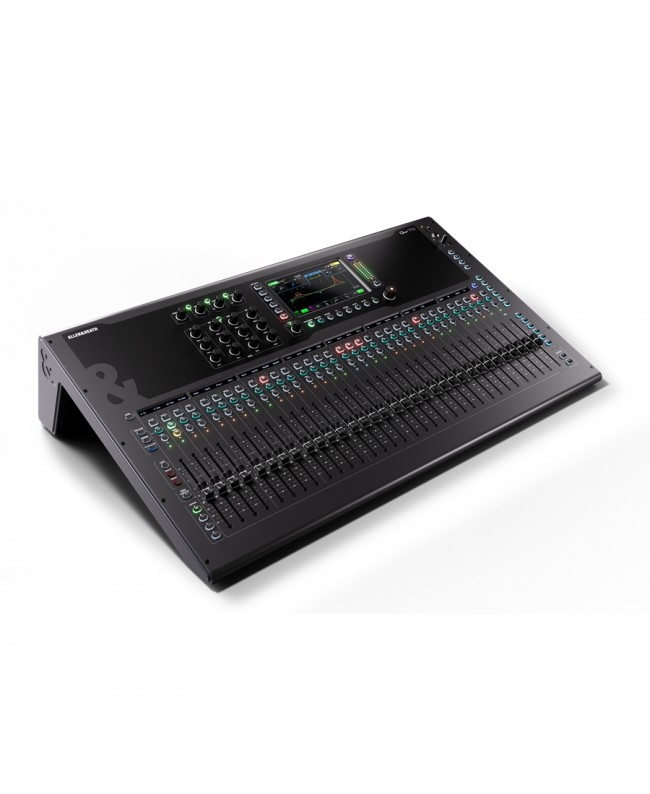

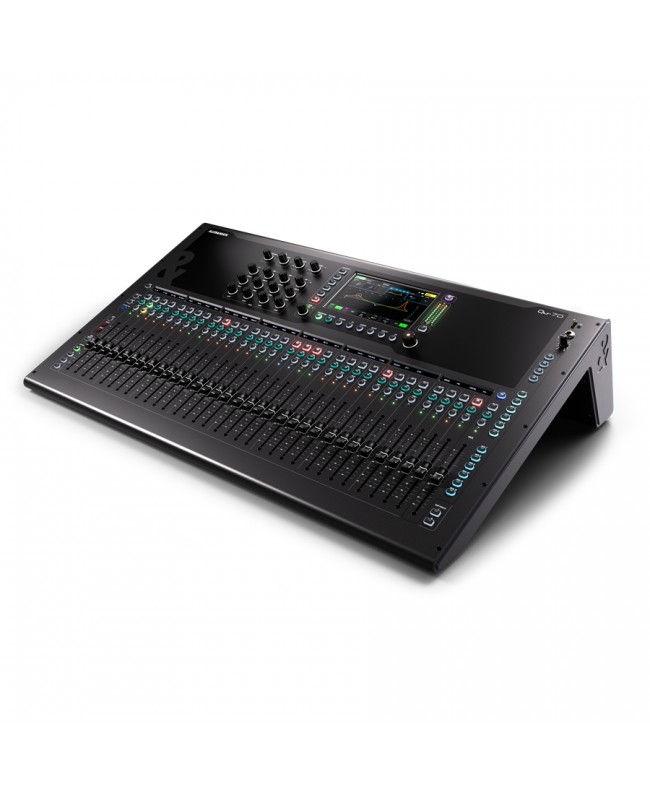

Allen & Heath QU-7D

The Allen & Heath Qu-7 is a 96kHz digital mixer with 33 motorized faders, 38 inputs (32 mono mic/line, 3 stereo) and 20 XLR outputs. It offers 12 mixes (6 mono, 6 stereo), 4 matrices and 6 FX engines. Multitrack recording and playback on DAW via USB-C 32x32, SD card (up to 32 tracks) and USB-A. 7” capacitive touchscreen, channel display and chromatic LED meters, 8 SoftKeys. SLink port for connection to Everything I/O stagebox. With Gain Assistant, Feedback Assistant, and 32-channel Automatic Mic Mixer, it is ideal for large events, theaters, and FOH control rooms.

Allen & Heath Qu-7 is the ultimate choice for sound professionals working on major stages, in complex installations, or in advanced broadcast control rooms. With 33 motorized faders and 32 Mic/Line inputs, it is the most complete model in the new generation Qu series, designed to guarantee power, reliability, and absolute flexibility.

At the heart of the system is the 96kHz XCVI engine developed using FPGA technology, which ensures high performance, crystal-clear sound quality, and imperceptible latency. The mixing structure is articulated over a total of 38 inputs (32 mono, 3 stereo), 12 mixes (6 mono + 6 stereo), 4 matrices, and 6 effects engines with dedicated returns: every resource is designed to handle professional audio scenarios with maximum detail and control.

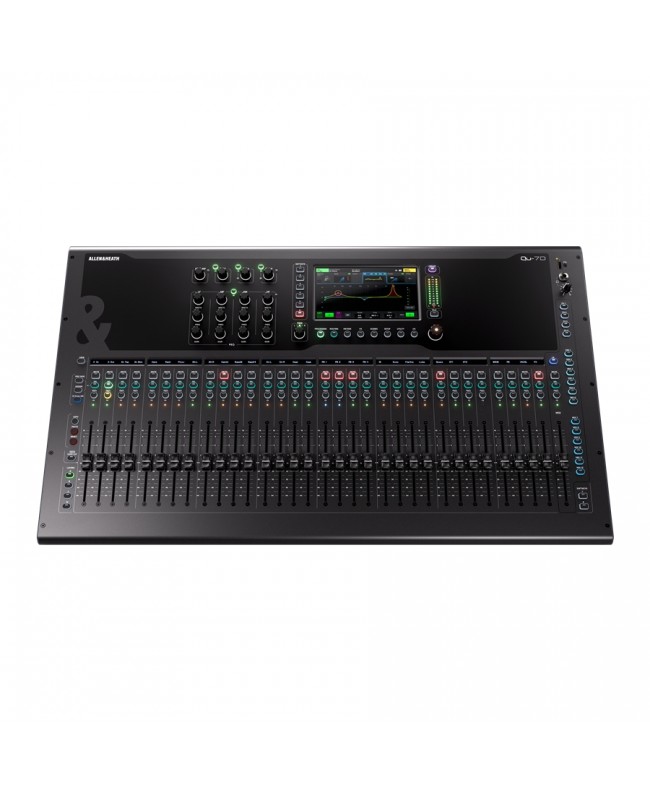

The Qu-7 offers a complete and fluid control surface. The 33 motorized 100 mm faders are arranged in 4 customizable layers, while channel displays and color LED meters simplify signal reading and management. The 7” capacitive touchscreen has been completely redesigned to provide a fast, intuitive visual interface optimized for use in high-pressure situations.

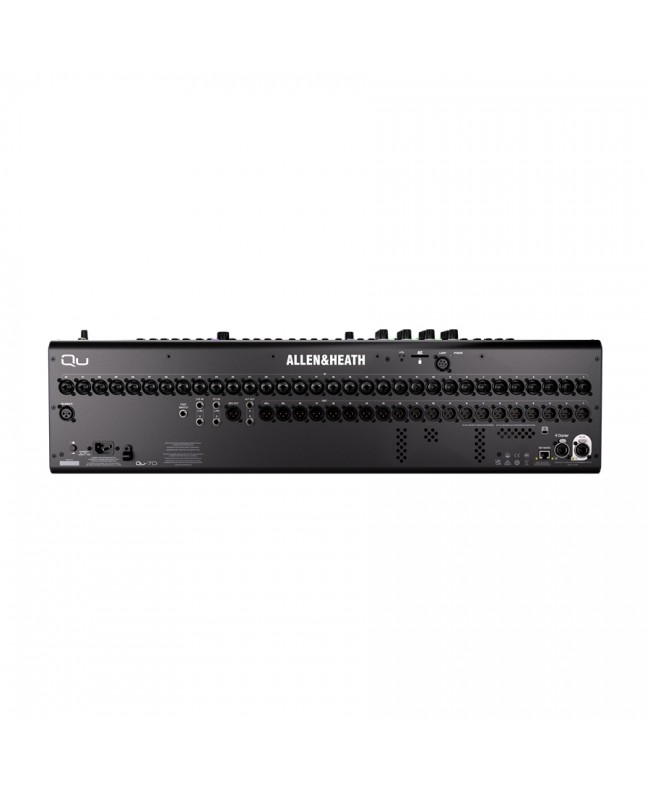

In terms of connectivity, the Qu-7 has everything you need: 32 XLR/Jack combo inputs, 2 stereo TRS inputs, 20 XLR outputs, 2 TRS outputs, 1 AES3 digital output, and an XLR talkback port. The USB-C interface allows 32x32 recording and playback on computers, while the SD slot supports multitracking up to 32 channels at 48kHz or 16 at 96kHz. The USB-A port allows for quick stereo recording and backup.

Finally, the 128x128 SLink port opens the door to the Everything I/O world, with full compatibility with Allen & Heath stageboxes at 48kHz (dSnake) and 96kHz (GX and DX), for guaranteed scalability.

Smart features include Gain Assistant for precise automatic input level balancing, Feedback Assistant for quick elimination of critical frequencies, and a built-in 32-channel AMM (Automatic Mic Mixer) for transparent microphone management in vocal events.

The Qu-7 can be controlled remotely via the free Qu-MixPad (for sound engineers) and Qu4You (for musicians) apps on Windows, macOS, iOS, and Android devices. With its features, it sets the professional standard for those looking for a digital mixer that is ready for anything, in any operating environment.
