Professional 2 M/E hardware panel with 40 input buttons on each row and 2 independent system control LCDs, one for each row. Get 8 LCDs for custom labels and each row includes a separate select bus.
Massive 4 M/E Ultra HD live production switcher with 40 standards converted 12G-SDI inputs, 24 12G-SDI aux outputs, 16 ATEM Advanced Keyers, 4 multiviews and 2 SuperSource for a total of 12 DVEs.
The largest 120x120 model features zero latency, 12G-SDI, full SDI re-clocking, plus any combination of SD, HD and Ultra HD. You also get a built in control panel and external control via Ethernet.

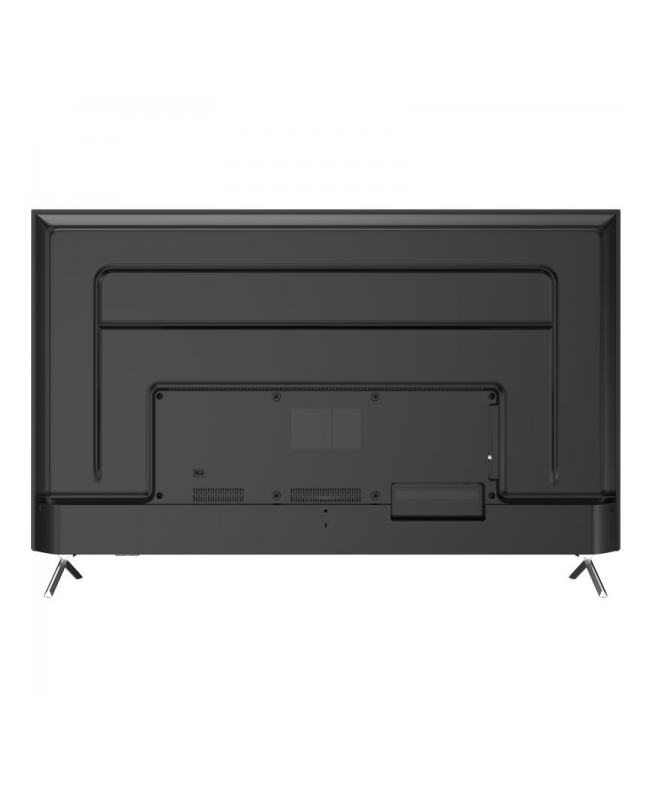

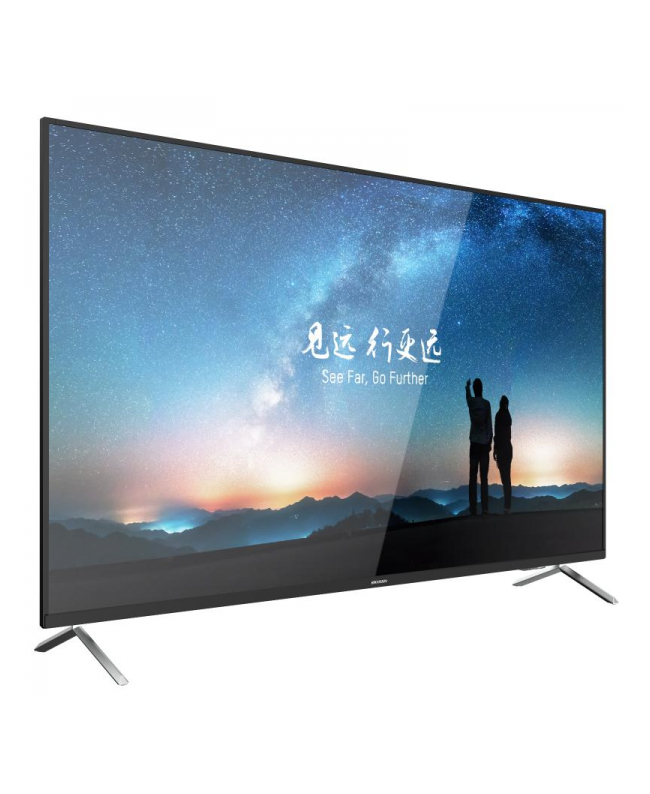

Multiple inputs: HDMI, VGA, USB Narrow front bezel Wide viewing angle: horizontal 178°, vertical 178° 24/7 operation
Screen Size: 55
Active Viewing Area: 1209.6 (H) mm x 680.4 (V) mm
Resolution: 3840 x 2160 at 60 Hz
LED Pixel Pitch: 0.315 (H) mm x 0.315 (V) mm
Brightness: 350 cd/m²
Viewing Angle: 178° (W) / 178° (V)
Color Depth: 8 bit
Contrast Ratio: 1200:1
Response Time: 8 ms
Refresh Rate: 60 Hz
Haze: 1%
Power On Time: 7x24H
Color Gamut: 72% NTSC Video And Audio Input Interface. HDMI 1.4 x 1, HDMI2.0 x 1, VGA x 1, Audio Input x 1 Video Output And
Audio: Speaker (8Ω 5W) x 2, Audio Output x 1
Data Transmission Interface: USB 2.0x1
Power Supply: 100~240V AC, 50/60 Hz
Power Consumption: max. 145 W
Stand-By Consumption: max. 0.5 W
Plastic VESA: 200mm x 200mm (4 x M6-25mm)
Bezel Width: 8.24 mm (top/left/right), 20.69 mm (bottom) Product Dimensions (W x H x D):
Without Stand: 1230.08 mm x 713.39 mm x 85.55 mm (48.43 x 28.09\ x 3.37\)
With Stand: 1230.08 mm x 786.86 mm x 267.87 mm (48.43 x 30.98\ x 10.55\) Packaging Dimensions (W x H x D): 1402 mm x 856 mm x 217 mm (55.20 x 33.70 x 8.54)
Net Weight: 16.2 +- 0.5 kg (35.7 +- 1.1 lbs.)
Gross Weight: 21.4 +- 0.5 kg (47.2 +- 1.1 lbs.)
Packing List: Monitor x 1, remote control x 1, quick start guide (multilingual) x 1, EU energy efficiency label x 1, 1.5-meter power cord x 1, screw pack x 1
Remarks: If the appearance and parameters of this specification differ from the actual product, the latter will prevail. You can also consult your local sales staff. Environment
Working Temperature: From 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity: From 10% to 80% relative humidity (no condensation)
Storage Temperature: From -20℃ to 60℃ (from -4 ℉ to 140 ℉)
Storage Humidity: From 5% to 90% relative humidity (non-condensing)
High-speed solution for simultaneous acquisition and playback of 8 Ultra HD video channels via 100G Ethernet. For total redundancy, it features 2 100G Ethernet QSFP ports.
