Professional 2 M/E hardware panel with 40 input buttons on each row and 2 independent system control LCDs, one for each row. Get 8 LCDs for custom labels and each row includes a separate select bus.
Massive 4 M/E Ultra HD live production switcher with 40 standards converted 12G-SDI inputs, 24 12G-SDI aux outputs, 16 ATEM Advanced Keyers, 4 multiviews and 2 SuperSource for a total of 12 DVEs.
The largest 120x120 model features zero latency, 12G-SDI, full SDI re-clocking, plus any combination of SD, HD and Ultra HD. You also get a built in control panel and external control via Ethernet.

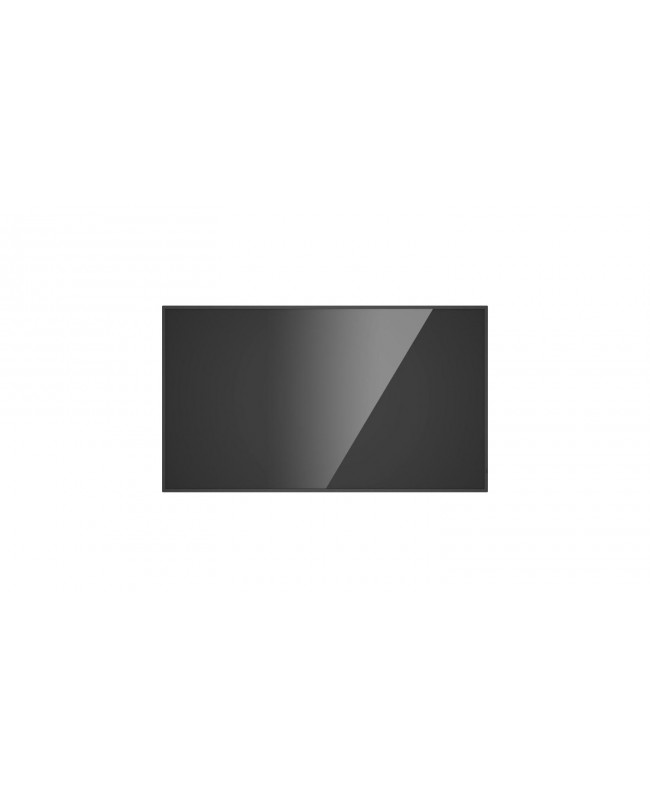

Active Viewing Area: 1649.664 (H) x 927.936 (V) mm
D-LED Pixel Pitch: 0.4296 (H) x 0.4296 (V) mm
Resolution: 3840x2160
Brightness: 500 cd/m²
Color Depth: 1.07 G (8 bit+FRC)
Response Time: 8 ms
Color Gamut: 72%
NTSC Power On Time: 7x24H
Refresh Rate: 60Hz
Integrated System Operating System: Android 8.0
A73*2+A53*2,1.7 GHz Memory: 3GB
Integrated Storage Space: 32GB Video Input Interface And
Audio: DVI-I x 1, HDMI2.0 x 2, DP1.2 x 1, Audio Line In x 1 Video Output E
Audio: DP1.2 x 1, Audio Line Out x 1
Network Interface: LAN x 1, Wi-Fi x 1
Data Transmission Interface: USB 2.0 x 2, TF Card x 1 Performance
Power Consumption: 250 W +/- 10% (TYPE), 380 W (MAX)
Stand-By Power Consumption: 0.5 W
Working Humidity: 20% to 80% relative humidity
Working Temperature: 0℃ to 40℃ (32 ℉ to 104 ℉) Product Dimensions (W x H x D): 1683.5 x 961.7 x 95.3 mm Packaging Dimensions (W x H x D):1848x1158x203 mm
Net Weight:37.5 kilograms
Gross Weight:49.52 kilograms
Packing List: power cord, remote control, user manual, warranty card Environment
Storage Humidity: 10% to 90% relative humidity
Internal Function Speaker: Built-in speaker (10 W) x 2
High-speed solution for simultaneous acquisition and playback of 8 Ultra HD video channels via 100G Ethernet. For total redundancy, it features 2 100G Ethernet QSFP ports.
