Showgear PowerCore 63.15


€1,183.00
Tax included

15X Schuko


Qty

In Stock

Delivery

Do You want Your order by Friday, 27/02/2026? Order within 5 hours and 51 minutes

Free shipping


wishlist

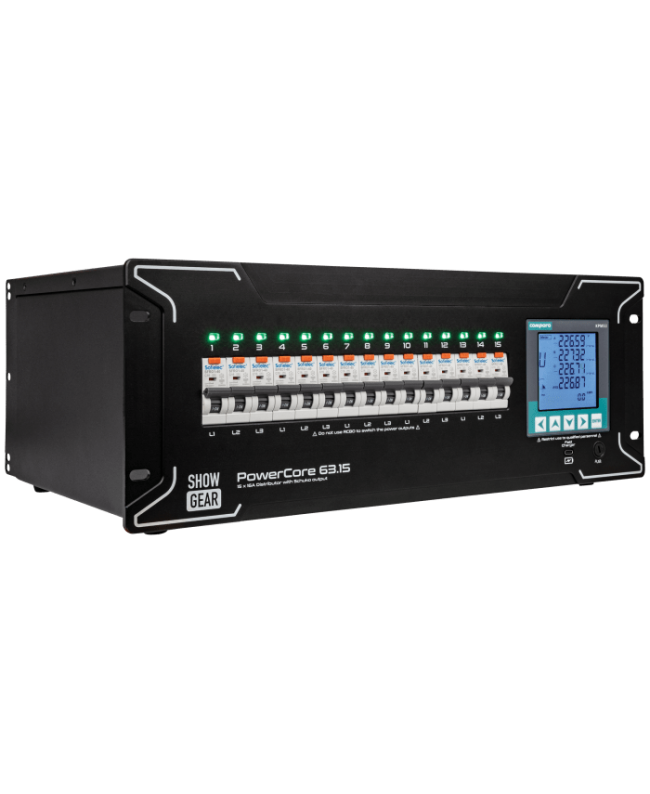

Showgear PowerCore 63.15



The Showgear PowerCore 63.15 provides reliable power and optimal protection for your valuable equipment. Each output is armed with its own RCBO to detect earth faults and overcurrents. In the event that a problem is detected, it will automatically shut down the affected circuit, keeping the rest of the system active.

With an LED for each output, it and #x27;s also easy to check statuses, while a 3-inch display makes it possible to view various settings, including voltage, power and phase information. A power meter with the MdbuS communication protocol makes it possible to monitor performance remotely too.

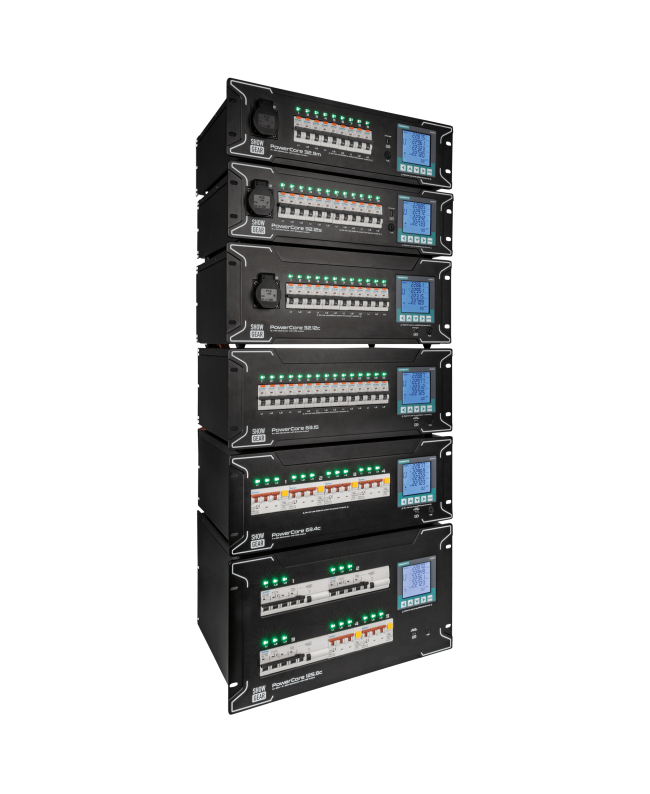

A robust CNC-milled aluminium front panel and sturdy mounting connectors by PCE make the PowerCore range suitable for demanding applications.

  • RCBO per output
  • LED per output
  • 3-Inch display
  • Power meter with MdbuS protocol
  • CNC-milled aluminium front panel and PCE connectors

Technical

Control and programming

  • LCD
  • Screen size 3.14

Connections and electrical

  • Rated current (A) 63
  • Power connection CEE5P 63
  • Power connection output Schuko plug, type F
  • Rated current of automatic circuit breaker 16
  • Class of automatic circuit breaker Class C
  • Poles of automatic circuit breaker 2
  • Rated current of residual current circuit breaker A
  • Class of residual current circuit breaker 30 mA
  • Poles of residual current circuit breaker 2

Mechanical properties

  • Length (mm) 411 mm (16.181″)
  • Height (mm) 183 mm (7.205″)
  • Width (mm) 483 mm (19.016″)

Weight 14 kg

Rack units 4 U

IP protection class IP20 (for indoor use only)

Housing Aluminum, metal

Color

Black

  • Product features
  • LED indicators Power

Position of the earth contact 6H


E623020
