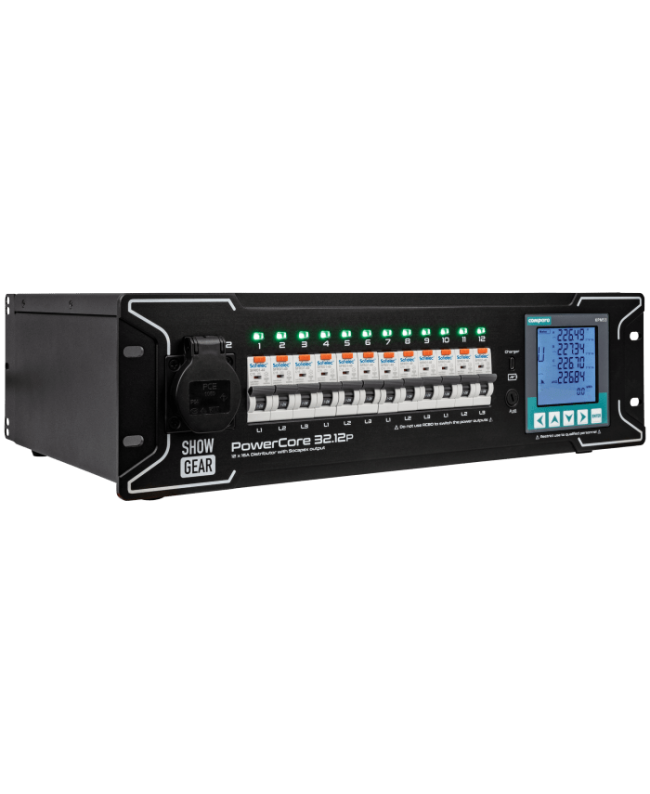

Showgear PowerCore 32.12p



The Showgear PowerCore 32.12p provides reliable power and optimal protection for your valuable equipment. Each output is equipped with its own RCBO to detect ground faults and overcurrent. If a problem is detected, it automatically shuts down the affected circuit while the rest of the system continues to run.

With an LED for each output, it is easy to check the status, while a 3-inch display shows various settings, including information on voltage, power, and phase. A power meter with Mdbus communication protocol allows remote monitoring of power.

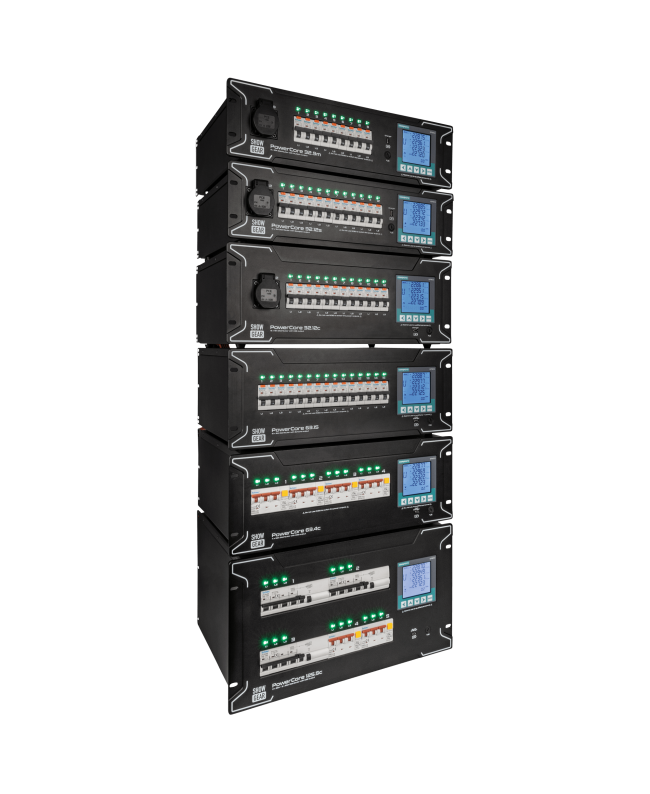

The robust CNC-machined aluminum front panel and sturdy PCE mounting plugs make the PowerCore series suitable for the most demanding applications.

Technical

Control and programming

  • LCD
  • Screen size 3.14

Connections and electrical

  • Rated current (A) 32 A
  • Power connection CEE5P 32 A
  • Power connection Power Pro True, Schuko plug, type F
  • Cable length 1
  • Rated current of automatic circuit breaker 16
  • Class of automatic circuit breaker Class C
  • Poles of automatic circuit breaker 2
  • Rated current of residual current circuit breaker A
  • Class of residual current circuit breaker 30 mA
  • Poles of residual current circuit breaker 2

Mechanical properties

  • Length (mm) 344 mm (13.543″)
  • Height (mm) 139 mm (5.472″)
  • Width (mm) 483 mm (19.016″)
  • Weight 12.4 kg (27.337 lb)
  • Rack units 3 U
  • IP protection IP20 (for indoor use only)
  • Housing Aluminum, metal
  • Color Black

Product features

  • LED indicators Power
  • Position of the earth contact 6H

E623014
