PRO-SHOW Atomic Pro Proline250AS power distribution unit 250A 4 x 63A, 4 x 32A, Power Locking In/Out


€8,904.00
Tax included

Atomic Pro Proline250AS power distribution unit 250A 4 x 63A, 4 x 32A, Power Locking In/Out


Out of Stock

Free shipping


wishlist

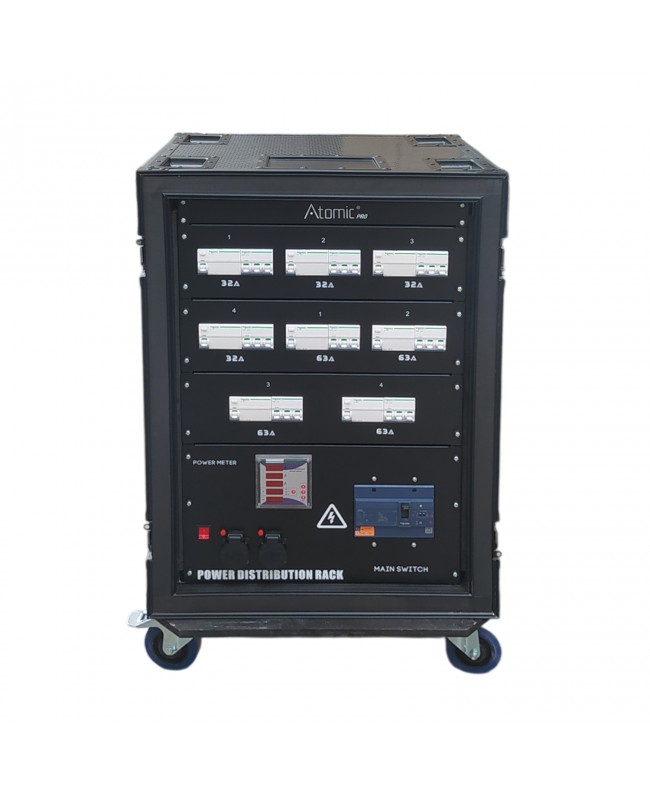

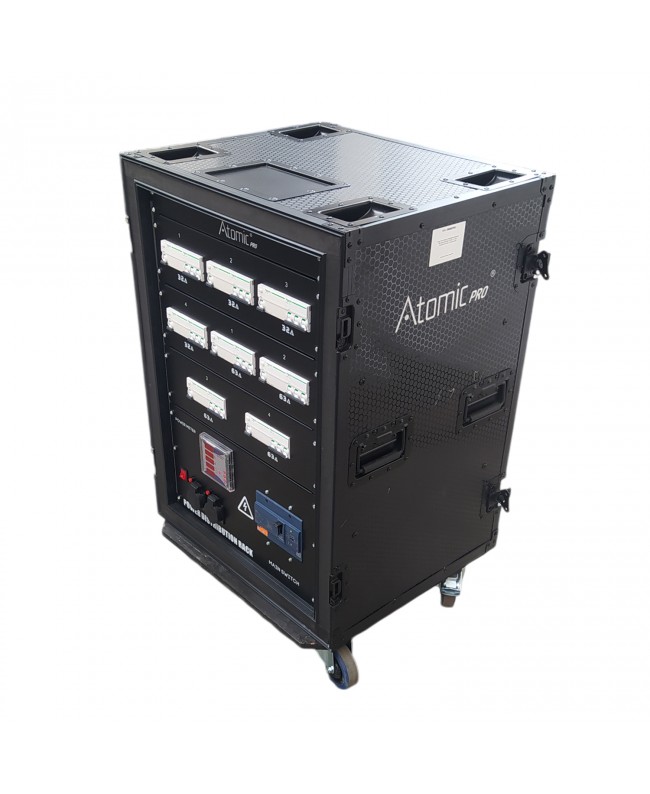

PRO-SHOW Atomic Pro Proline250AS power distribution unit 250A 4 x 63A, 4 x 32A, Power Locking In/Out



THE'Atomic Pro power distribution unit Proline 250Ait's aprofessional power distribution unitdesigned for service and touring applications that require a systemreliable, robust and safe. This version PRO is equipped withSchneider RCDs, synonymous with quality and reliability.

The panels are made inmetal with rugged finish, while the switches are protected bydoors in high-resistance polycarbonate.

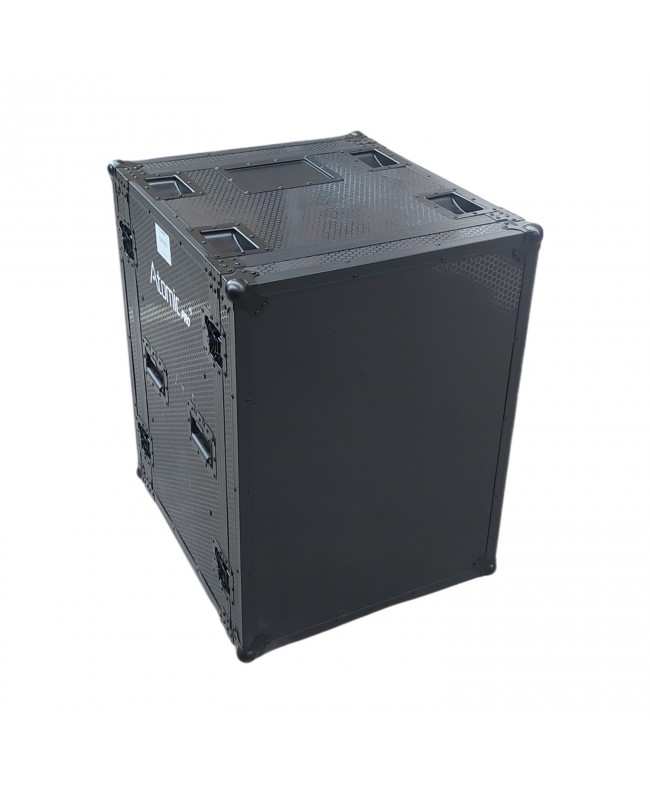

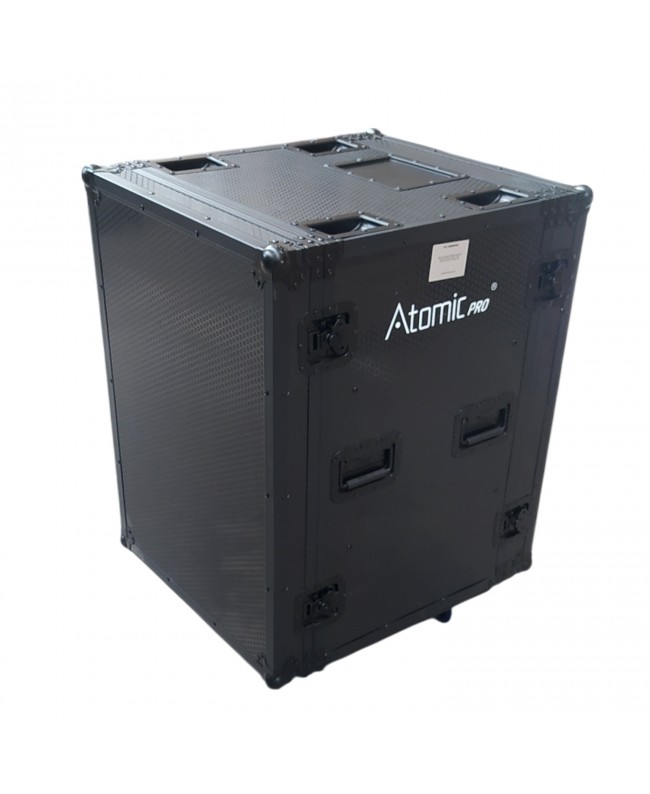

The system is integrated into ashockproof flight case: the distributor is isolated from the multilayer structure by means of ahigh density EVA foam insert from 3 cm, for optimal protection during transport. The case comes complete with4 wheels (2 with brakes),stainless steel butterfly closuresAndcovered spring handles.

Compatible with POWERLOCK connector systems.

POWERLOCK is a registered trademark of Amphenol.
This product is not manufactured, endorsed or approved by Amphenol.

Features Atomic Pro power distribution unit Proline 250A

  • Power distributor 250A
  • 4 outputs 63Awith Schneider differential protection
  • 4 outputs 32Awith Schneider differential protection
  • Integrated digital multimeter
  • Service light
  • shockproof flight case

Technical specifications Atomic Pro power distribution unit Proline 250A

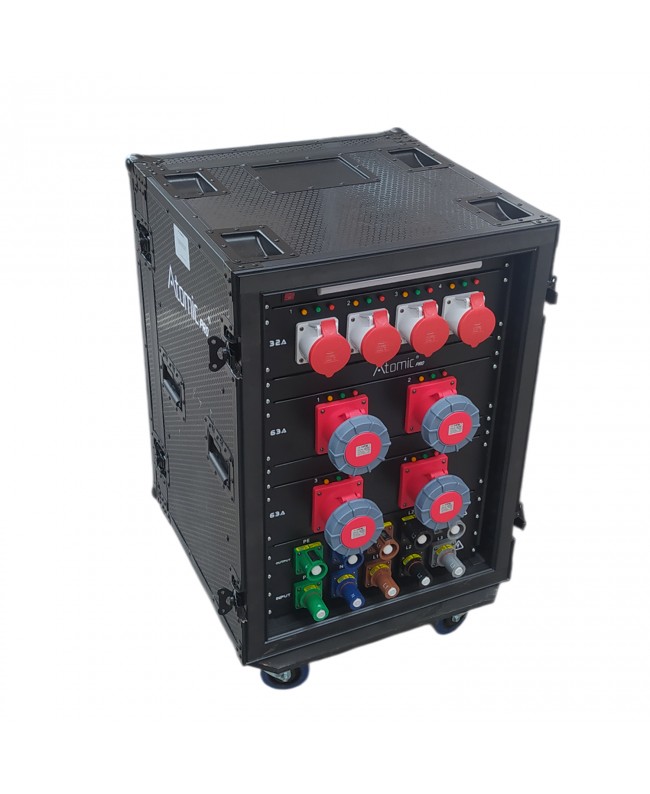

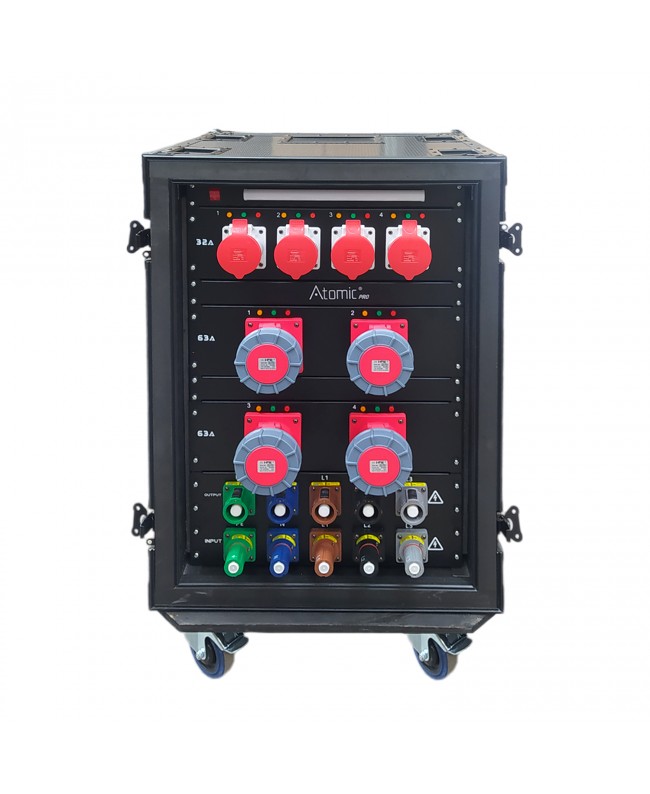

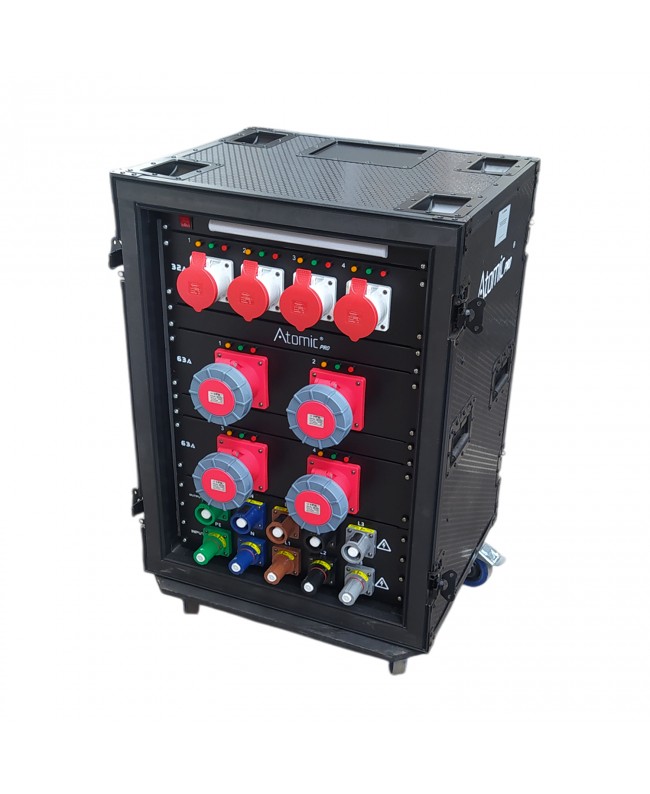

  • Entrances:5 x Powerlock with link out
  • Releases:5 x Powerlock4 x panel sockets 63A 5 poles (3P+N+E) CEE - 400V 50/60Hz4 x panel sockets 32A 5 poles (3P+N+E) CEE - 400V 50/60Hz2 x Schuko with dedicated switch
  • Protection:1 x 4P 250A Schneider residual current circuit breaker4 x 3P 63A Schneider residual current circuit breakers4 x 3P 32A Schneider residual current circuit breakers
  • Instrumentation:1 x Digital Multimeter1 x Service Light

Dimensions

  • Width with lids:69 cm
  • Width without covers:51 cm
  • Height with wheels:96,5 cm
  • Height without wheels:82 cm
  • Depth:61 cm

PRO-SHOW
38668PRO
