Atomic Pro power distribution unit 250A 36*16A Shuko + 6 Socapex Out + Power Locking In/Out


€7,051.00
Tax included

Power distribution unit 250A 36*16A Shuko + 6 Socapex Out + Power Locking In/Out


Out of Stock

Free shipping


wishlist

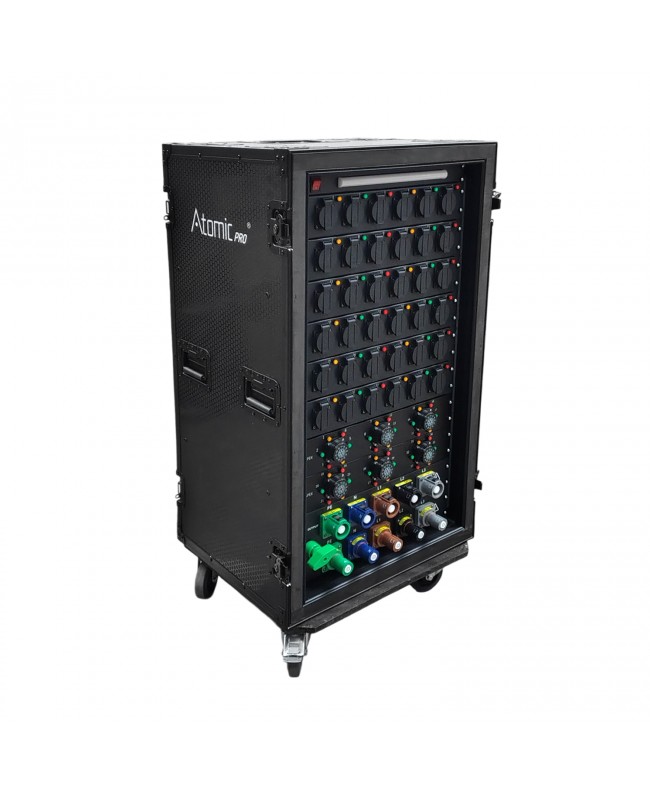

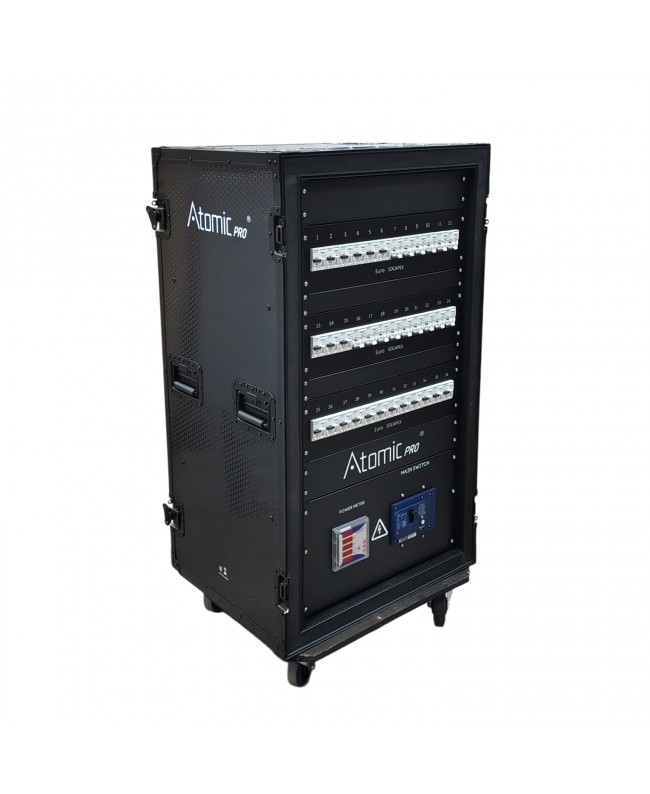

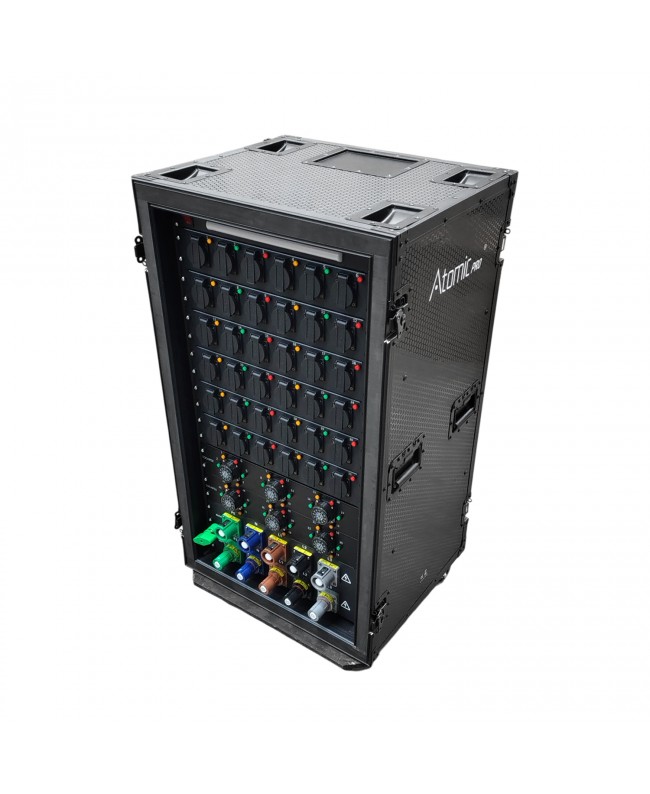

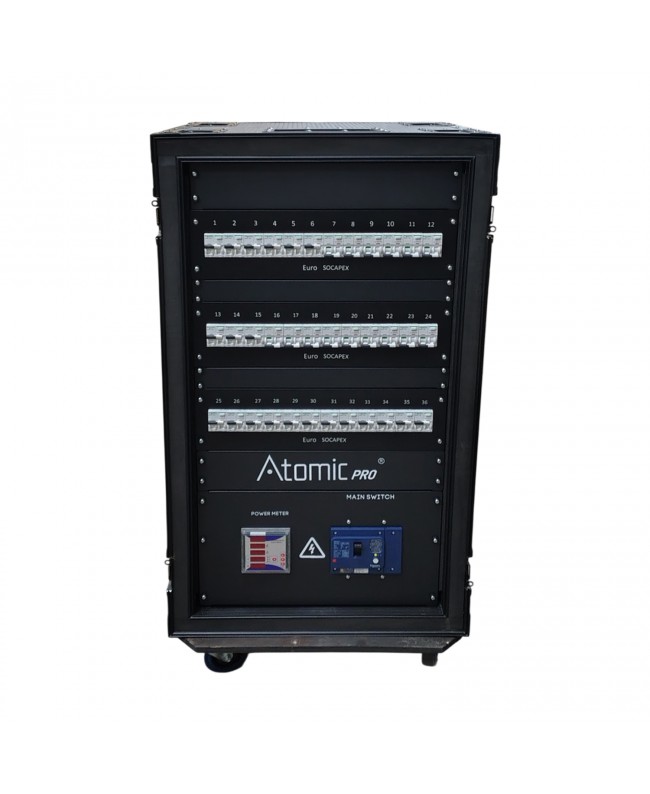

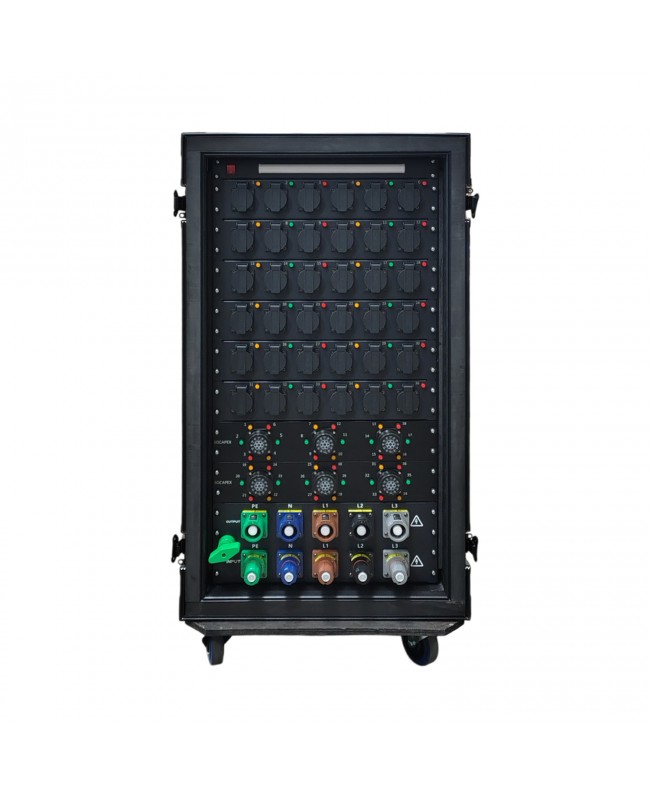

Atomic Pro power distribution unit 250A 36*16A Shuko + 6 Socapex Out + Power Locking In/Out

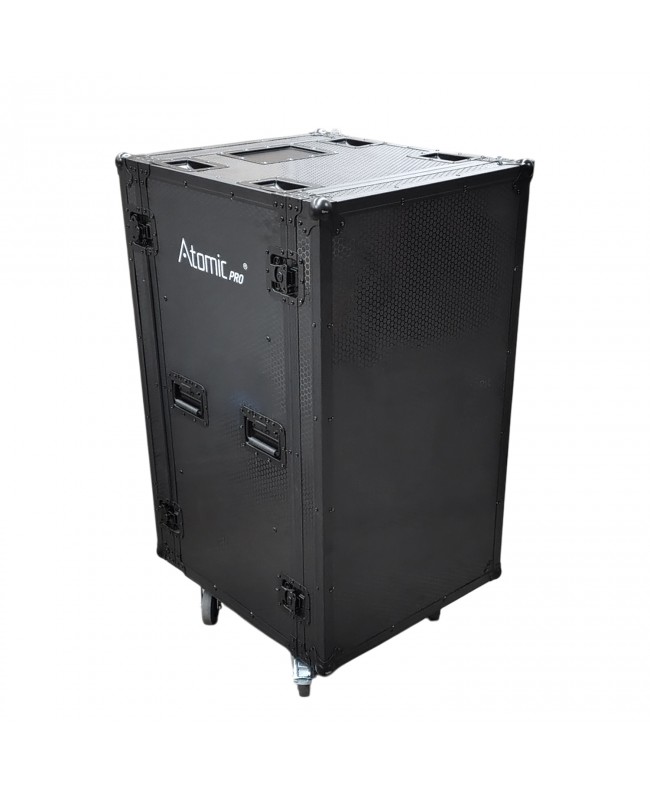

The Atomic Pro power distribution unit 250 Ampere, in this oneversion with 36 outputs from 16A Schuko and six types compatible with Socapex 19-Pin connector, in addition to rilancio with Power Locking connectors. A professional power distribution unit ideal for services that need a reliable, robust and above all safe power distributor. Entirely encased in a specialshockproof flightcase, the body of the distributor is separated from the plywood of the case by a high-density 3cm foam insert. Complete with 4 wheels, two of which have brakes, steel butterfly locks INOX and covered spring handles.

In total this this power distribution unit has a total of36 coupled outputs, equipped with 16A circuit breaker. In fact, each output is marked numerically and can be used indifferently from the Compatible with Socapex 19P connector or from the Schuko output.

Features Atomic Pro power distribution unit 250 Ampere

  • power distribution unit 250A
  • 6 Outputs compatible with Socapex 19P connector
  • 36 Shuko releases
  • 36 Schneider switches RCD
  • Service light
  • Shockproof flight case

Technical specifications Atomic Pro power distribution unit 250 Ampere

  • Entrances:5 x Power Locking 400A5 x rilancio Power Locking 400A
  • Get out:6 x Compatible with Socapex 19P Connector36 x Schuko panel sockets
  • Protection:1 x MCCB Schneider EZD250E 250A switch with VigiEZD differential module (25kA)36 x 2P 16A automatic differential magnetothermic switch to protect Schuko outputs and Socapex 19P coupled outputs
  • Instrumentation:1 x Digital Multimeter1 x Service Light
  • Compatible with 19P Socapex type connectors.
  • Socapex is a registered trademark.This product is not manufactured by, endorsed by, or affiliated with Socapex.The trademark is used solely to indicate connector compatibility.

Atomic Pro
38675EU

Specific References
