SHOWGEAR PowerCore 32.12m 1 + 6x Schuko + 2x Multipin H16


€1,250.00
€1,068.00 -15%
Tax included
Lowest price within the last 30 days: €1,068.00

1 + 6X Schuko + 2x Multipin H16


Qty

In Stock

Delivery

Do You want Your order by Thursday, 30/07/2026? Order within 7 hours and 18 minutes

Free shipping


wishlist

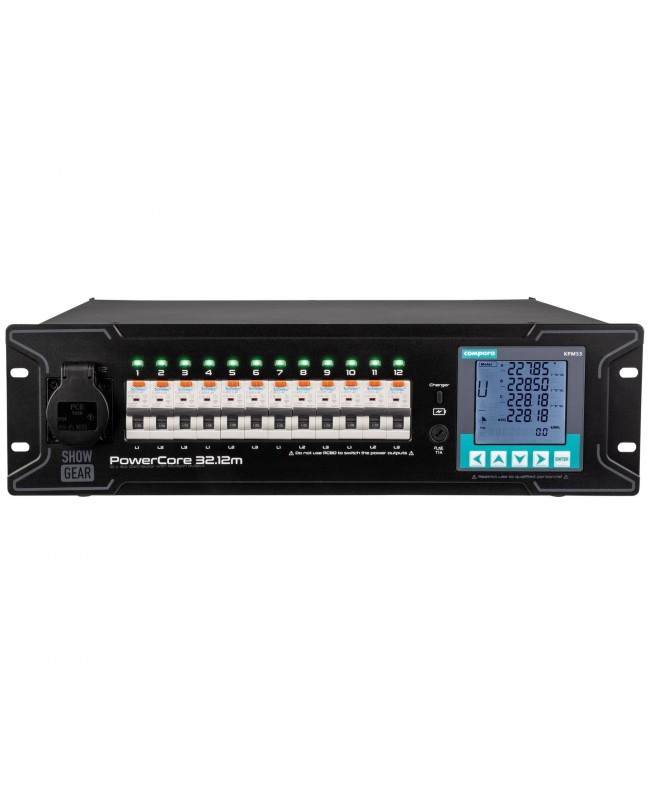

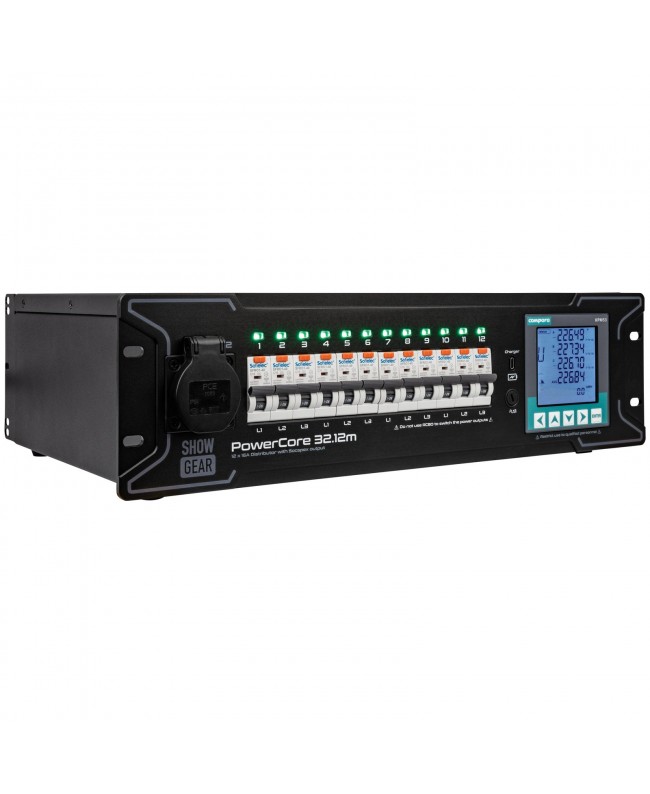

SHOWGEAR PowerCore 32.12m 1 + 6x Schuko + 2x Multipin H16



The Showgear PowerCore 32.12m provides reliable power and optimal protection for your valuable equipment. Each output is armed with its own RCBO to detect earth faults and overcurrents. In the event that a problem is detected, it will automatically shut down the affected circuit, keeping the rest of the system active.

With an LED for each output, it's also easy to check statuses, while a 3-inch display makes it possible to view various settings, including voltage, power and phase information. A power meter with the MdbuS communication protocol makes it possible to monitor performance remotely too.

A robust CNC-milled aluminium front panel and sturdy mounting connectors by PCE make the PowerCore range suitable for demanding applications.

  • RCBO per output
  • LED per output
  • 3-Inch display
  • Power meter with MdbuS protocol
  • CNC-milled aluminium front panel and PCE connectors
  • Display: LCD
  • Protocols: Md-bus
  • Display Size: 3.14
  • Rated Voltage: 400 V
  • Power Consumption: 7.5 W
  • Nature of the Supply voltage (multi-phase): AC 3-Phase+N+PE
  • Rated Current (A): 32 A
  • Rated Frequency: 50 Hz
  • Fuse: 1 A
  • Data Connector In: XLR 3P
  • Data Connector Out: XLR 3P
  • Power Connector In: CEE5P 32 A
  • Power Connector Out: Multipin H16 / Schuko Socket, Type F
  • Cable Length: 1 m
  • RCCB Residual Type: A
  • RCBO Rated Current: 16 A
  • RCBO Tripping Type: C
  • RCBO Poles: 2
  • RCBO Sensitivity: 30 mA
  • Length (mm): 344 mm
  • Height (mm): 139 mm
  • Width (mm): 483 mm
  • Weight: 12.5 kg
  • Rack Units: 3 U
  • IP Rating: IP20 (indoor use only)
  • Housing: Aluminium / Metal
  • Colour: Black
  • LED Indicators: Power
  • Ground Lug Position: 6H
  • Maximum Ambient Temperature: 40 °C
  • Minimum Ambient Temperature: -5 °C

E623011

Data sheet

Color
Black
