KLOTZ LX3-5X1K2-15.0

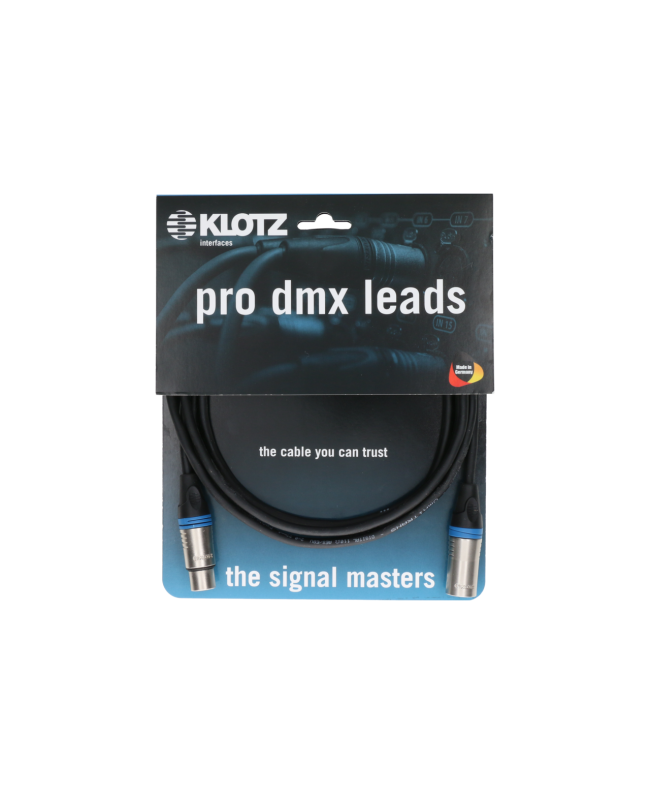

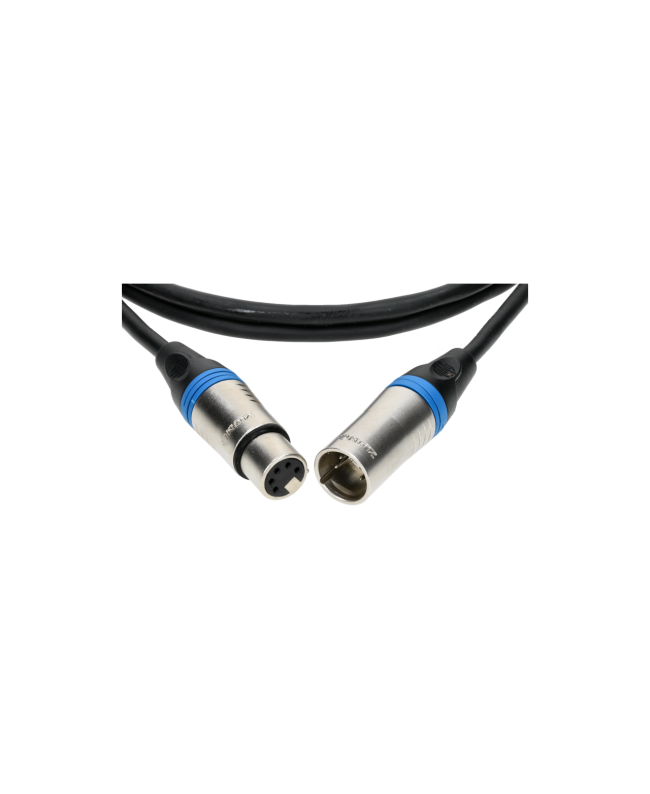

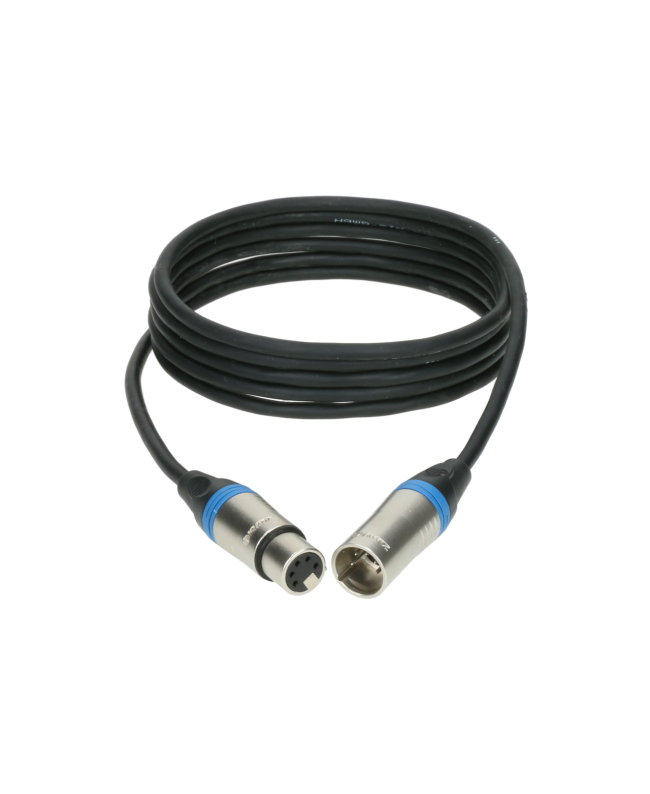

The LX3 and LX4 cables are equipped with XLR 3-pin or 5-pin connectors and transmit digital DMX lighting control signals with absolute reliability. Low capacitance and attenuation plus dense shielding with spiral shield guarantee the vital interference-free signal transmission that is so crucial in digital media, even over long distances. Closely twisted pairs of conductors boost resistance against external electromagnetic interference fields. The LX3/LX4 is made up with our OT206Y cable, which has characteristic impedance of 110 Ω as is obligatory for digital signals. A rugged PVC outer jacket, a mere 6.0 mm in diameter, provides mechanical stability without impairing the cable’s extreme flexibility. The LX3/LX4 also features KLOTZ’s own or Neutrik's high-quality 5-pin XLR connectors. The LX3/LX4 is supplied to dealers in lengths from 1 – 15 m on header cards ready for hanging on a display unit.

• extremely flexible
• 1 x 2 x 0.22 mm² (AWG 24)
• high-quality copper core (99.95% pure ETP copper)
• AL/PET foil + tinned stranded drain wire + tinned copper braid (coverage 85%)
• durable lead-free PVC outer jacket
