DAP FLX08 - DMX/AES-EBU XLR/M 5P to XLR/F 5P 1.5 m DMX Cables
  • -40%

DAP FLX08 - DMX/AES-EBU XLR/M 5P to XLR/F 5P 1.5 m

€18.50
€11.00 -40%
Tax included
Lowest price within the last 30 days: €11.00

1.5 m

Qty

In Stock

Delivery

Do You want Your order by Wednesday, 04/11/2026? Order within 2 hours and 59 minutes

Compare

wishlist

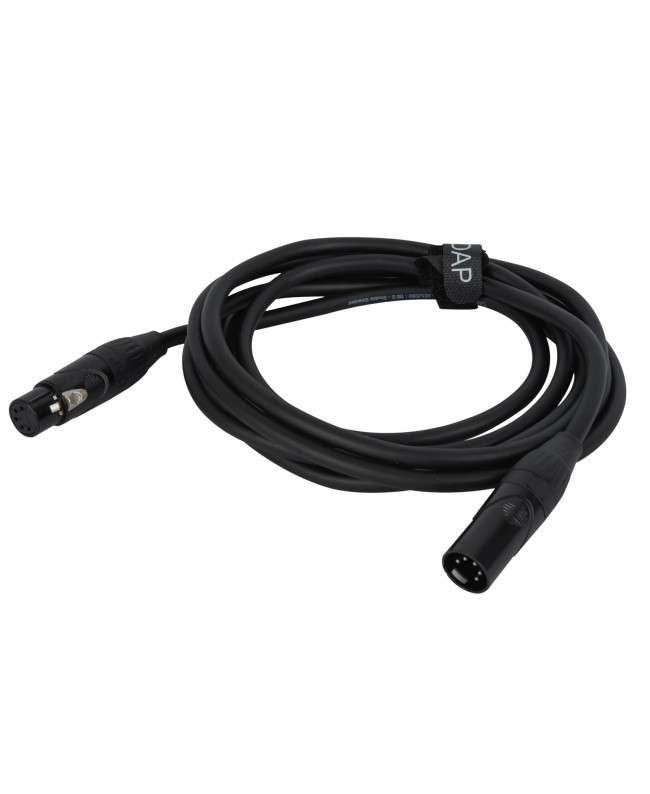

DAP FLX08 - DMX/AES-EBU XLR/M 5P to XLR/F 5P 1.5 m



This 110-Ohm DMX cable is designed for the optimal transmission of AES/EBU digital signals. It comes with hook-and-loop fastener and the latest DAP DMX connectors that can accommodate different colour rings.

  • 110-Ohm DMX cable
  • Changeable colour rings
  • Hook-and-loop fastener included
  • Connector 1: XLR 5P
  • Connector 2: XLR 5P
  • Impedance: 110 Ω
  • Cable Length: 1.5 m
  • Pins: 5
  • Conductor Resistance: 80 Ω/km
  • Capacity Inner Conduct. Shield/Inner Conduct.: 64 pF/m
  • Wire Connection: 0.34 mm²
  • Outer Cable Diameter: 7.5 mm
  • Outer Isolation Diameter: 7.5 mm
  • Outer Isolation Type: PVC
  • Weight: 0.171 kg
  • IP Rating: IP20 (indoor use only)
  • Material: Copper
  • Colour: Black
  • Contact Type: Silver plated
  • 1St Shield: Braided Tinned Copper
  • 2Nd Shield: Aluminium foil
  • Shield Resistance: 30 Ω/km
  • Filler Material: Paper
  • Conductors: 4
  • Maximum Ambient Temperature: 70 °C
  • Minimum Ambient Temperature: -20 °C

FLX08150

Data sheet

Length
1.50 m
Color
Black
Giorni di elaborazione
20
Connector A
XLR 5-pin female
Connector B
XLR 5-pin male
