DAP FLR75 - IP65 DMX/AES-EBU XLR/M 5P to XLR/F 5P Rean RCX5 connectors 15 m DMX Cables
  • -15%

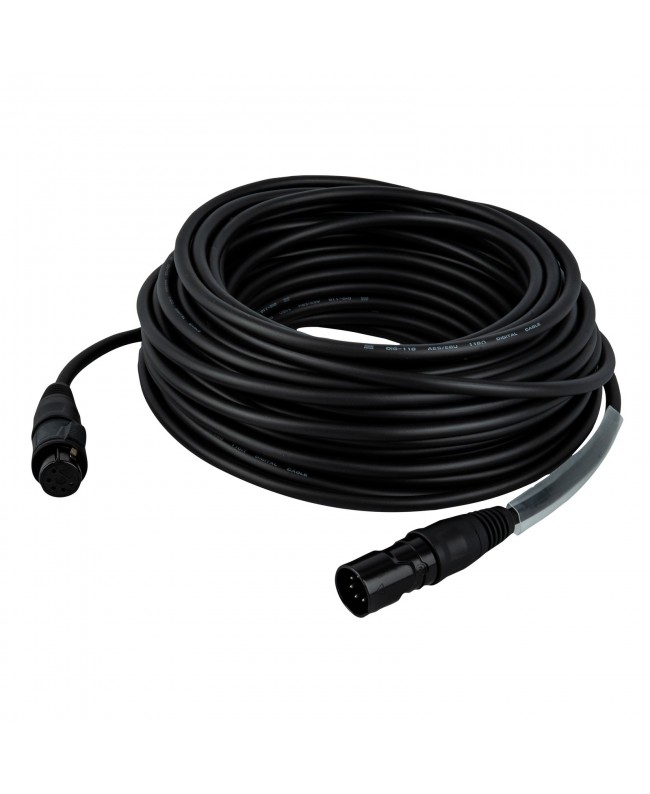

DAP FLR75 - IP65 DMX/AES-EBU XLR/M 5P to XLR/F 5P Rean RCX5 connectors 15 m


€67.00
€56.50 -15%
Tax included
Lowest price within the last 30 days: €56.50

15 m


Qty

In Stock

Delivery

Do You want Your order by Wednesday, 04/11/2026? Order within 2 hours and 56 minutes



wishlist

DAP FLR75 - IP65 DMX/AES-EBU XLR/M 5P to XLR/F 5P Rean RCX5 connectors 15 m



The DAP FLR75 IP65 DMX/AES-EBU cable offers professional grade signal transmission, constructed with Rean RCX5 connectors. The cable is based on the DAP DIG-110 but uses a polyurethane jacket to comply with IP65. It uses a braided shield for interference-free signal transmission. The RCX5 connectors ensure low-impedance, high-quality connections for your signals. The sleek, black-plated zinc housing provides robust protection while maintaining a professional look. Each cable includes a transparent heat-shrink label sleeve for easy identification and a convenient hook-and-loop fastener to keep setups tidy.

  • IP65
  • 110-Ohm DMX cable
  • Rean RCX5 connectors
  • Black connector housing
  • Transparent heat-shrink label sleeve
  • Hook-and-loop fastener included
  • Connector 1: XLR 5P Male
  • Connector 2: XLR 5P Female
  • Brand Connector 1: REAN
  • Impedance: 110 Ω
  • Cable Length: 15 m
  • Pins: 5
  • Conductor Resistance: 110 Ω/km
  • Conductor Capacitance: 35 pF/m
  • Capacity Inner Conduct. Shield/Inner Conduct.: 52 pF/m
  • Wire Connection: 1.6 mm²
  • Outer Cable Diameter: 7 mm
  • Outer Isolation Type: Pur
  • Weight: 1.2 kg
  • IP Rating: IP65
  • Material: Copper
  • Colour: Black
  • Contact Type: Tin
  • 1St Shield: Foil
  • 2Nd Shield: Braided Tinner Copper
  • Shield Resistance: 12.5 Ω/km
  • Filler Material: Paper
  • Conductors: 2
  • Conductor Construction: Stranded Core

FLR7515

Data sheet

Length
15.00 m
Miscellaneous
Suitable for outdoor use
Color
Black
Giorni di elaborazione
20
Connector A
XLR 5-pin female
Connector B
XLR 5-pin male
