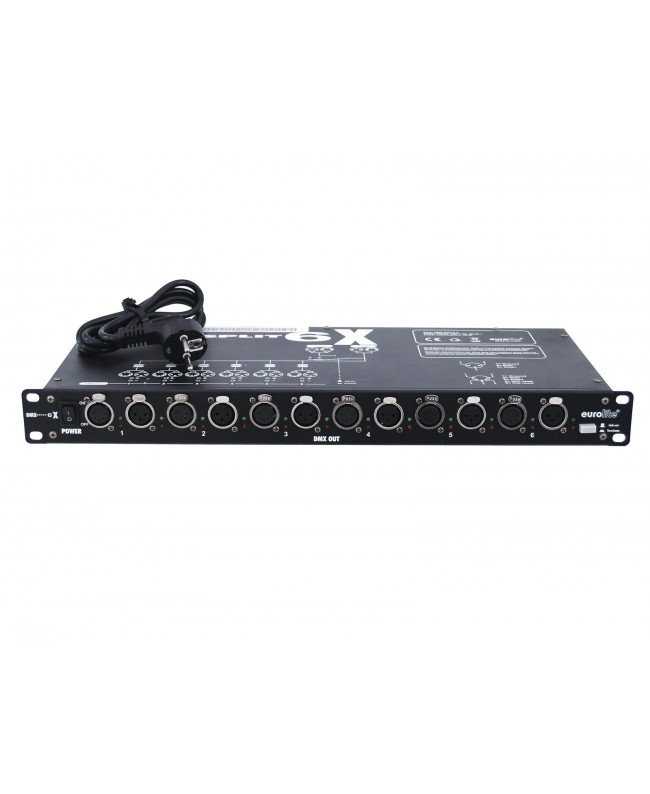

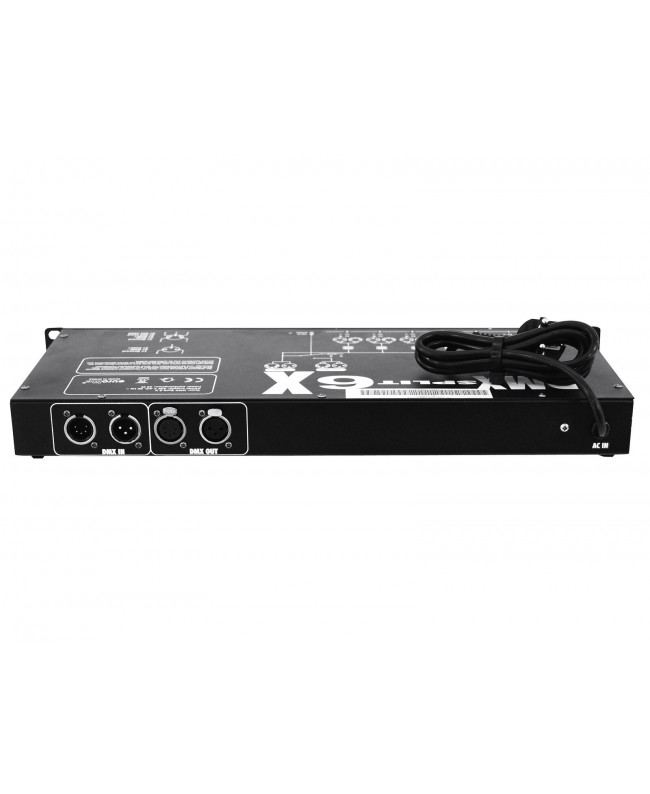

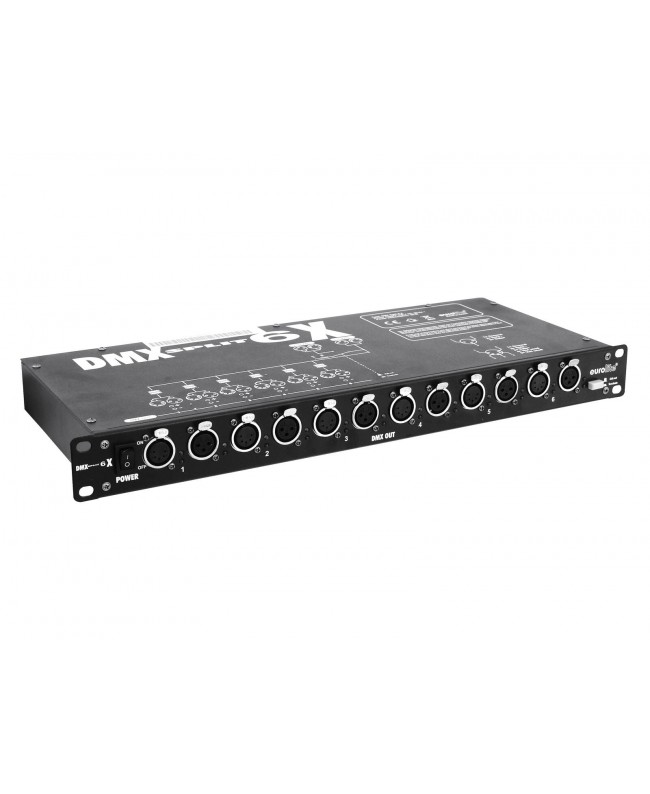

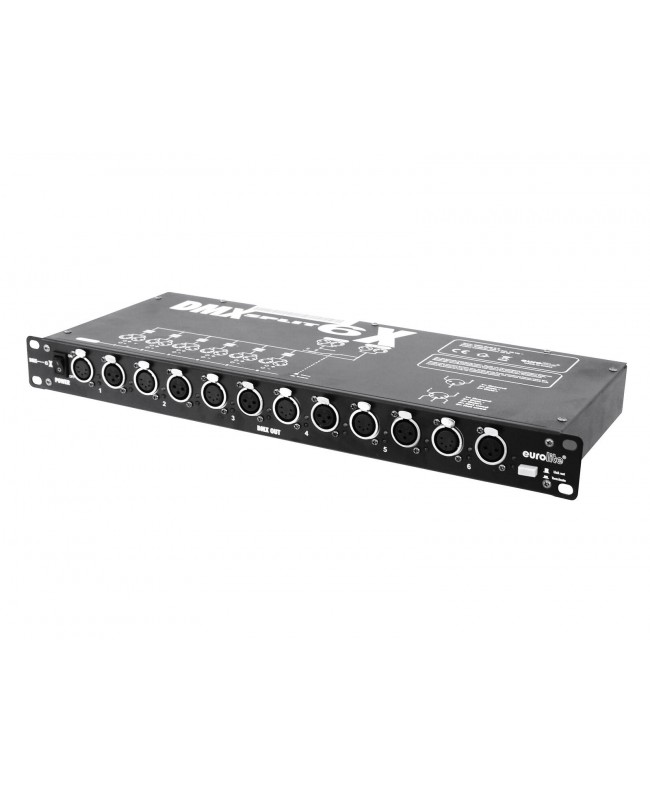

EUROLITE Split 6X DMX Splitter


€147.00
Tax included

Splitter with 6 galvanically isolated outputs, 3-pin & 5-pin XLR sockets


Qty

In Stock

Delivery

Do You want Your order by Wednesday, 21/01/2026? Order within 7 hours and 50 minutes

Free shipping


wishlist

EUROLITE Split 6X DMX Splitter



One DMX-line is partitioned into six lines with this splitter. Due to the fact, that all outputs are seperated galvanically, one broken line will not cause a blackout. When a lighting performance without any disturbance is aspired, then this DMX Split is a must-have.

  • Splitter with 6 galvanically isolated outputs, 3-pin & 5-pin XLR sockets
  • DMX splitter for splitting one DMX input signal to 6 DMX outputs
  • Input and outputs galvanically isolated
  • Input and outputs with a set of respective power supply and internal fuse
  • (19") 48.3 Cm rack installation 1 U
  • Each DMX output with independent driver and status indicator
  • Power supply: : 230 V AC, 50 Hz
  • Power consumption: : 35 W
  • Power connection: : Fixed power supply cord with safety plug
  • DMX input: : 1 X 3-pin XLR (M) mounting version
  • DMX output: : 6 X 3-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator
  • Control elements: : Bypass/terminating resistor switch, power switch
  • Housing design: : (19") 48.3 Cm rack installation 1 U
  • Dimensions: : Width: 48.3 cm
  • Depth: 20 cm
  • Height: 4.45 cm
  • Weight: : 3.31 Kg

70064820

Data sheet

Height
1 U
