EUROLITE DMX Split 4 Splitter DMX Splitter
  • New

EUROLITE DMX Split 4 Splitter

€98.00
Tax included

Splitter with 4 galvanically isolated outputs, 3-pin & 5-pin XLR sockets

Qty

In Stock

Delivery

Do You want Your order by Wednesday, 21/01/2026? Order within 7 hours and 51 minutes

Compare

wishlist

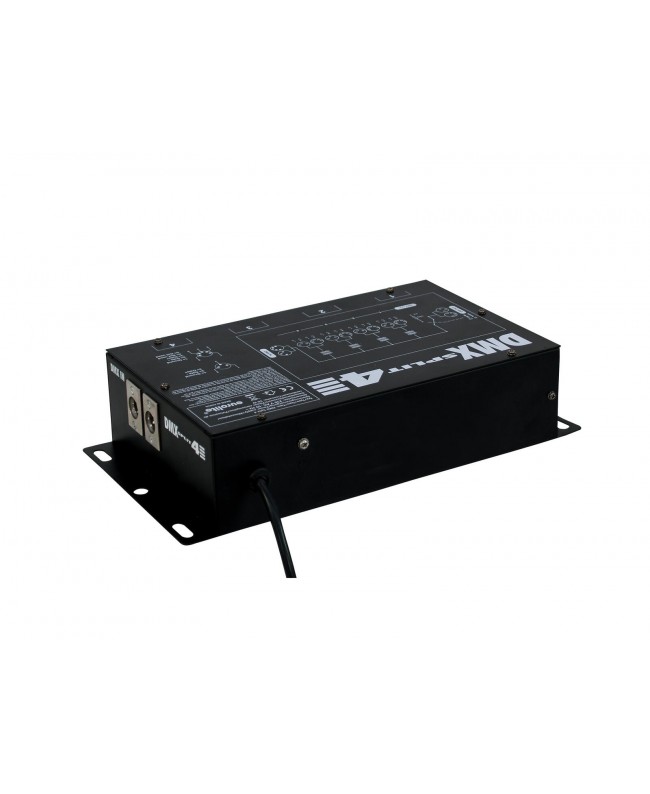

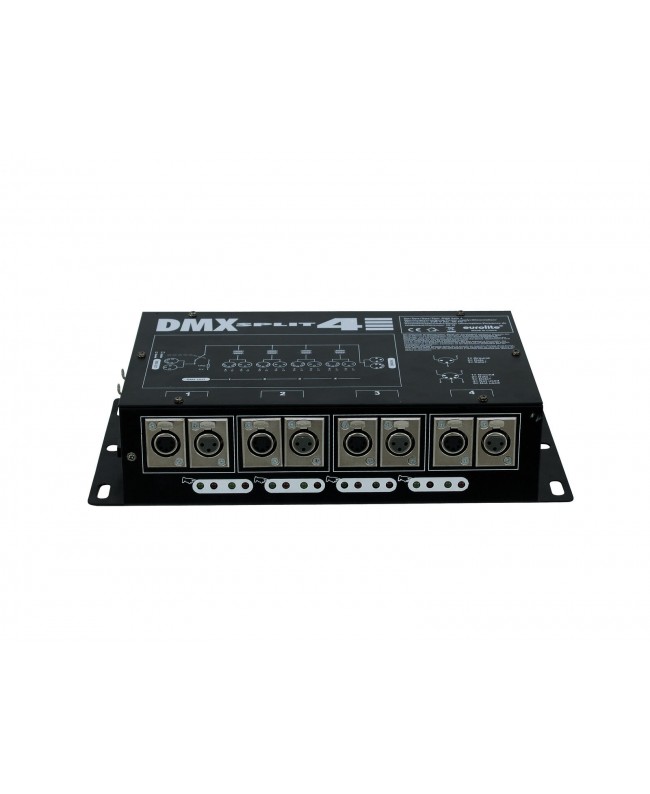

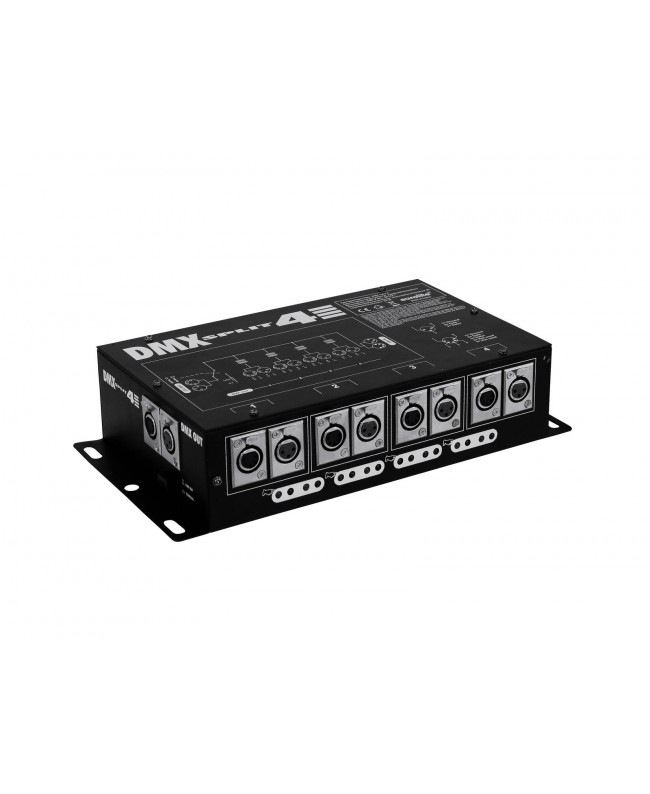

EUROLITE DMX Split 4 Splitter



  • DMX splitter for splitting one DMX input signal to 4 DMX outputs
  • Input and outputs galvanically isolated
  • Input and outputs with a set of respective power supply and internal fuse
  • Switchable termination resistor
  • Each DMX output with independent driver and status indicator
  • Power supply: : 230 V AC, 50 Hz
  • Power consumption: : 20 W

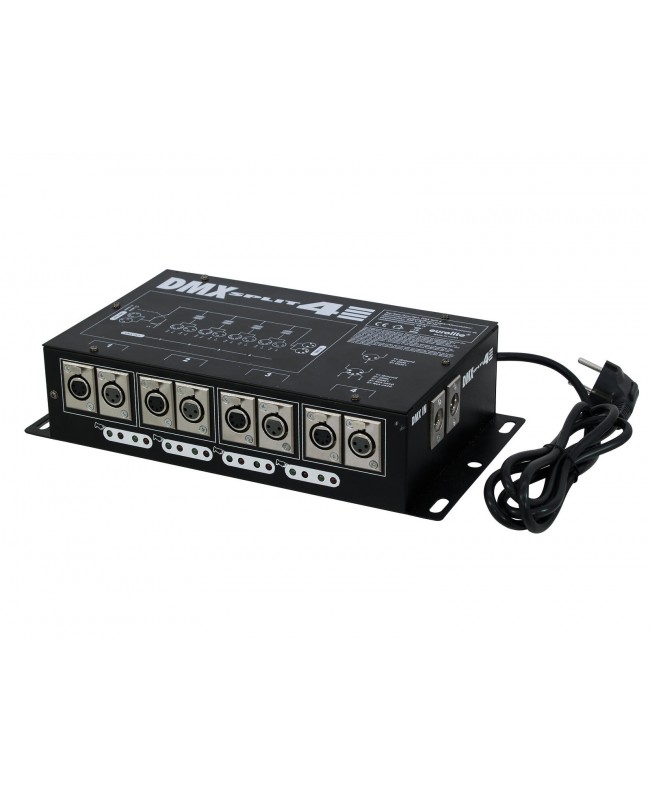

  • Power connection: : Fixed power supply cord with safety plug

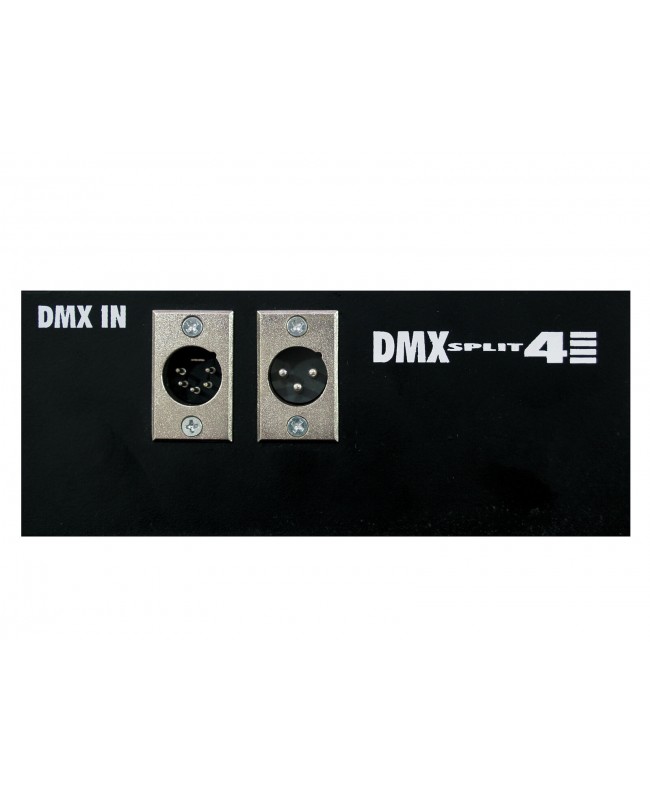

  • DMX input: : 1 X 3-pin XLR (M) mounting version

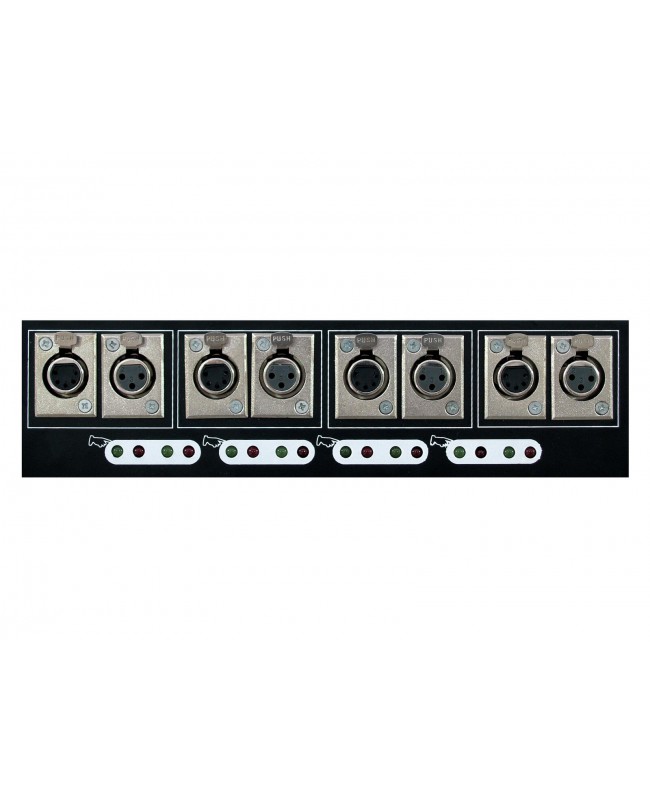

  • DMX output: : 4 X 3-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator

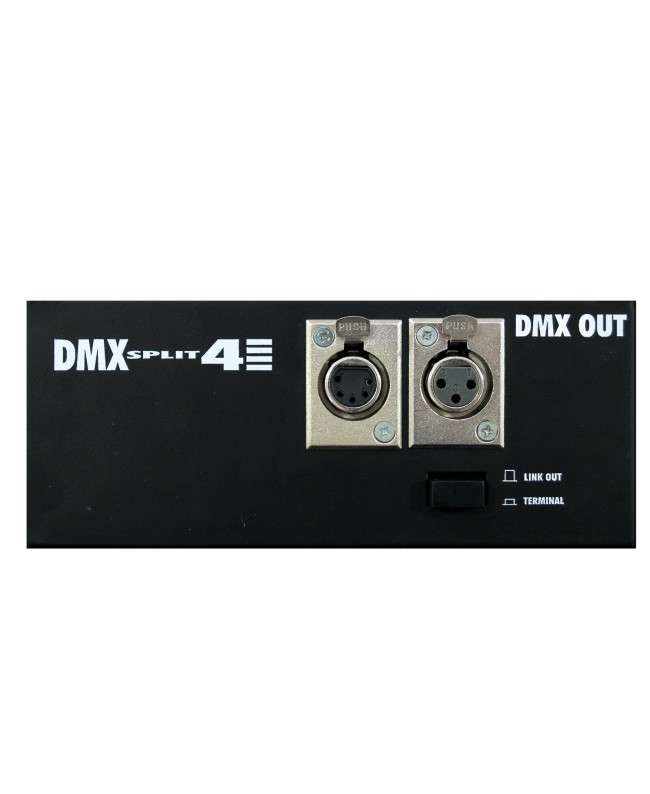

  • 1 X 5-pin XLR (F) mounting version Bypass: 1 X 3-pin XLR (F) mounting version Bypass
  • Control elements: : Bypass/terminating resistor switch
  • Dimensions: : Width: 32.5 cm
  • Depth: 19 cm
  • Height: 8 cm
  • Weight: : 2.55 Kg

70064810
