SEETRONIC RJ45 Chassis Feedthrough locking receptacle - IP65
  • -6%
  • New

SEETRONIC RJ45 Chassis Feedthrough locking receptacle - IP65


€12.10
€11.30 -6%
Tax included
Lowest price within the last 30 days: €11.30

Feedthrough locking receptacle - IP65


Qty

In Stock

Delivery

Do You want Your order by Tuesday, 21/07/2026? Order within 0 hours and 54 minutes



wishlist

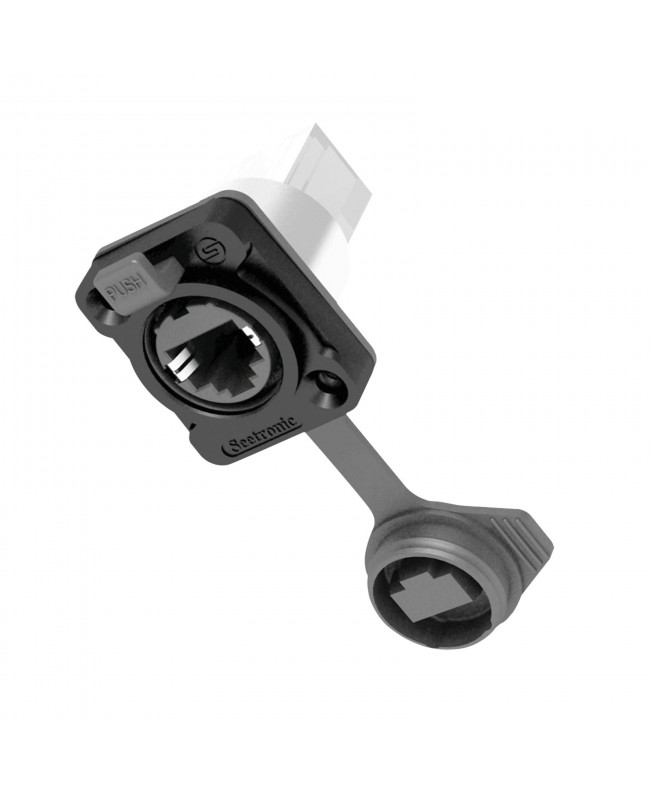

SEETRONIC RJ45 Chassis Feedthrough locking receptacle - IP65



This IP65-rated RJ45 chassis connector fits D-size holes and installs from the front. On the back, this feedthrough connector has an RJ45 socket that accepts an RJ45 connector. It is suitable for up to CAT5e-supported network speeds (1 Gigabit) and has a latch locking system on the front. It has a zinc diecast shell and uses gold-plated contacts.

  • Feedthrough type (RJ45 on front and back)
  • IP65
  • Up to 1 Gigabit network speed (Cat5e)
  • Gold-plated contacts
  • Mounts from the front
  • Length (mm): 43.55 mm
  • Height (mm): 35.5 mm
  • Width (mm): 60 mm
  • Weight: 0.01 kg
  • IP Rating: IP65 Front
  • Housing: Metal
  • Colour: Black
  • Contact Resistance: 10 mΩ
  • Locking Device: Latch
  • Contact Type: Gold plated
  • Shield Resistance: 0.5 Ω/km
  • Maximum Ambient Temperature: 80 °C
  • Minimum Ambient Temperature: -30 °C
  • Flashover Voltage: 50 V
  • PCB Mount: No

SE8FDYH60BNS

Data sheet

Miscellaneous
Suitable for outdoor use
Color
Black
Giorni di elaborazione
3

Specific References
