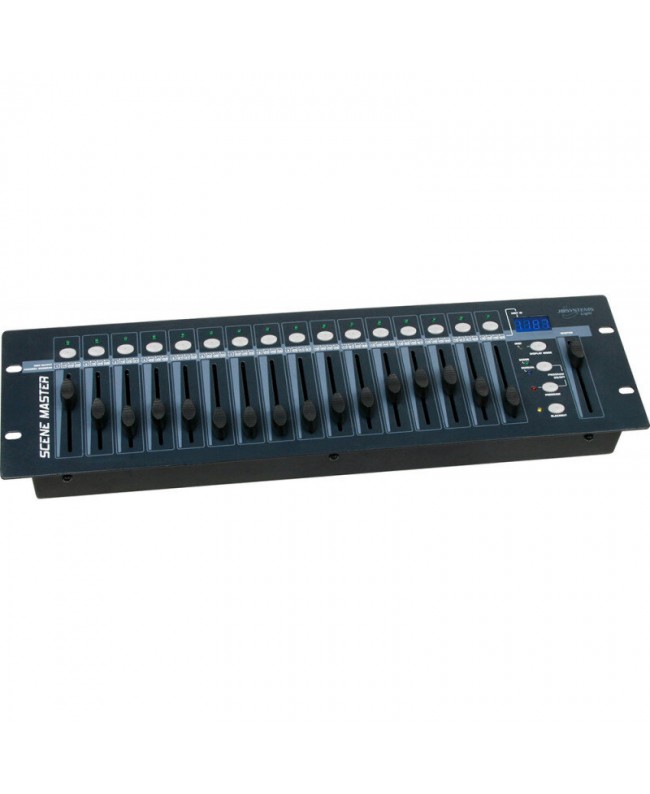

JB Systems SCM-1

Compact, simple and fast 16-channel DMX / MIDI controller for different applications: light control in shows, DJs, installations, architectural etc.

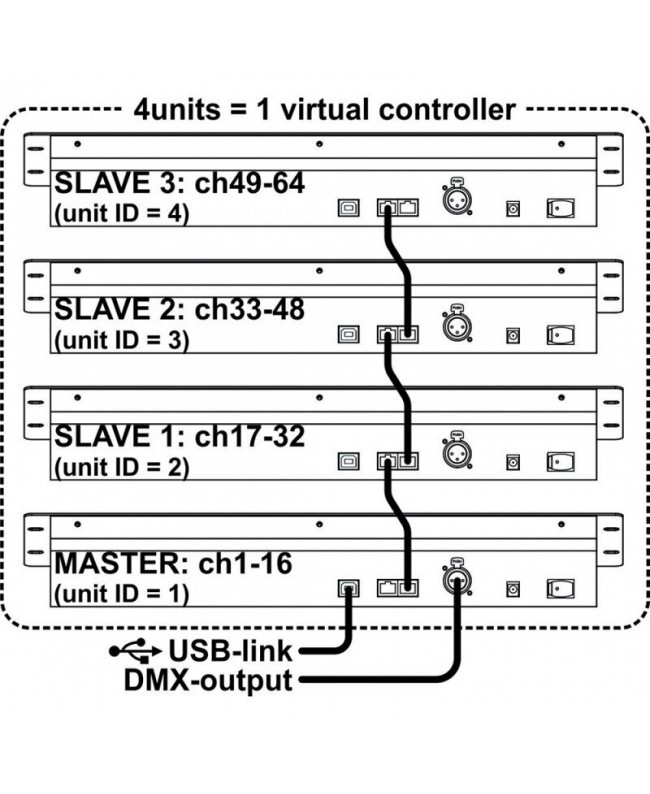

Up to 4 machines can be connected together to extend the simultaneously controllable channels up to 64.

Two operating modes:Dimmer mode: direct control of the intensity of 16 channels (expandable up to 64)Scene mode: direct control of 16 scenes, each containing a different setting of 16 channels

MIDI functionality (via USB port):MIDI OUT: each fader and button can send MIDI commands for direct control of compatible MIDI applications (Resolume, Arkaos, DMX-Creator, Daslight etc.)MIDI IN: all scenes can be controlled by an external MIDI controller or MIDI software (e.g. Cubase, Reaper etc.), perfect for shows with perfectly synchronized playback of audio and lights

The channel faders can be used to mix different scenes. The buttons above each fader can be used for:Dimmer mode: flash buttons, 100% intensity when pressed

Blackout function available, useful for turning off all the lights with a single button. The last setting is automatically reloaded when the machine is started without any operation required, very useful function for installations with daily use (exhibitions, pubs, shops etc.). 4-digit LED display to show the precise DMX or MIDI value.
