EUROLITE Set 2x LED PLL-480 CW/WW Panel + Case Flood & Cyclorama Lights
  • New

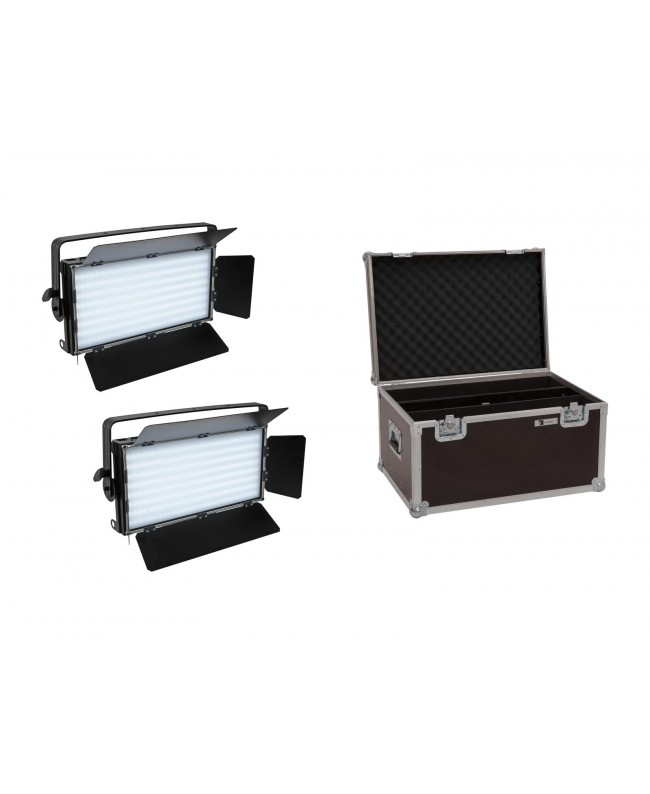

EUROLITE Set 2x LED PLL-480 CW/WW Panel + Case


€1,281.00
Tax included

2X DMX-controlled surface light with 240 cold white and 240 warm white LEDs incl. flightcase


Out of Stock

Free shipping


wishlist

EUROLITE Set 2x LED PLL-480 CW/WW Panel + Case

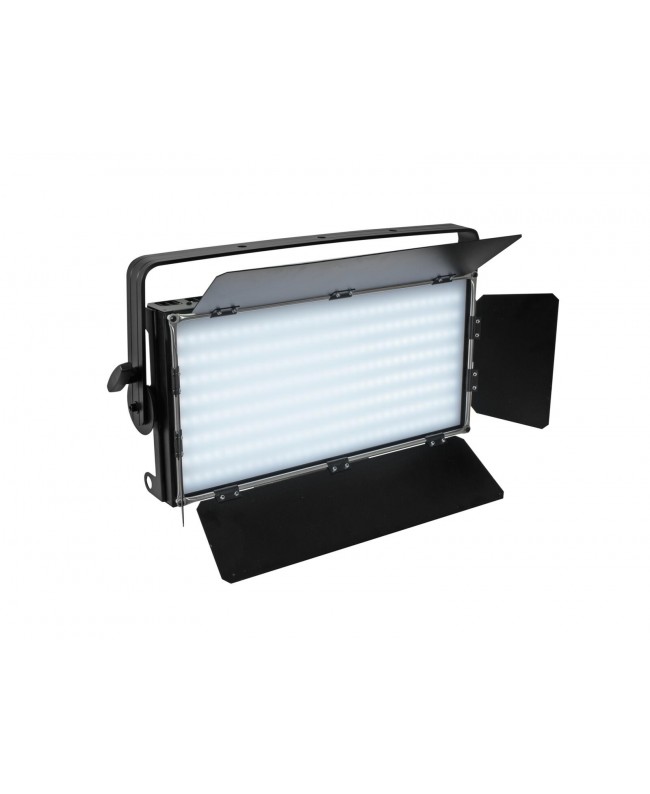

EUROLITE LED PLL-480 CW/WW PanelDMX controlled surface light with 240 cold white and 240 warm white LEDs- Energy-saving, durable and environmentally friendly

  • Frost filter provides a soft, homogeneous light
  • 4 Barn doors to avoid blinding the audience and for protection during transport
  • Stand or truss installation
  • Slim, rugged metal housing
  • 480 LEDs 0.5 W SMD 2835 CW/WW (homogenous color mix)
  • Dimmer electronic; Dimmer speed (step response) adjustable

Strobe effect

The device is cooled by passive convection cooling

  • Control via DMX; master/slave function
  • Preprogrammed in Light´J; Light Captain

Flicker-free

  • With a beam angle of 120°
  • Variable color temperature 3200 K - 5600 K
  • Very high color rendering index (CRI)
  • With mounting bracket
  • LCD display
  • Rugged carrying handle

Mains input and output for power linking up to 8 units For application areas such as: Stage; wedding/gala/events; Trade fair and shop fitting; theater; rental; video and photography

  • Silent operation
  • Application possibility: Suspended; on stand

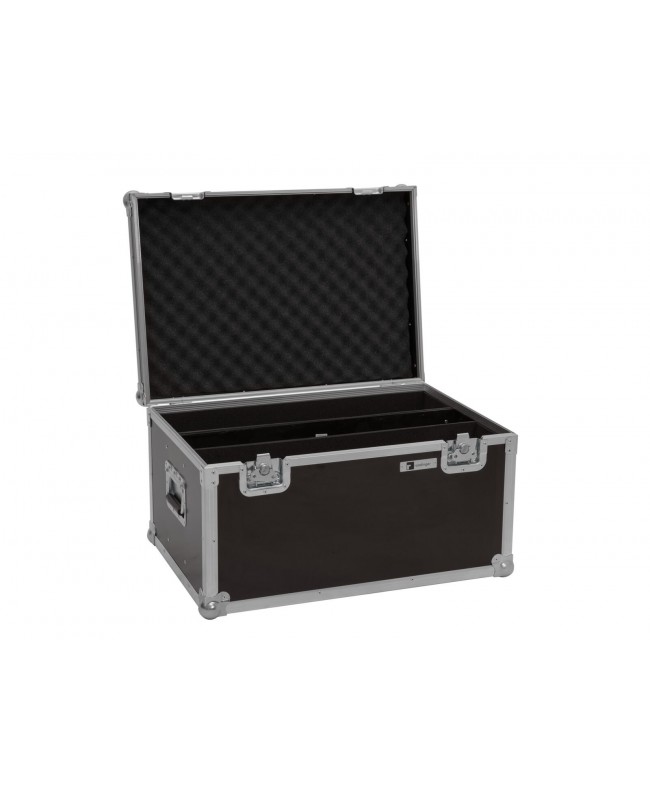

  • ROADINGER Flightcase 2x LED PLL-480- High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
  • Branded hardware
  • Scope of delivery
  • 2 X EUROLITE LED PLL-480 CW/WW Panel- 1 x spotlight
  • 1 X user manual
  • 1 X power cord
  • 1 X plug (male)
  • Weight: 37.50 kg
  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: 205 W
  • IP classification: IP20
  • Protection class: Protection class I
  • Power connection: Via P-Con (blue), mounting version power supply cord with safety plug (provided)
  • Power output: P-Con (gray), mounting version
  • Lamp type: LED lamp
  • LED type: 480 X 0.5 W SMD 2835 CW/WW (homogenous color mix)
  • Flash rate: 3.5 - 28 Hz
  • DMX channels: 5
  • DMX input: 3-Pin XLR (M) mounting version
  • DMX output: 3-Pin XLR (F) mounting version
  • Cooling: Passive convection cooling
  • Control: DMX; master/slave function
  • Preprogrammed in: Light´J; Light Captain
  • Projection: Flicker-free
  • PWM frequency: 47000 Hz
  • Beam angle: 120°
  • Beam angle (1/2 peak): 120°
  • Color temperature: 3200K - 5600K adjustable
  • Color rendering index (CRI): 96 Ra
  • Illuminance in Lux (lx): Cold white (CW) 1 m: 3048 lx, 3 m: 394 lx, 6 m: 116 lx, Warm white (WW) 1 m: 2697 lx, 3 m: 375 lx, 6 m: 111 lx, All 1 m: 6147 lx, 3 m: 764 lx, 6 m: 224 lx
  • Lamp life: 50000 H
  • Luminous flux: 17470 Lm
  • Housing color: Black matte
  • Attachment system: Mounting bracket
  • Display type: LCD display
  • Carrying handle: 1 Pc/pcs
  • Material: Metal
  • Dimensions: Width: 64 cm, Depth: 12,5 cm, Height: 33 cm
  • Weight: 12.60 kg
  • Noise classification: Class 0 (no noise at all)
  • Energy efficiency class (A - G): F
  • EPREL-Nr: 1066973
  • Diameter mounting holes: 3 X Ø12 mm
  • Material: Metal, 3 mm
  • Cable construction: 3 X 1.5 mm² H05VV-F
  • Cable length: Approx. 1.2 m
  • Maximum load: 50 kg
  • Use of brands: Branded hardware
  • Material: Birch multiplex, 7 mm
  • Color: Dark brown, laminated
  • Inside dimensions: 64 cm x 38.5 cm x 29 cm
  • Device compartment: 64 cm x 14 cm x 29 cm
  • Accessory compartment: 64 cm x 10.5 cm x 29 cm
  • Dimensions: Length: 70 cm, Width: 47 cm, Height: 39 cm
  • Weight: 12.30 kg

20000676
