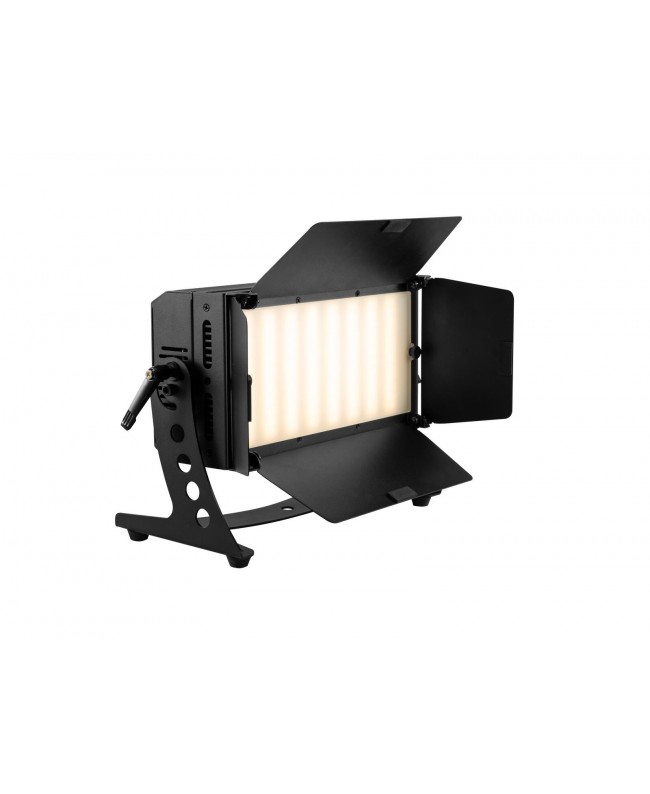

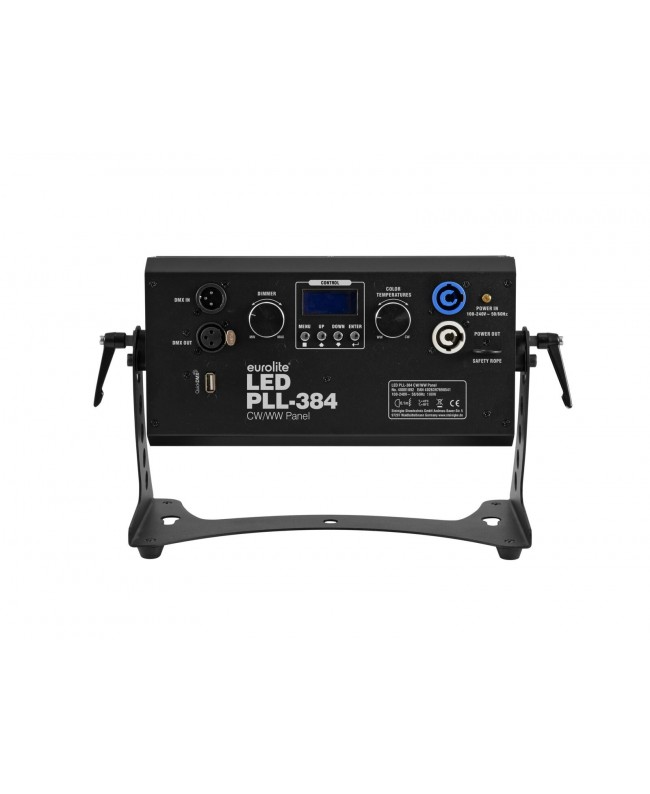

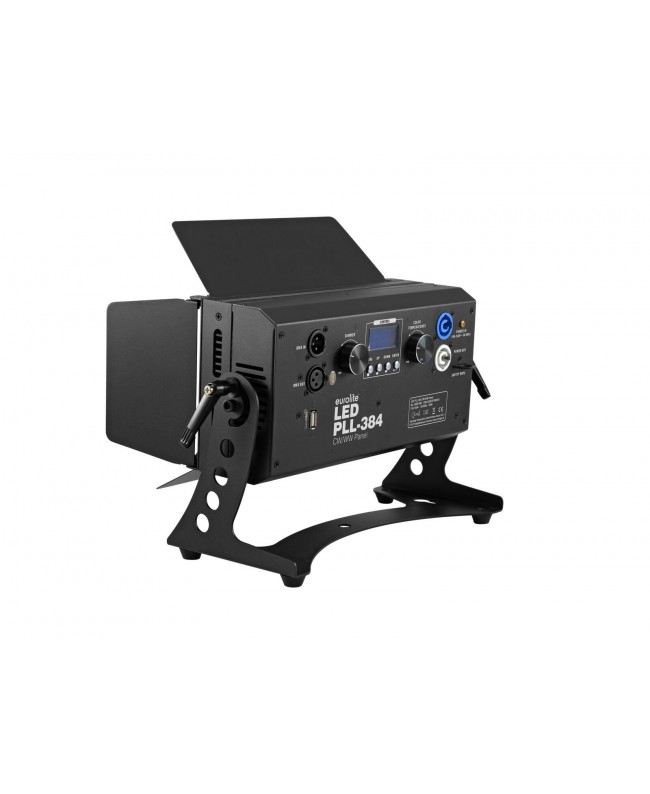

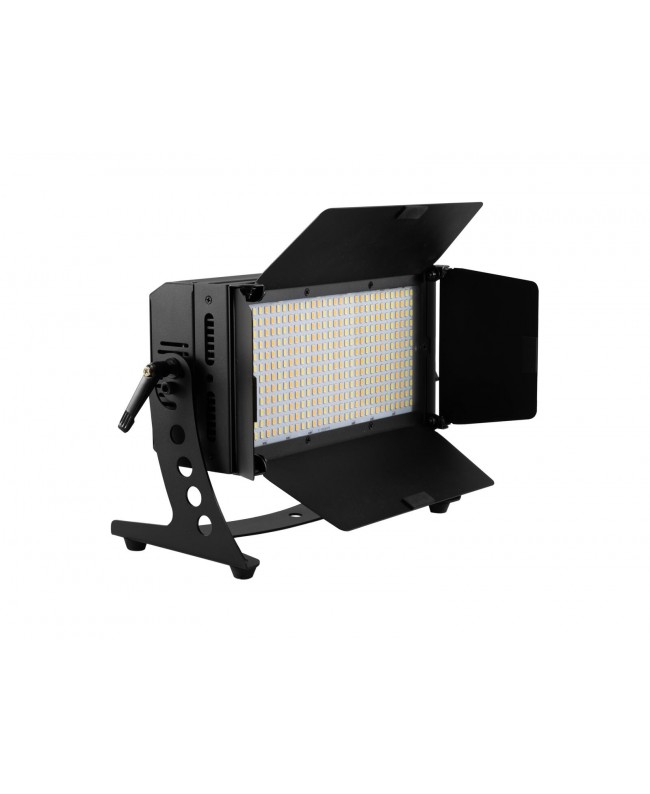

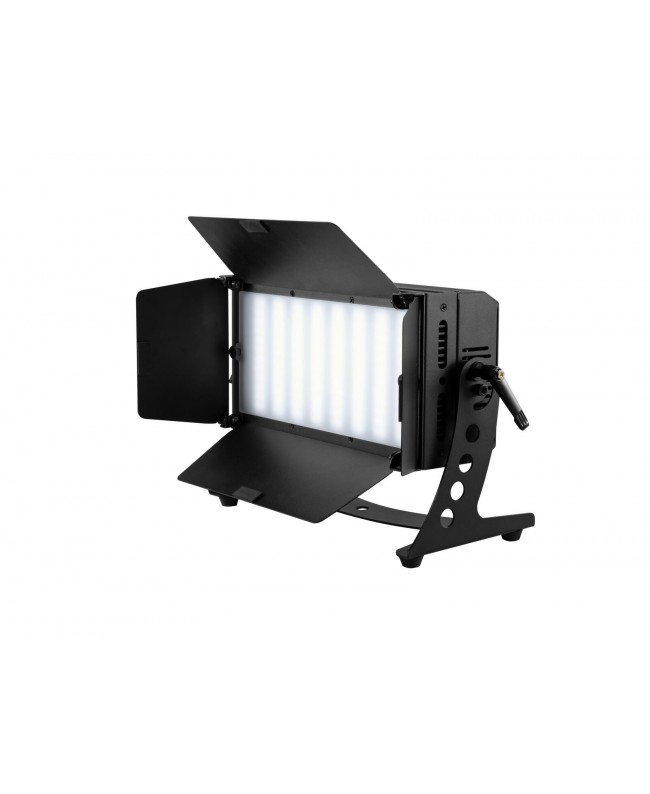

EUROLITE LED PLL-384 CW/WW Panel


€292.00
Tax included

DMX-controlled surface light with 384 dual white LEDs, QuickDMX port, frost filter and barn doors


Qty

In Stock

Delivery

Do You want Your order by Wednesday, 25/02/2026? Order within 3 hours and 17 minutes

Free shipping


wishlist

EUROLITE LED PLL-384 CW/WW Panel



  • Energy-saving, durable and environmentally friendly
  • Additional frost filter provides a wide, soft and homogeneous light
  • 4 Barn doors to avoid blinding the audience and for protection during transport
  • 192 LEDs 0.5 W SMD 5730 cold white (CW)
  • 192 LEDs 0.5 W SMD 5730 warm white (WW)
  • Dimmer electronic

The device is cooled by temperature-controlled fan Control via quick select potentiometer for brightness and color temperature; DMX; master/slave function; stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional) Preprogrammed in Light Captain; Colorchief

Flicker-free

  • With a beam angle of 120°
  • Variable color temperature 2700 K - 5700 K
  • Direct color temperature selection for 69 preset values
  • Very high color rendering index (CRI)
  • With mounting bracket
  • LCD display

Rubber feet

Mains input and output for power linking up to 8 units For application areas such as: Stage; decoration; wedding/gala/events; Trade fair and shop fitting; theater; rental; video and photography

  • Very quiet working noise
  • Application possibility: Suspended; on stand
  • Scope of delivery
  • 1 X spotlight
  • 1 X power cord
  • 1 X frost filter
  • 2 X knurled screw
  • 1 X user manual
  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: 100 W
  • IP classification: IP20
  • Protection class: Protection class I
  • Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug
  • Power output: P-Con (gray), mounting version
  • Fuse: T 3.15 A fuse fix in power supply
  • Lamp type: LED lamp
  • LED type: 192 X 0.5 W SMD 5730 cold white (CW), 192 x 0.5 W SMD 5730 warm white (WW)
  • Flash rate: 1 - 28 Hz
  • DMX channels: 2-1; 2-2; 3-1; 3-2; 4
  • DMX input: 3-Pin XLR (M) mounting version
  • DMX output: 3-Pin XLR (F) mounting version
  • Cooling: Temperature-controlled fan
  • Control: Quick select potentiometer for brightness and color temperature; DMX; master/slave function; stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
  • Preprogrammed in: Light Captain; Colorchief
  • Projection: Flicker-free
  • PWM frequency: 4200 Hz
  • Beam angle: 120°
  • Beam angle (1/2 peak): 120°
  • Color temperature: 2700K - 5700K adjustable
  • Color rendering index (CRI): 94 Ra
  • Illuminance in Lux (lx): Wide cold white (CW) 1 m: 2324 lx, 3 m: 276 lx, 6 m: 83 lx, Wide warm white (WW) 1 m: 2277 lx, 3 m: 249 lx, 6 m: 76 lx, Wide all 1 m: 3530 lx, 3 m: 407 lx, 6 m: 124 lx, Narrow cold white (CW) 1 m: 2789 lx, 3 m: 327 lx, 6 m: 98 lx, Narrow warm white (WW) 1 m: 2542 lx, 3 m: 297 lx, 6 m: 94 lx, Narrow all 1 m: 4167 lx, 3 m: 508 lx, 6 m: 150 lx
  • Housing color: Black
  • Attachment system: Mounting bracket
  • Display type: LCD display
  • Transport aid: Rubber feet
  • Material: Metal
  • Dimensions: Length: 34.7 cm, Width: 13.8 cm, Height: 21.1 cm
  • Weight: 3.52 kg
  • Noise classification: Class 1 (very slight noise, suitable for noise-sensitive environments)
  • Diameter mounting holes: 1 X Ø11 mm; 2 x Ø8 mm; 8 x Ø15 mm
  • Material: Metal, 2 mm
  • Cable construction: 3 X 1.0 mm² H05VV-F
  • Cable length: Approx. 1.2 m
  • Special product: Not designed for household room illumination
  • Intended use: Show effect lighting
