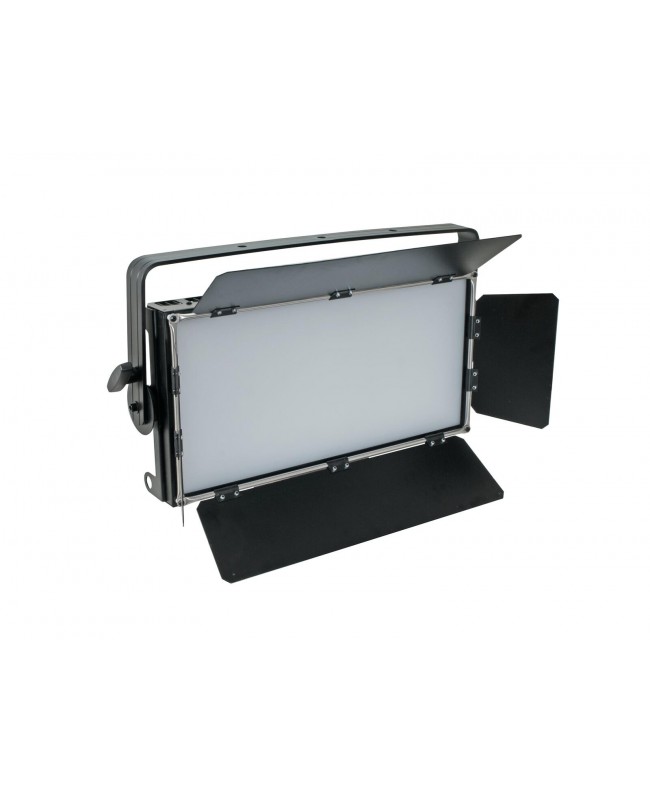

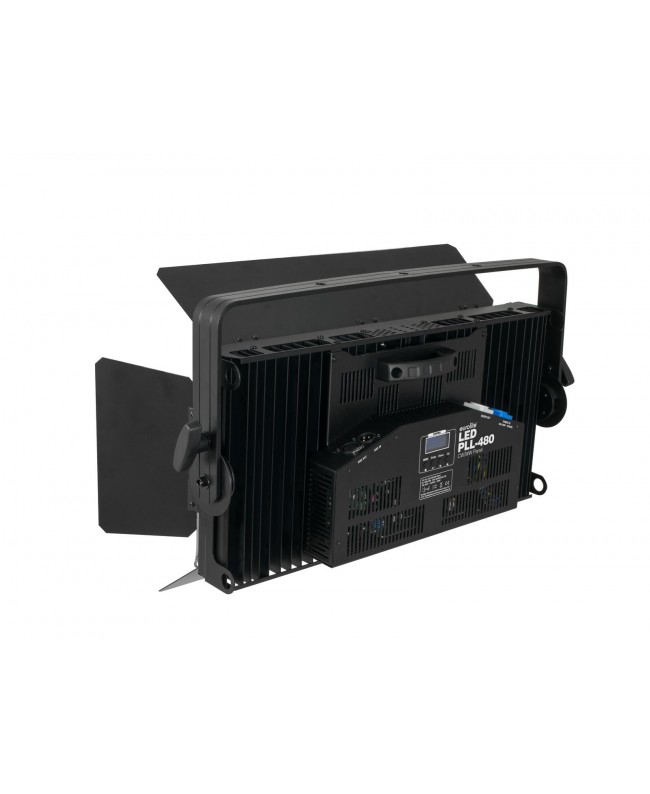

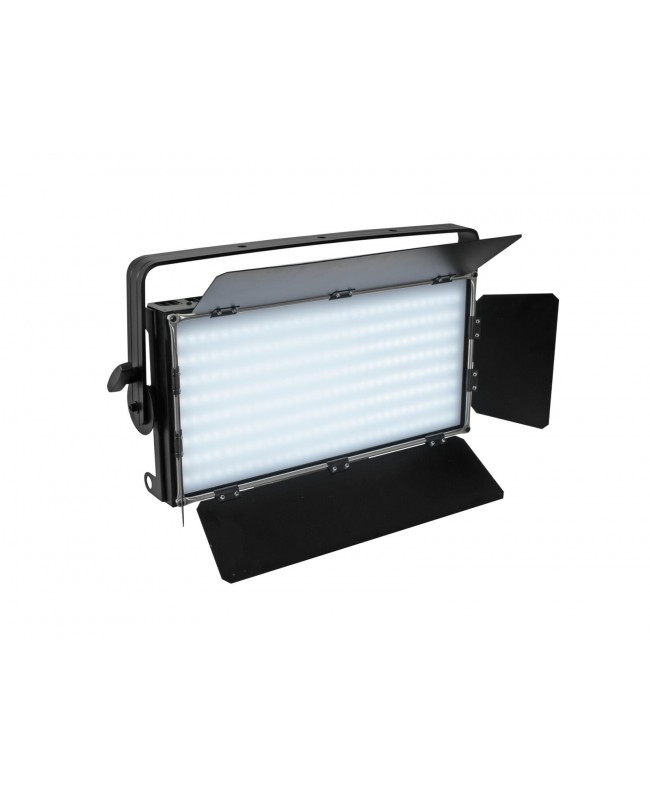

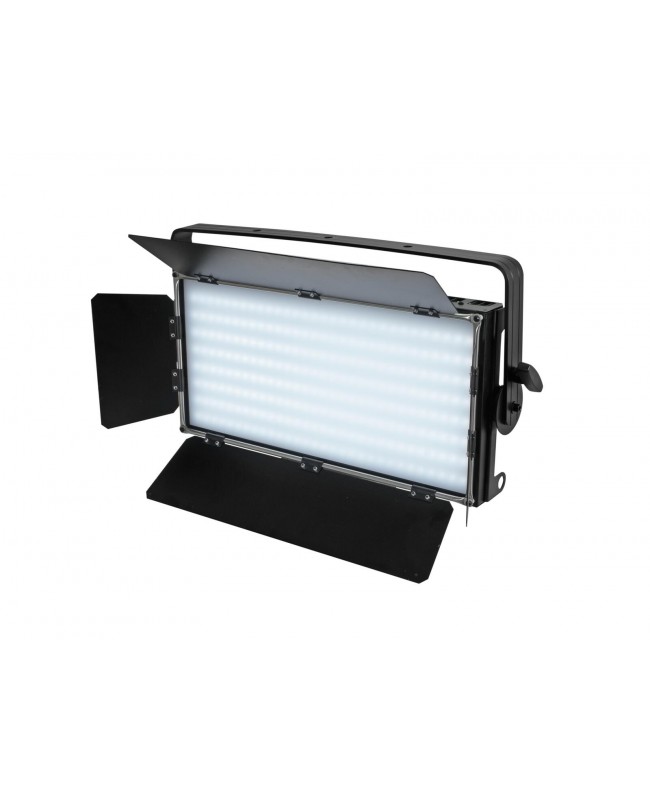

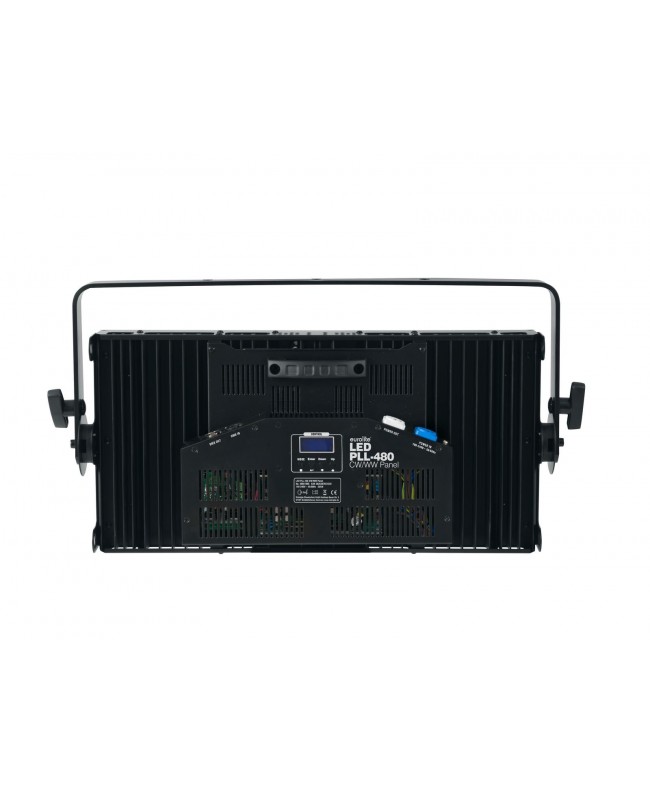

Eurolite LED PLL-480 CW/WW Panel
  • -25%
  • New

Eurolite LED PLL-480 CW/WW Panel

€669.00
€503.00 -25%
Tax included
Lowest price within the last 30 days: €503.00

DMX controlled surface light with 240 cold white and 240 warm white LEDs

Qty

In Stock

Delivery

Do You want Your order by Tuesday, 04/08/2026? Order within 12 hours and 46 minutes

Free shipping

Compare

wishlist

Eurolite LED PLL-480 CW/WW Panel



  • Frost filter provides a soft, homogeneous light
  • 4 barn doors to avoid blinding the audience and for protection during transport
  • With a beam angle of 120°
  • Variable color temperature 3200 K - 5600 K
  • Very high color rendering index (CRI)
  • Silent operation
  • Flicker-free
  • Control via DMX; master/slave function
  • Stand or truss installation
  • Slim, rugged metal housing
  • Dimmer electronic; Dimmer speed (step response) adjustable
  • Strobe effect
  • With mounting bracket
  • Rugged carrying handle
  • Mains input and output for power linking up to 8 units
  • Energy-saving, durable and environmentally friendly
  • For application areas such as: Stage; wedding/gala/events; Trade fair and shop fitting; theater; rental; video and photography
  • Application possibility: Suspended; on stand
  • Can be operated in 5 CH mode
  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: 205 W
  • Protection class: Protection class I
  • Power connection: Via P-Con (blue), mounting version power supply cord with safety plug (provided)
  • Power output: P-Con (gray), mounting version
  • Lamp type: LED lamp
  • LED type: 480 x 0.5 W SMD 2835 CW/WW (homogenous color mix)
  • Flash rate: 3.5 - 28 Hz
  • DMX channels: 5
  • DMX input: 3-pin XLR (M) mounting version
  • DMX output: 3-pin XLR (F) mounting version
  • Cooling: Passive convection cooling
  • Control: DMX; master/slave function
  • Fixtures available for: Light'J; Light Captain
  • Projection: Flicker-free
  • PWM frequency: 47000 Hz
  • Beam angle: 120°
  • Beam angle (1/2 peak): 120°
  • Color temperature: 3200K - 5600K adjustable
  • Color rendering index (CRI): 96 Ra
  • Illuminance in Lux (lx): Cold white (CW) 1m: 3048 lx, 3m: 394 lx, 6m: 116 lx, Warm white (WW) 1m: 2697 lx, 3m: 375 lx, 6m: 111 lx, All 1m: 6147 lx, 3m: 764 lx, 6m: 224 lx
  • Lamp life: 50000 h
  • Luminous flux: 17470 lm
  • Housing color: Black matte
  • Attachment system: Mounting bracket
  • Display type: LCD display
  • Carrying handle: 1 pc/pcs
  • Material: Metal
  • Dimensions: Width: 64 cm, Depth: 12.5 cm, Height: 33 cm
  • Weight: 12.60 kg
  • Noise classification: Class 0 (no noise at all)
  • Energy efficiency class (A - G): F
  • EPREL-Nr: 1066973
  • Diameter mounting holes: 3 x Ø12mm
  • Material: Metal, 3 mm
  • Cable construction: 3 x 1.5 mm² H05VV-F
  • Cable length: Approx. 1.2 m

Scope of delivery

  • 1 x spotlight
  • 1 x user manual
  • 1 x power cord
  • 1 x plug (male)

40001895

Data sheet

Length
1.20 m
Color
Black
